TS Terminal Circuit

By connecting terminals Ts and E1 of the DLC1, an input signal check can be performed.
Input Signal Check (Test Mode Check)

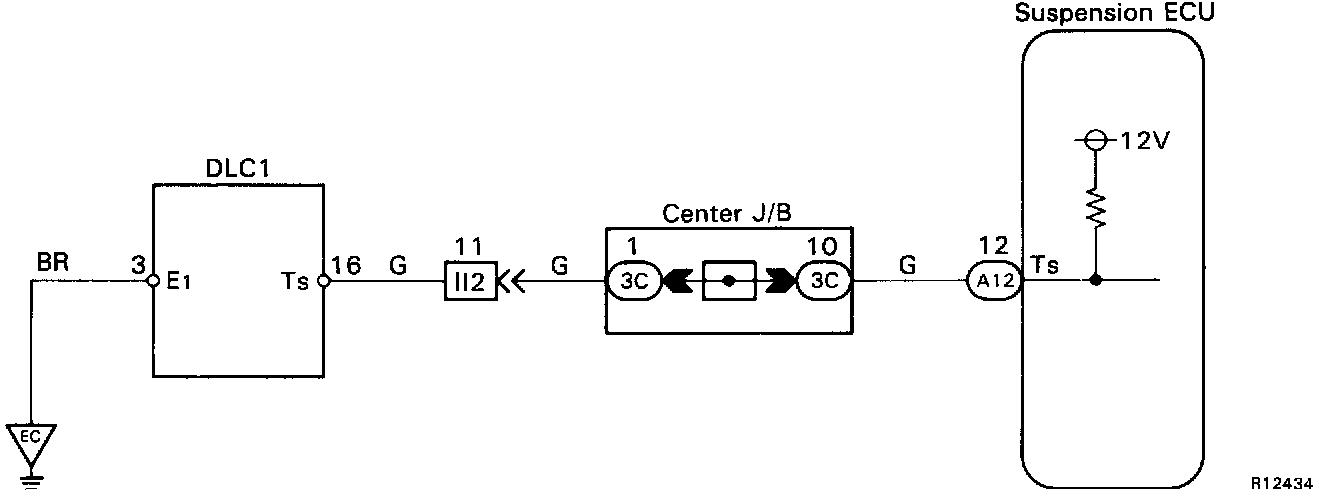

Wiring Diagram:

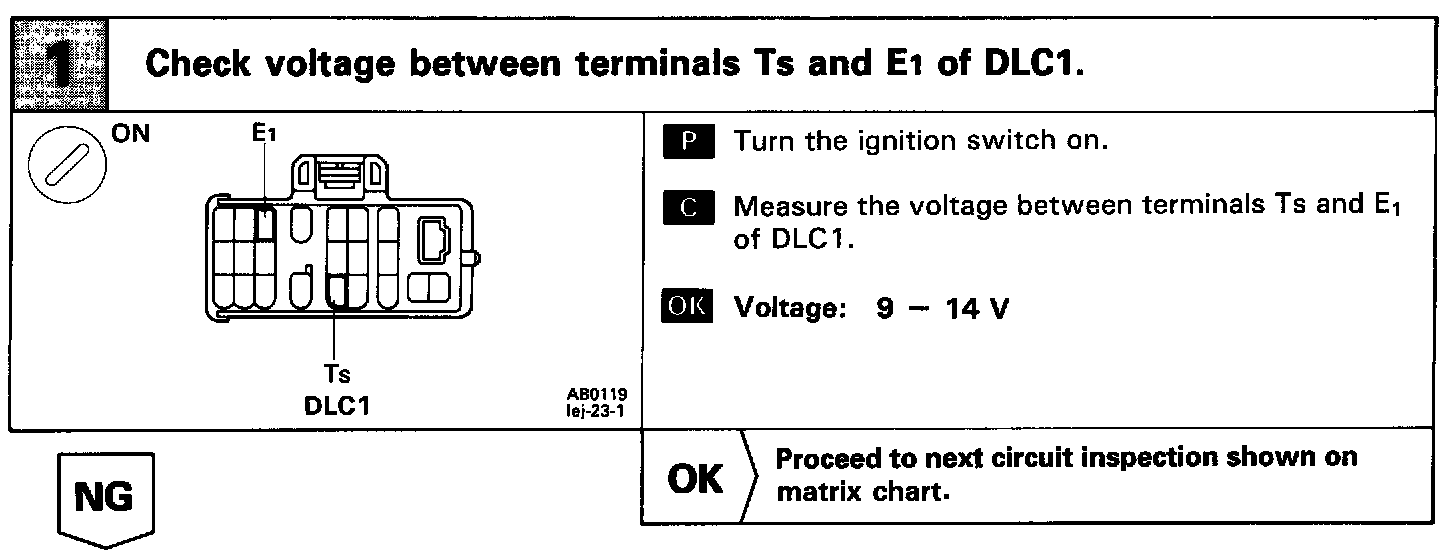

Inspection Procedure - Step 1:

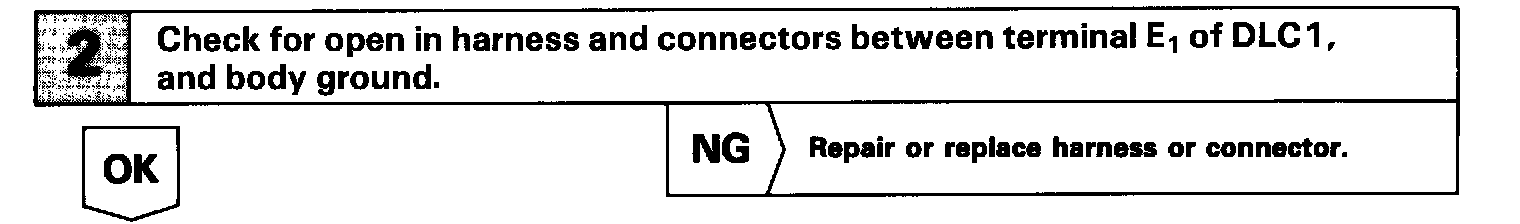

Step 2:

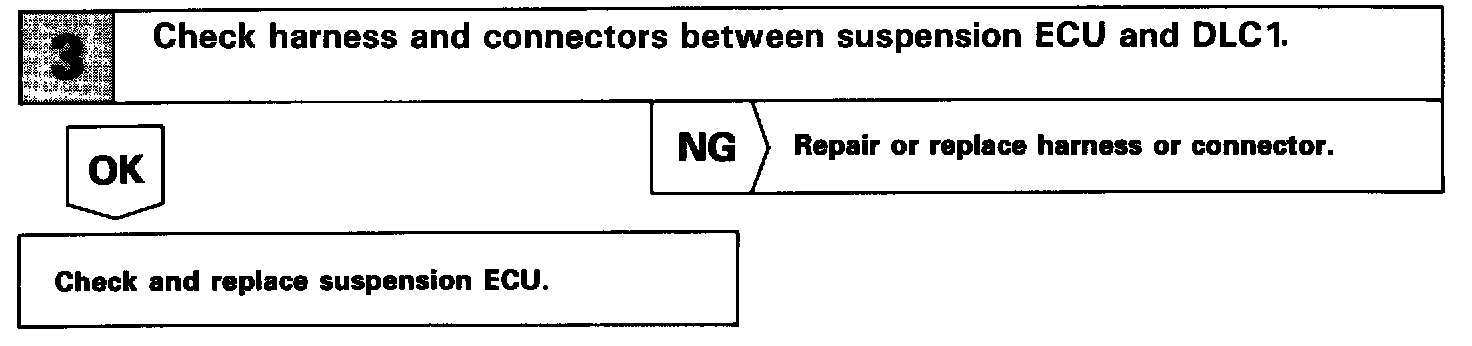

Step 3:
