TC Terminal Circuit

By connecting terminals Tc and E1 of the DLC1 or DLC2, the diagnostic codes stored in the ECU memory can be displayed by the height control indicator light.

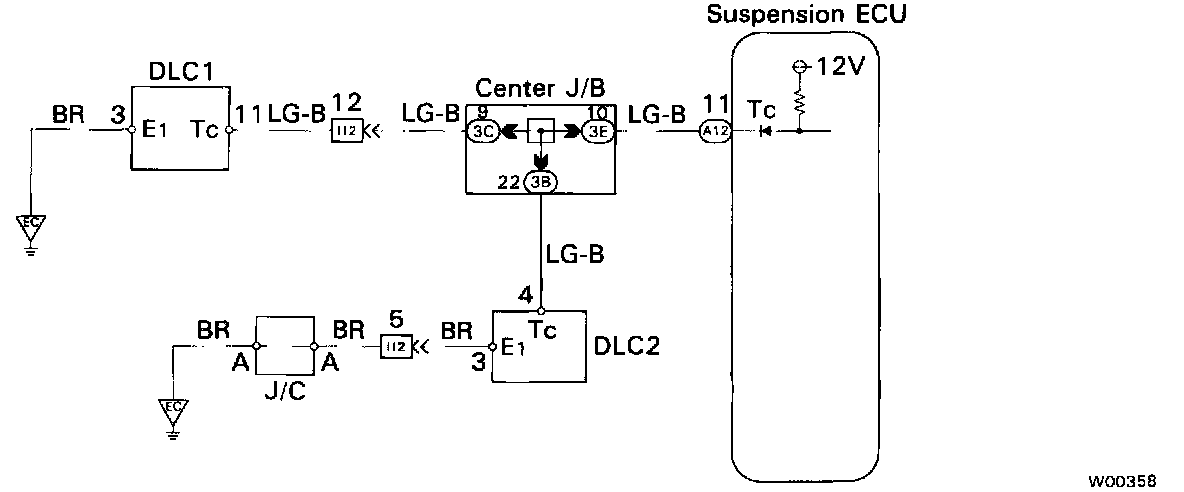

Wiring Diagram:

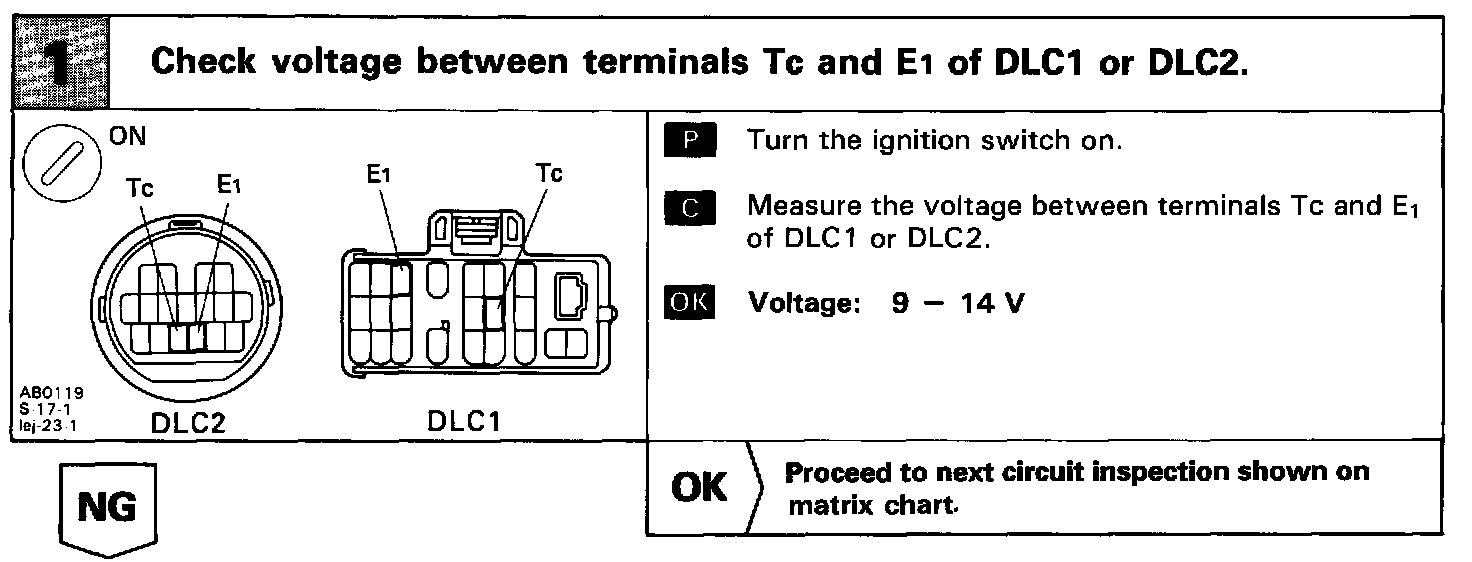

Inspection Procedure - Step 1:

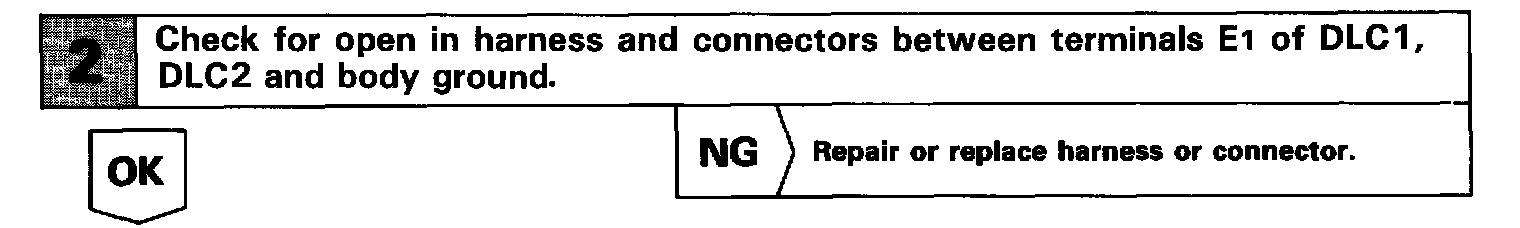

Step 2:

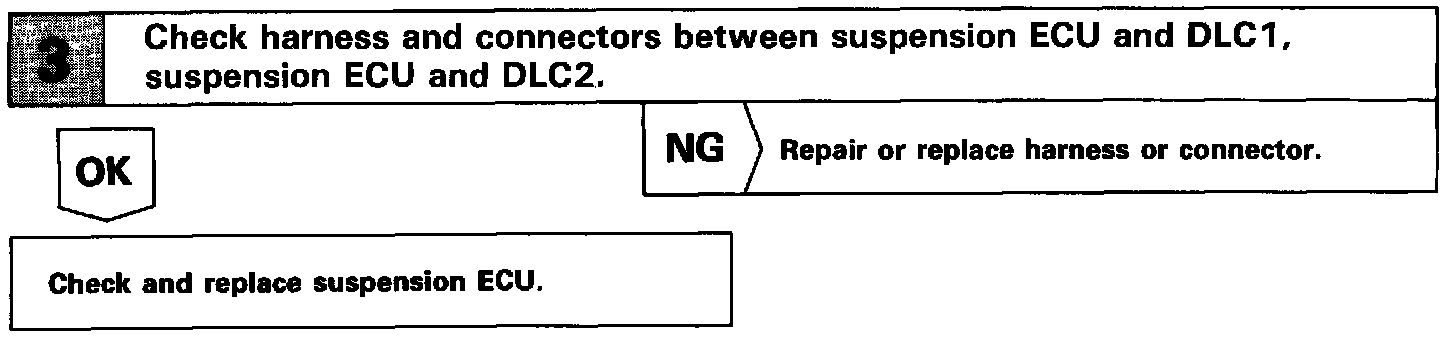

Step 3:
