Indicator Light Check

1. Turn ignition switch on.

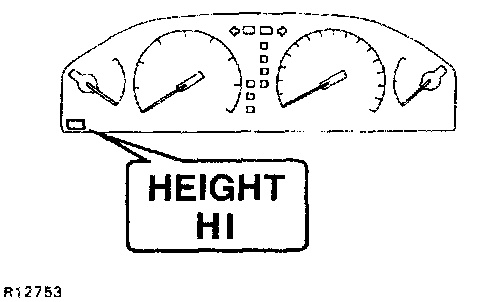

2. Check that height control indicator lights come on immediately.

HINT:
- When the height control switch is pressed to the "HIGH" side, the height control indicator light continues to light up.
- When the height control indicator light flashes at 1 second intervals, it indicates that the ECU stores the malfunction codes in memory.

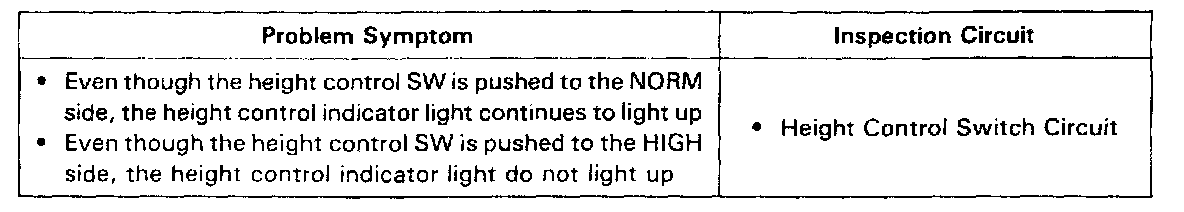

- If the following troubles occur in the indicator light check, proceed to check the corresponding circuit and carry out troubleshooting.
