Front

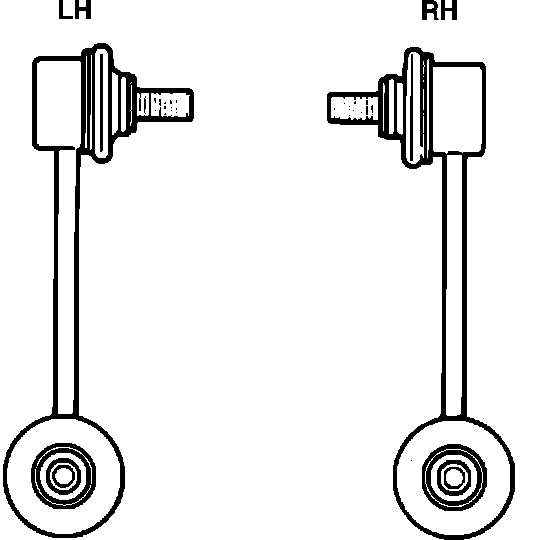

Fig. 22 Identifying Stabilizer Bar Links:

1. Remove steering knuckle with axle hub.
2. On models less air suspension, remove shock absorber.
3. On models with air suspension, remove pneumatic cylinder.
4. Remove right and left stabilizer bar links.
5. Remove shock absorber lower mounting bracket.
6. Disconnect strut bar nuts from lower arm.
7. Remove strut bar cushion nuts.
8. Remove strut bar with cushion.
9. Remove right and left stabilizer bar bushings.
10. Remove strut bar bracket with the stabilizer bar.
11. Reverse procedure to install, installing right and left stabilizer bar links in their proper positions, Fig. 22.
