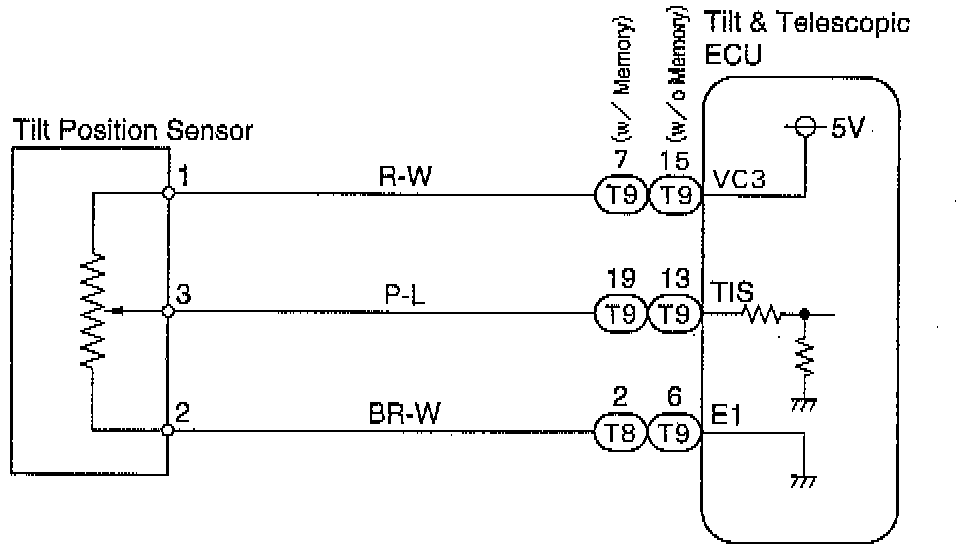

Tilt Position Sensor Circuit

CIRCUIT DESCRIPTION:

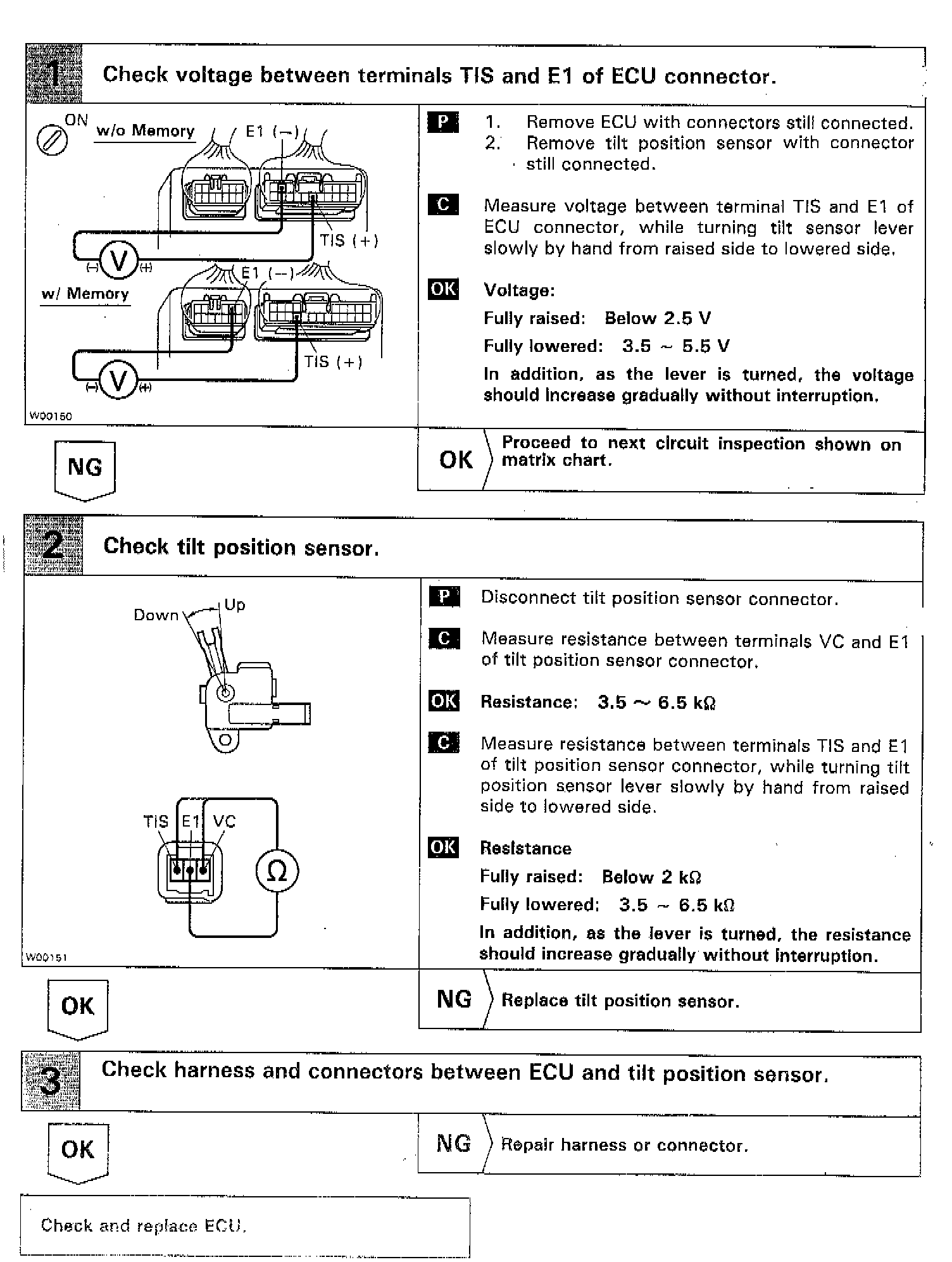

The tilt position is sent to the ECU as a voltage signal from the tilt position sensor. A constant 5 V is supplied to terminal 1 (VC) of the tilt position sensor. The voltage at terminal 3 (TIS) varies with position and is input to the ECU. Symptom Related Diagnostic Procedures
