Telescopic Position Sensor Circuit

CIRCUIT DESCRIPTION:

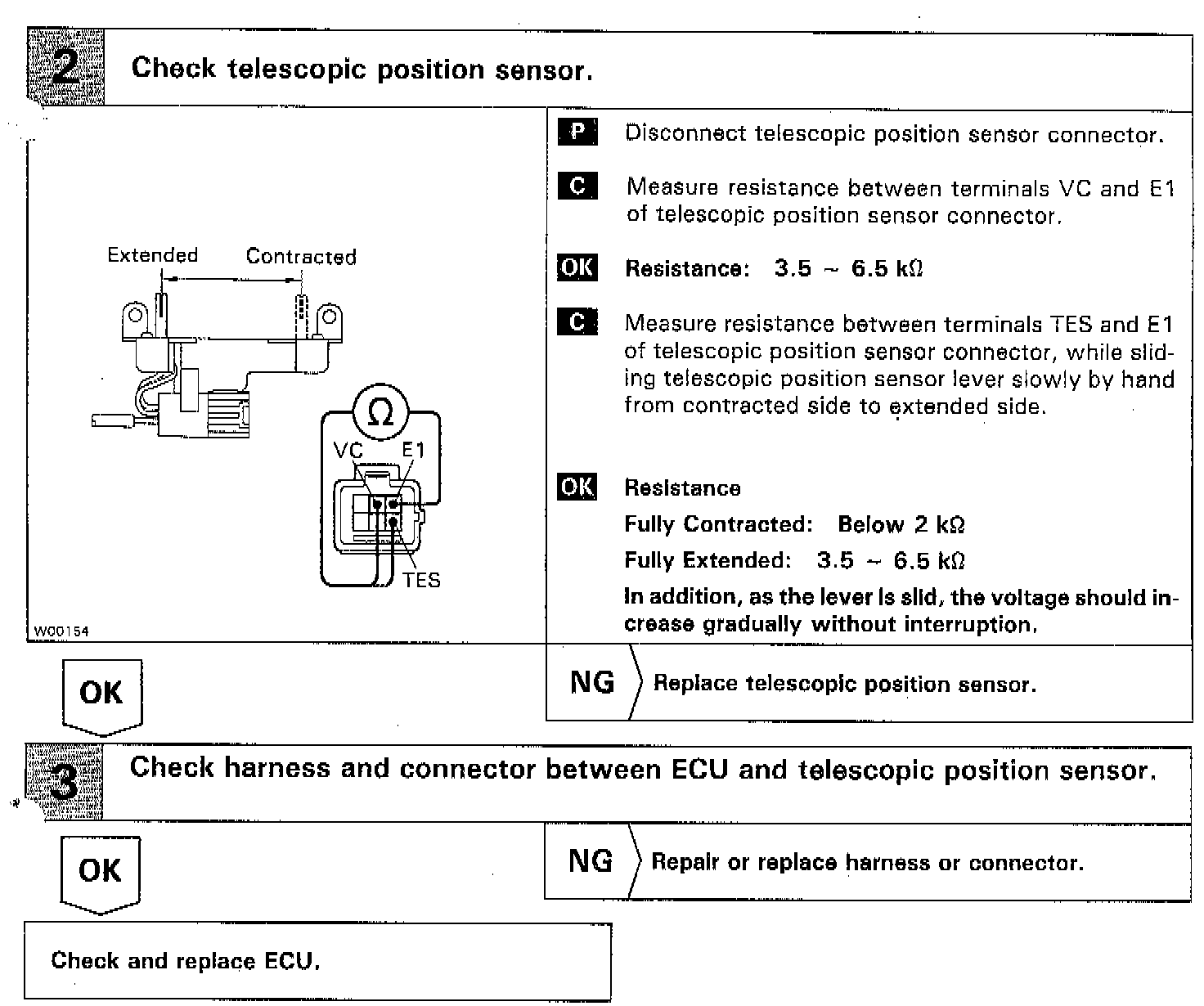

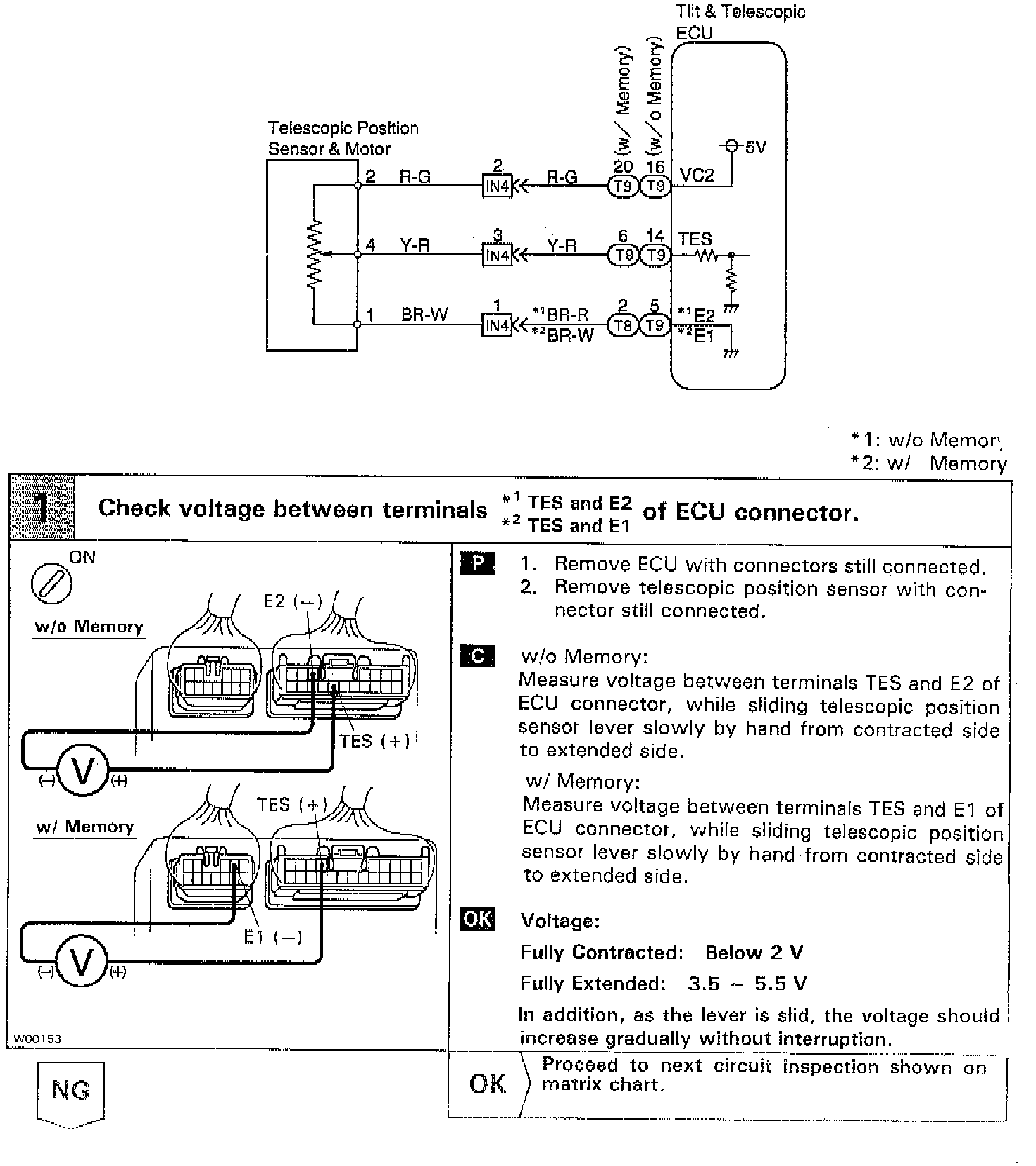

The telescopic position is sent to the ECU as a voltage signal from the telescopic position sensor. A constant 5 V is supplied to terminal 2 (VC) of the telescopic position sensor. The voltage at terminal 4 (TES) varies with position and is input to the ECU. Symptom Related Diagnostic Procedures
