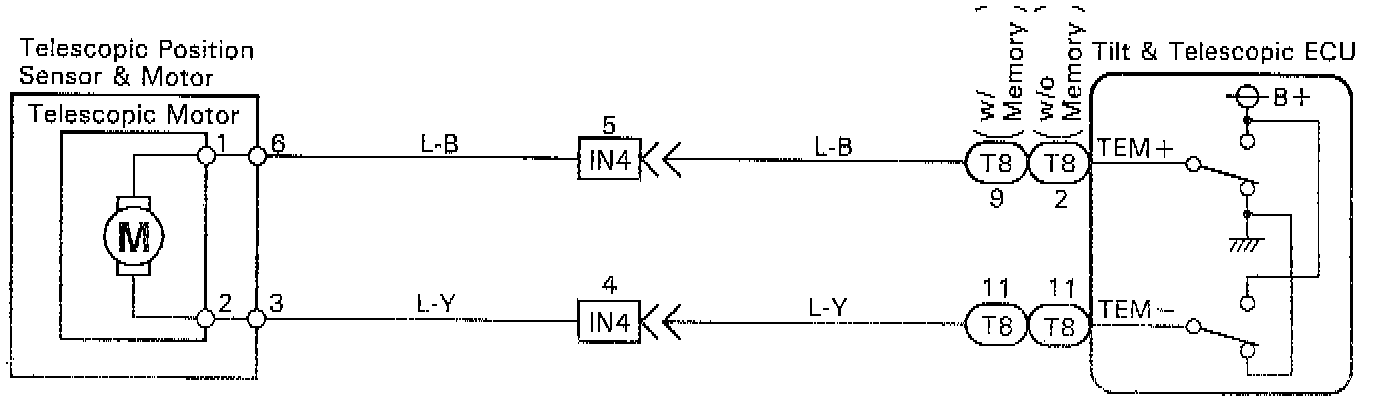

Telescopic Motor Circuit

CIRCUIT DESCRIPTION:

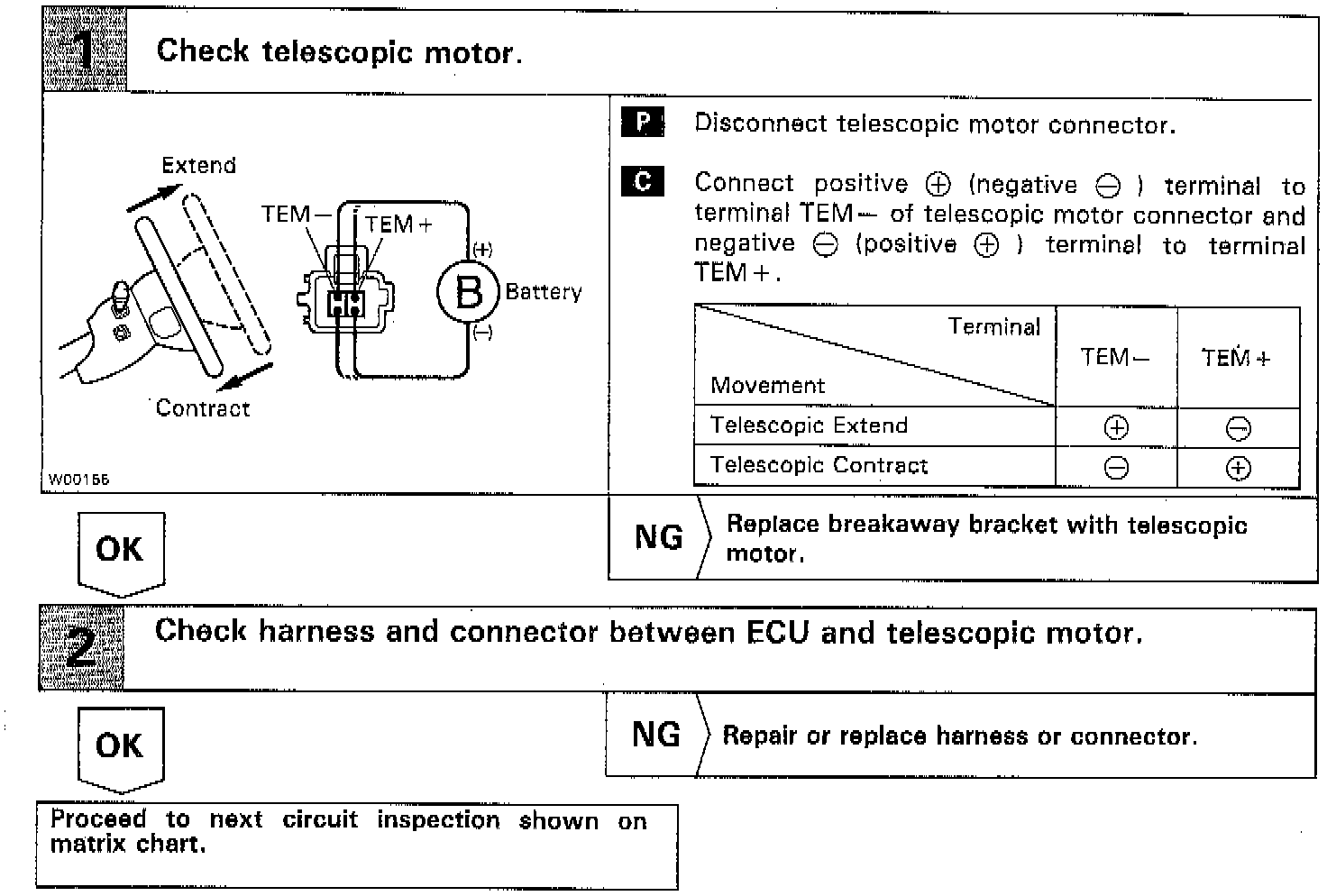

The ECU provides both +B and ground for the telescopic motor. Reversing polarity of the applied voltage reverses the motor. Symptom Related Diagnostic Procedures
