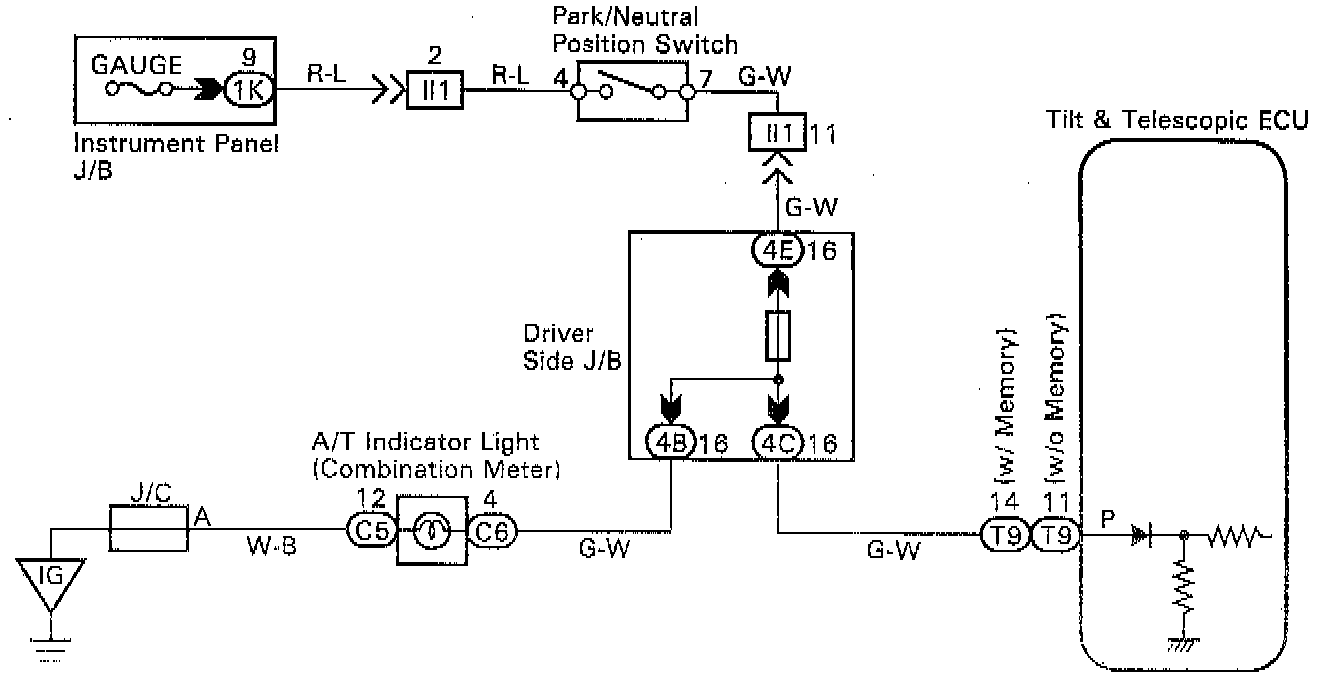

Park/Neutral Position Switch Circuit (A/T)
CIRCUIT DESCRIPTION:
The park/neutral position switch detects whether the shift position is in P position or in another position, and sends a signal to the ECU. Symptom Related Diagnostic Procedures
CIRCUIT DESCRIPTION:
The park/neutral position switch detects whether the shift position is in P position or in another position, and sends a signal to the ECU. Symptom Related Diagnostic Procedures
