Manual Switch Circuit

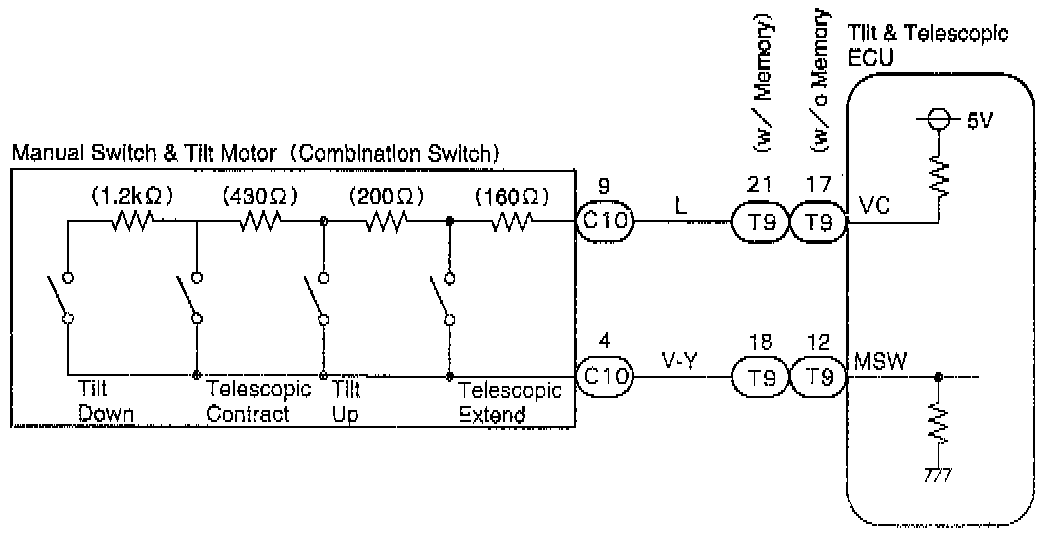

CIRCUIT DESCRIPTION:

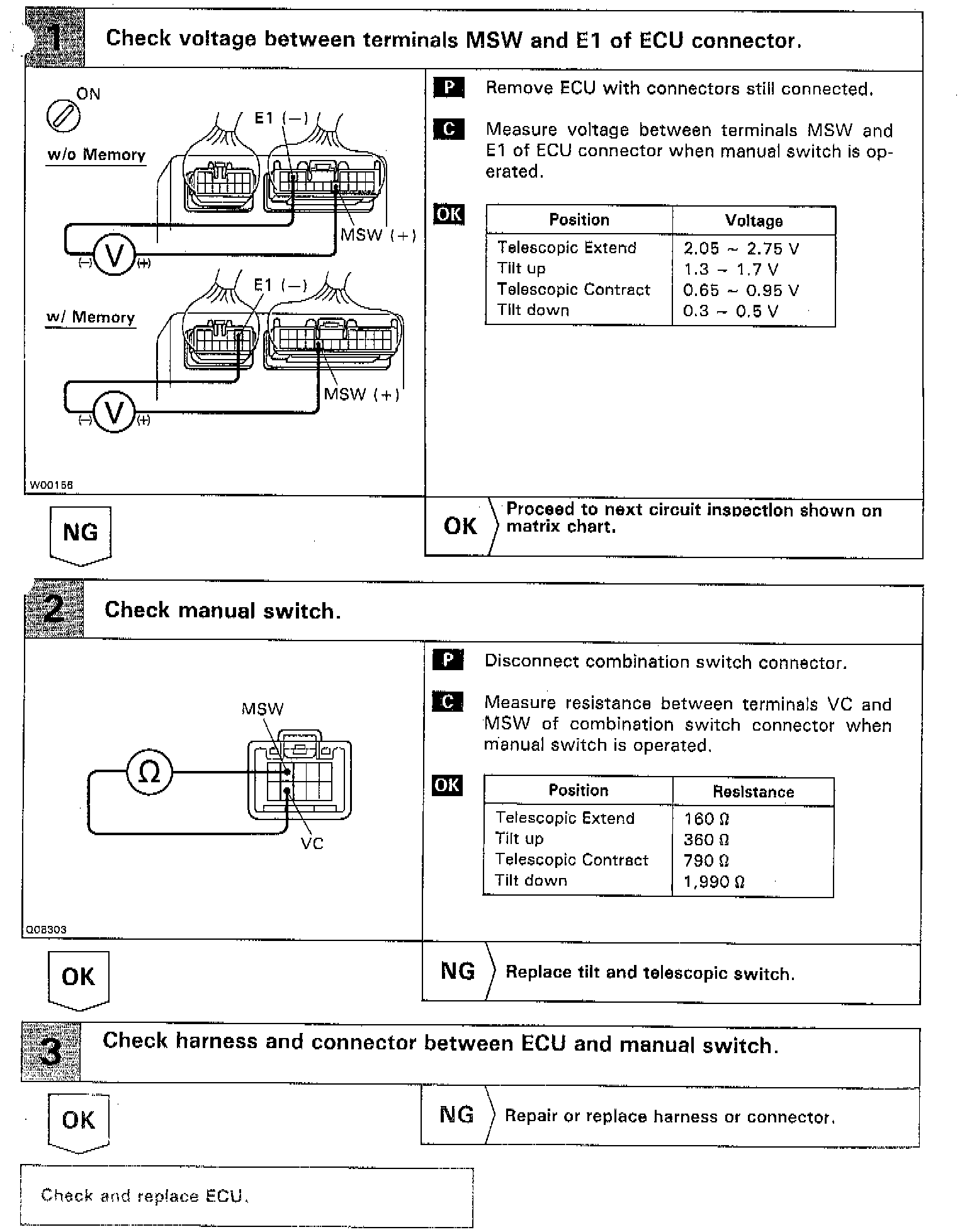

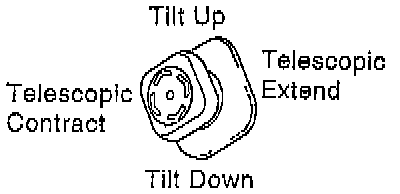

Operation of the switch sends different voltage signals to the ECU. Symptom Related Diagnostic Procedures
