Key Unlock Warning Switch Circuit

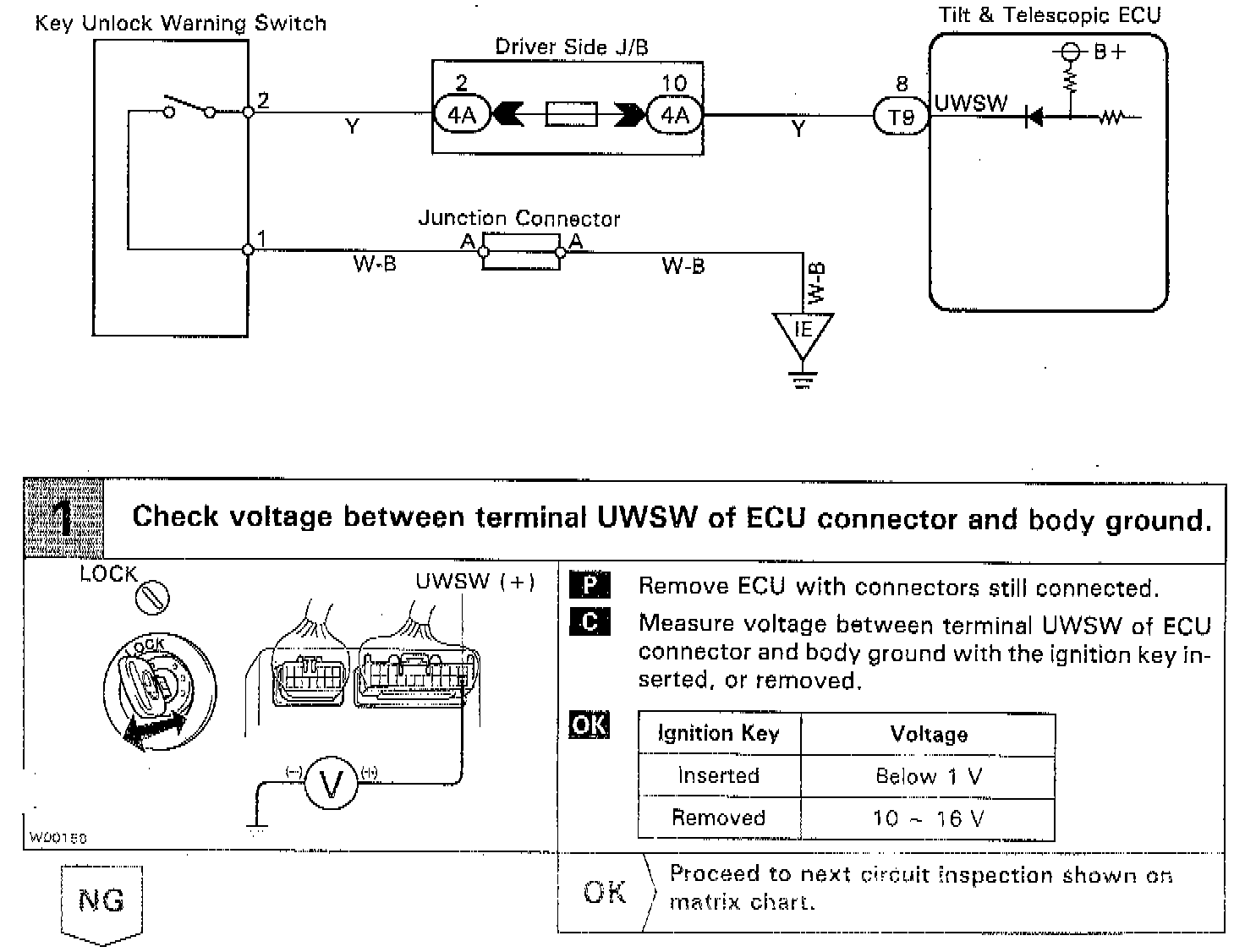

CIRCUIT DESCRIPTION:
Whether or not the key is inserted in the key cylinder is detected and a signal is sent to the ECU. Symptom Related Diagnostic Procedures

NOTE: The switch is ON (closed) when the ignition key is inserted.
