Ignition Switch Circuit

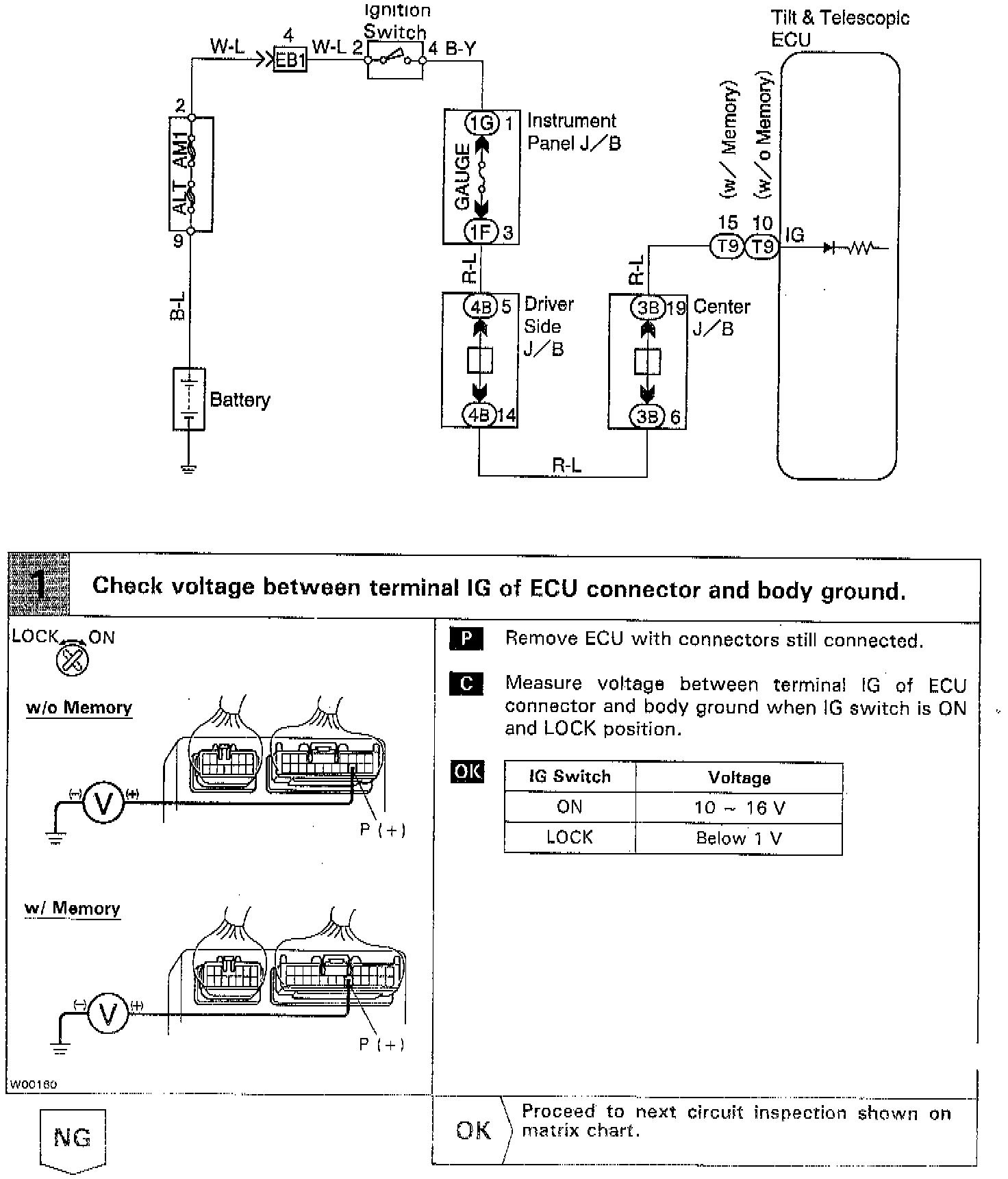

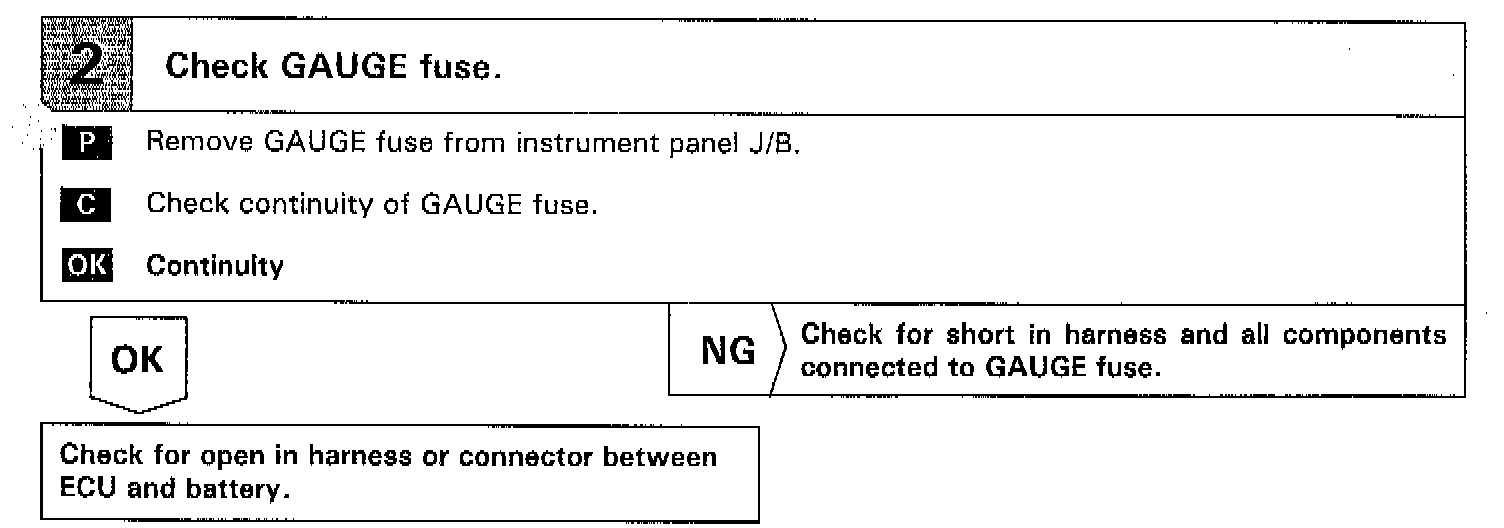

CIRCUIT DESCRIPTION:
The ON, OFF signal from the ignition switch is sent to the ECU. Symptom Related Diagnostic Procedures
