Actuator Power Source Circuit

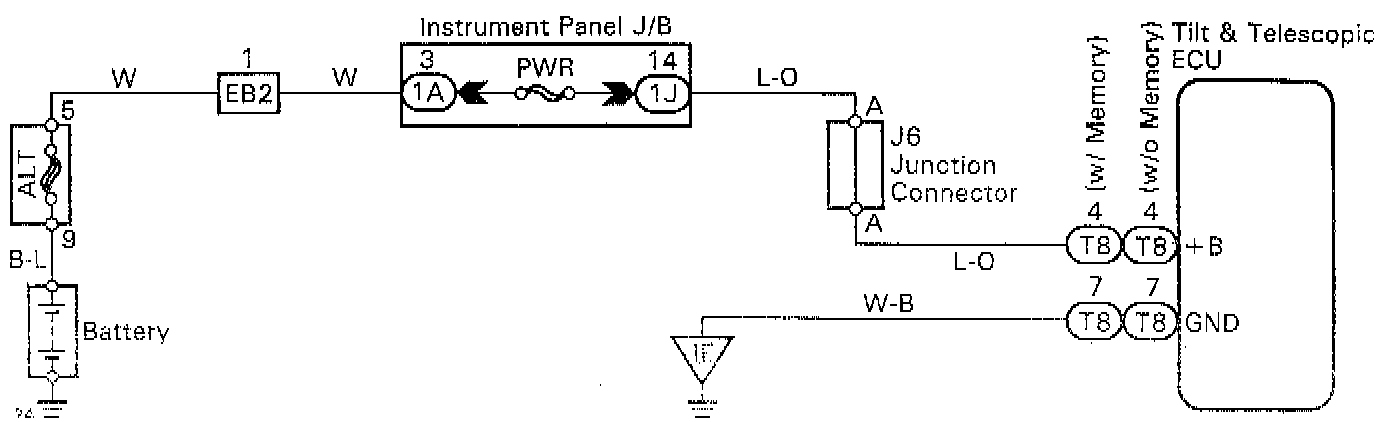

CIRCUIT DESCRIPTION:

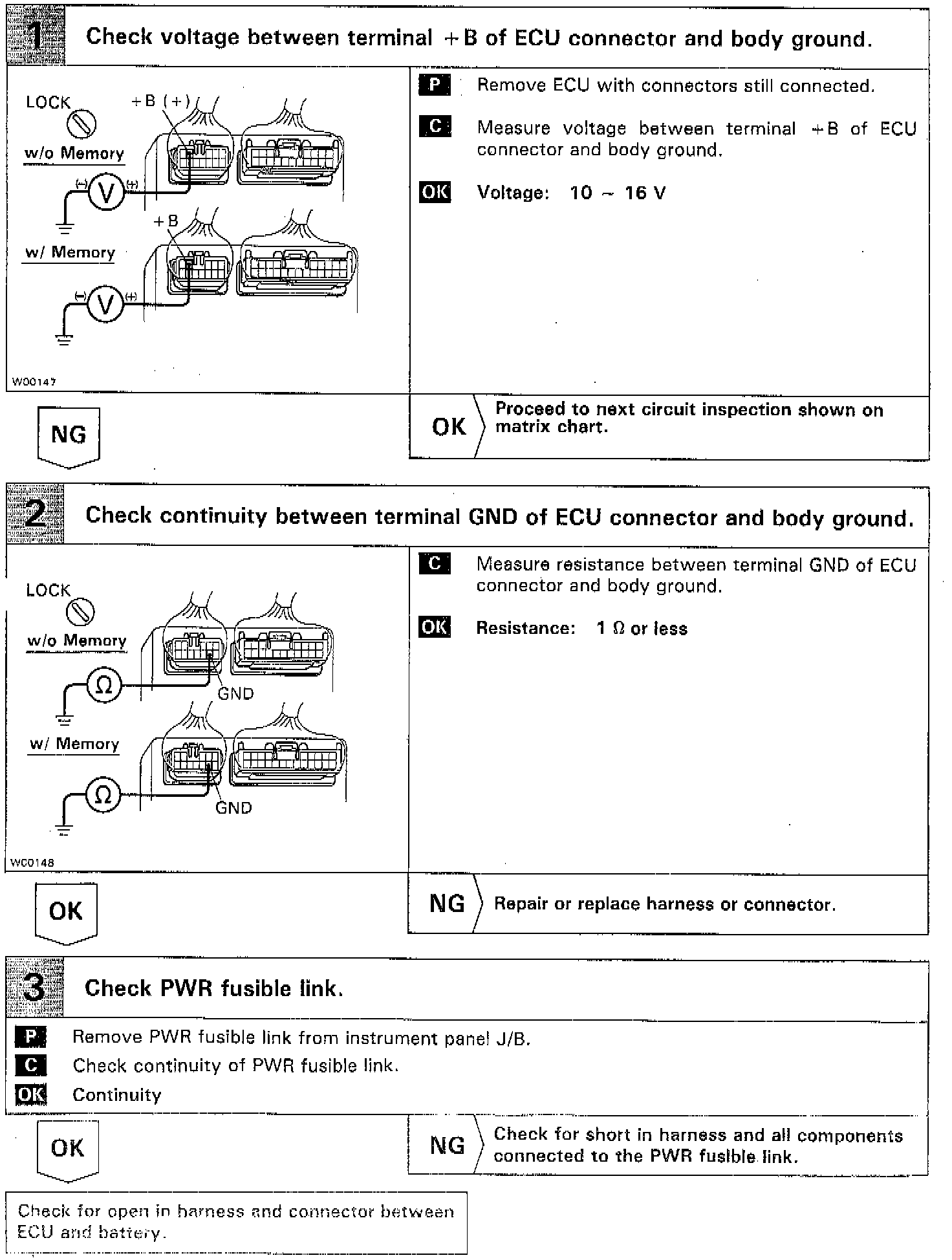

This is the Power source for the motors. Symptom Related Diagnostic Procedures
