Removal and Installation

Fig. 36 Removing Power Steering Pump:

Refer to Fig. 36 when replacing the power steering pump, noting the following:
1. Loose drive belt tension by turning drive belt tensioner counterclockwise, then remove drive belt.
2. Remove pump pulley using driveshaft holding tool No. 09278-54012 or equivalent.

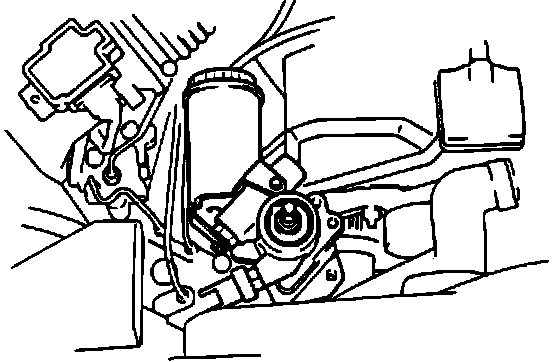

Fig. 37 Turning Pump Assembly For Removal:

3. Face pump in direction shown in Fig. 37, then remove.

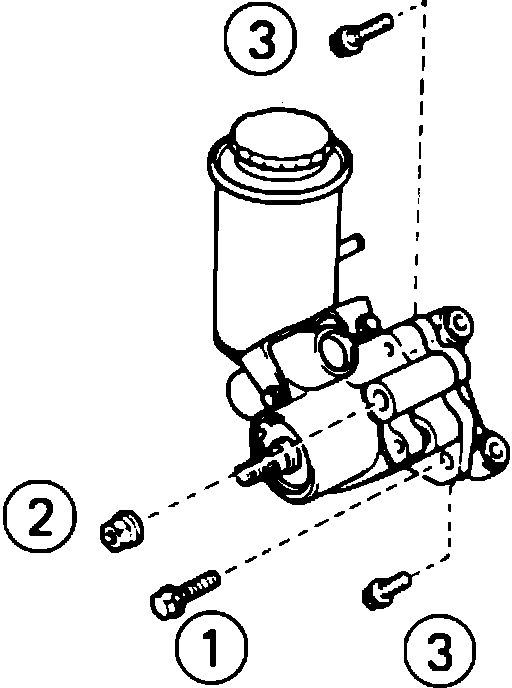

Fig. 38 Pump Bolt Tightening Sequence:

4. When installing pump, tighten bolts on pump in order shown in Fig. 38.

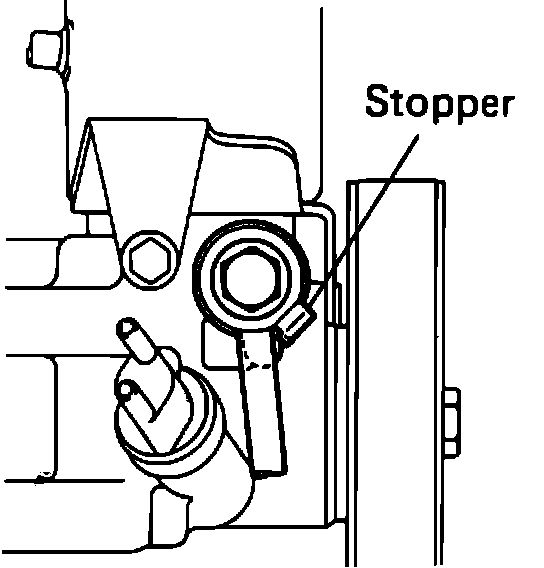

Fig. 39 Pressure Tube Stopper Location:

5. Ensure stopper is touching the pump housing as shown, then tighten union bolt, Fig. 39.
6. Bleed power steering system.
