Ground Point Diagrams

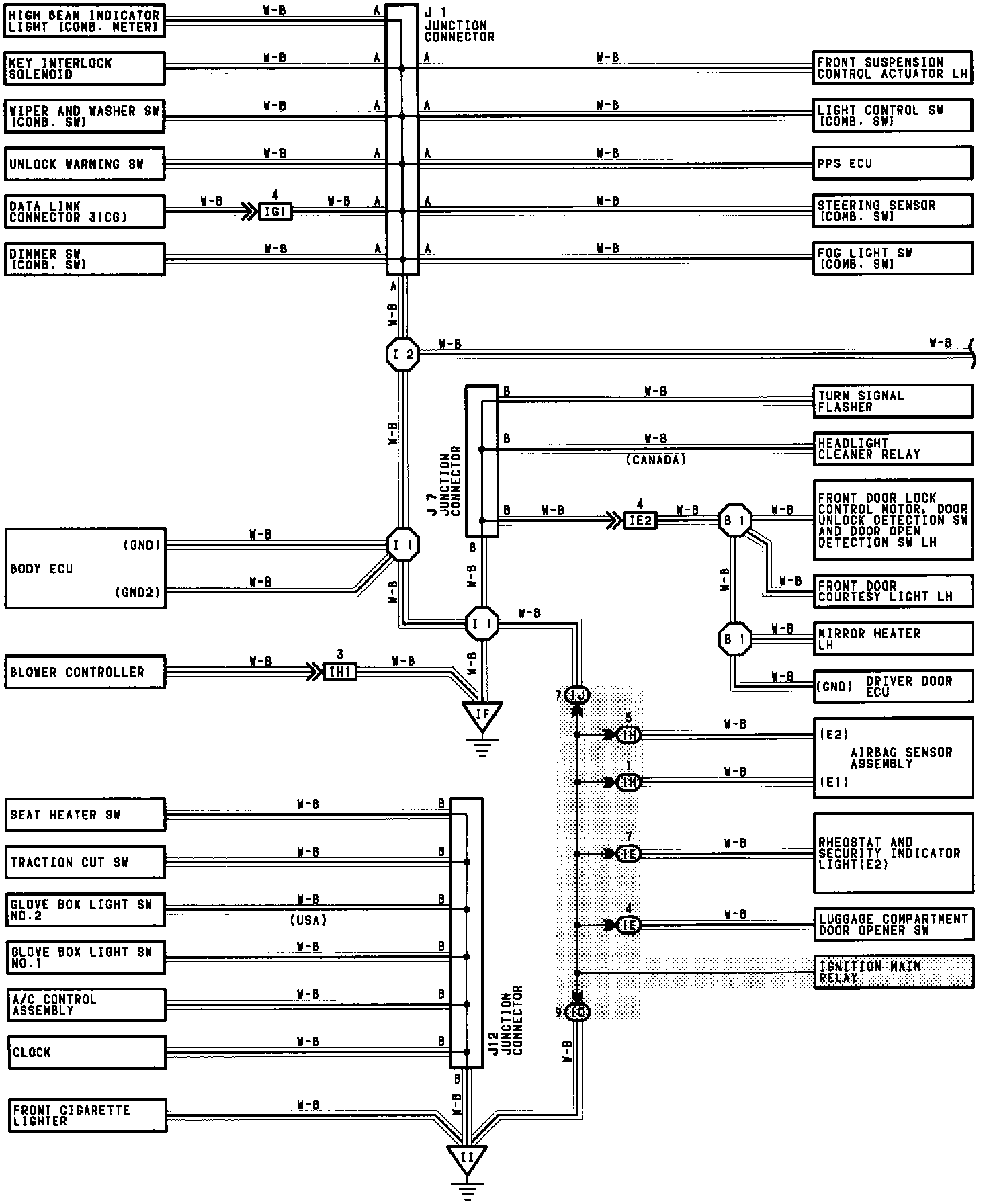

Ground Point (Part 1 Of 5):

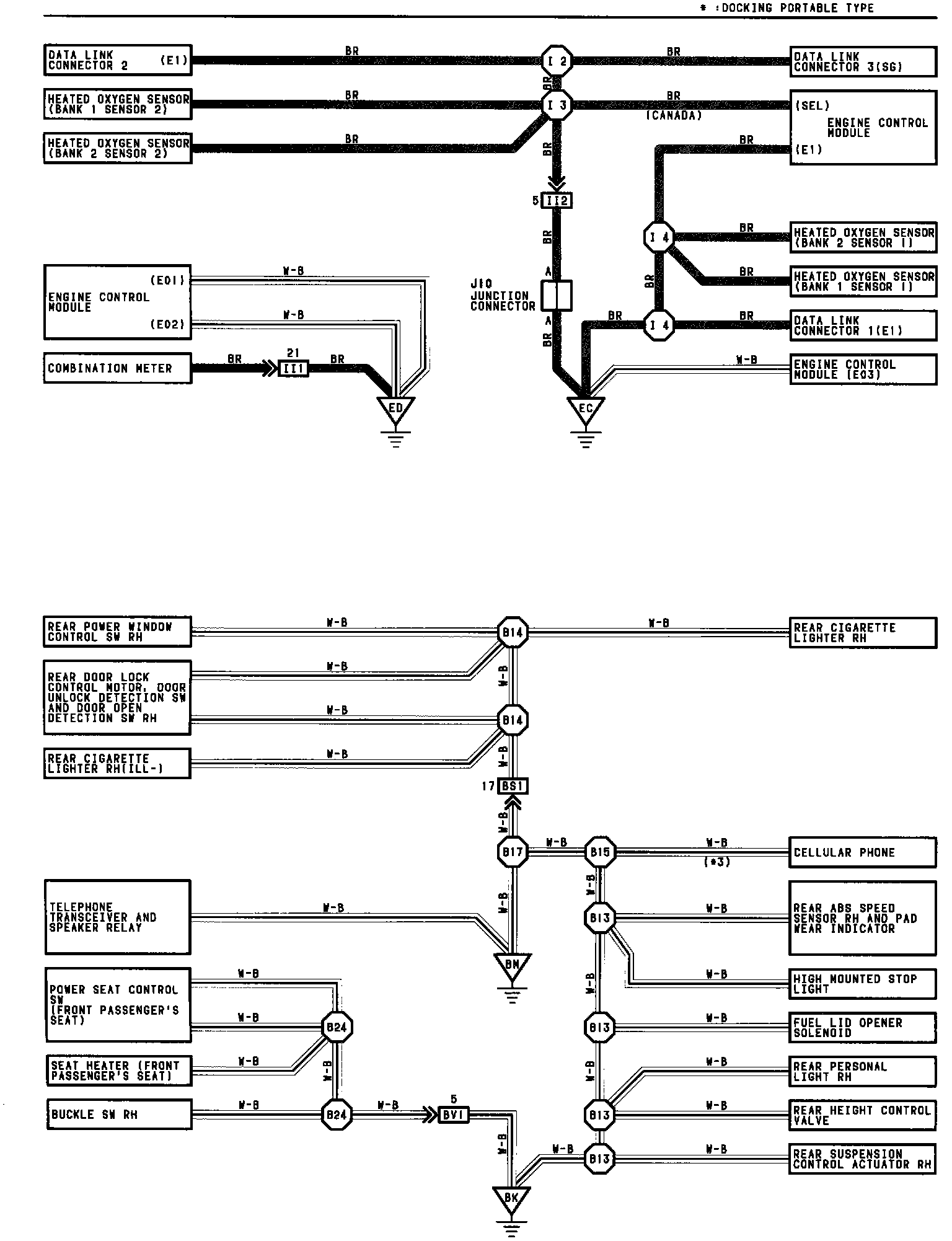

Ground Point (Part 2 Of 5):

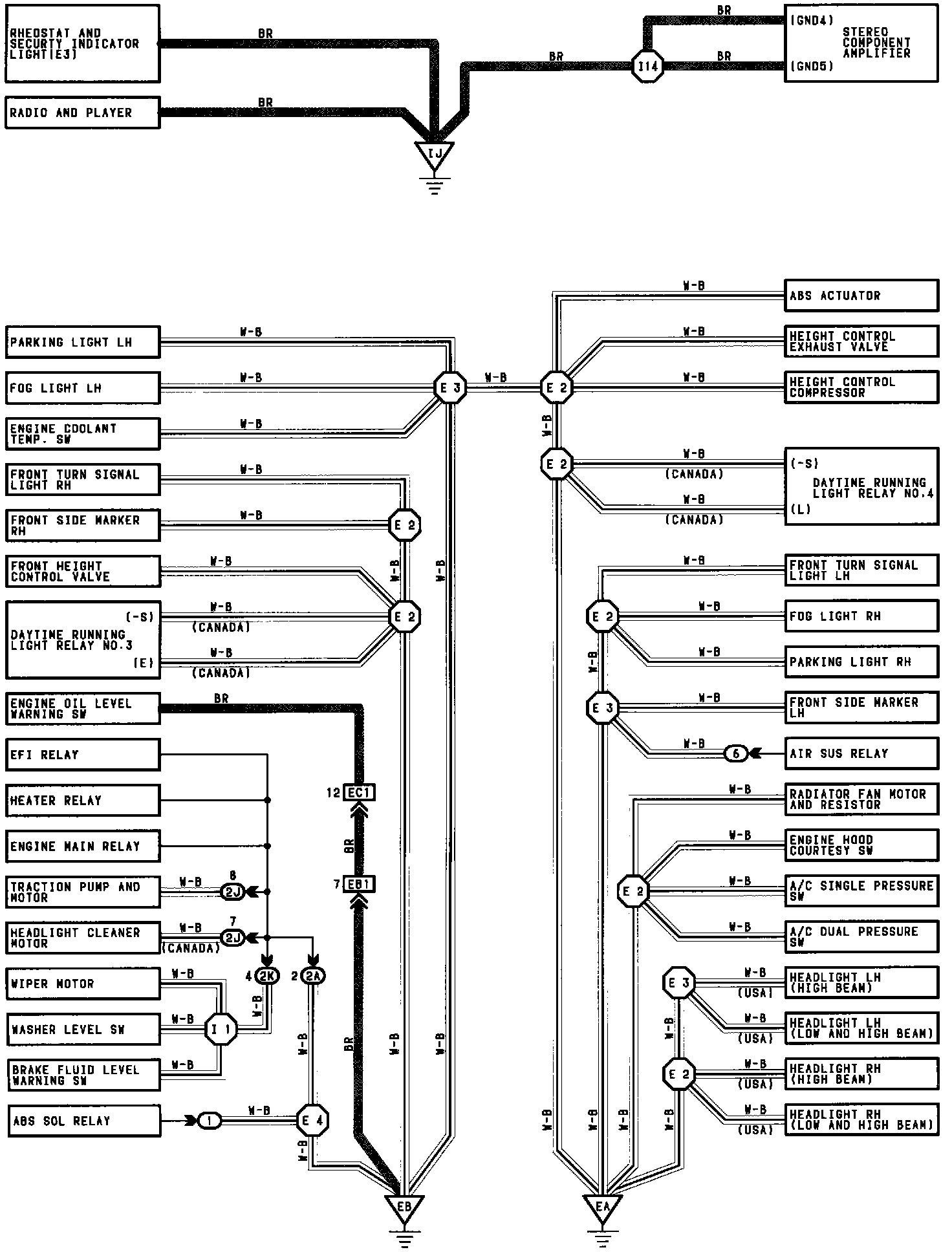

Ground Point (Part 3 Of 5):

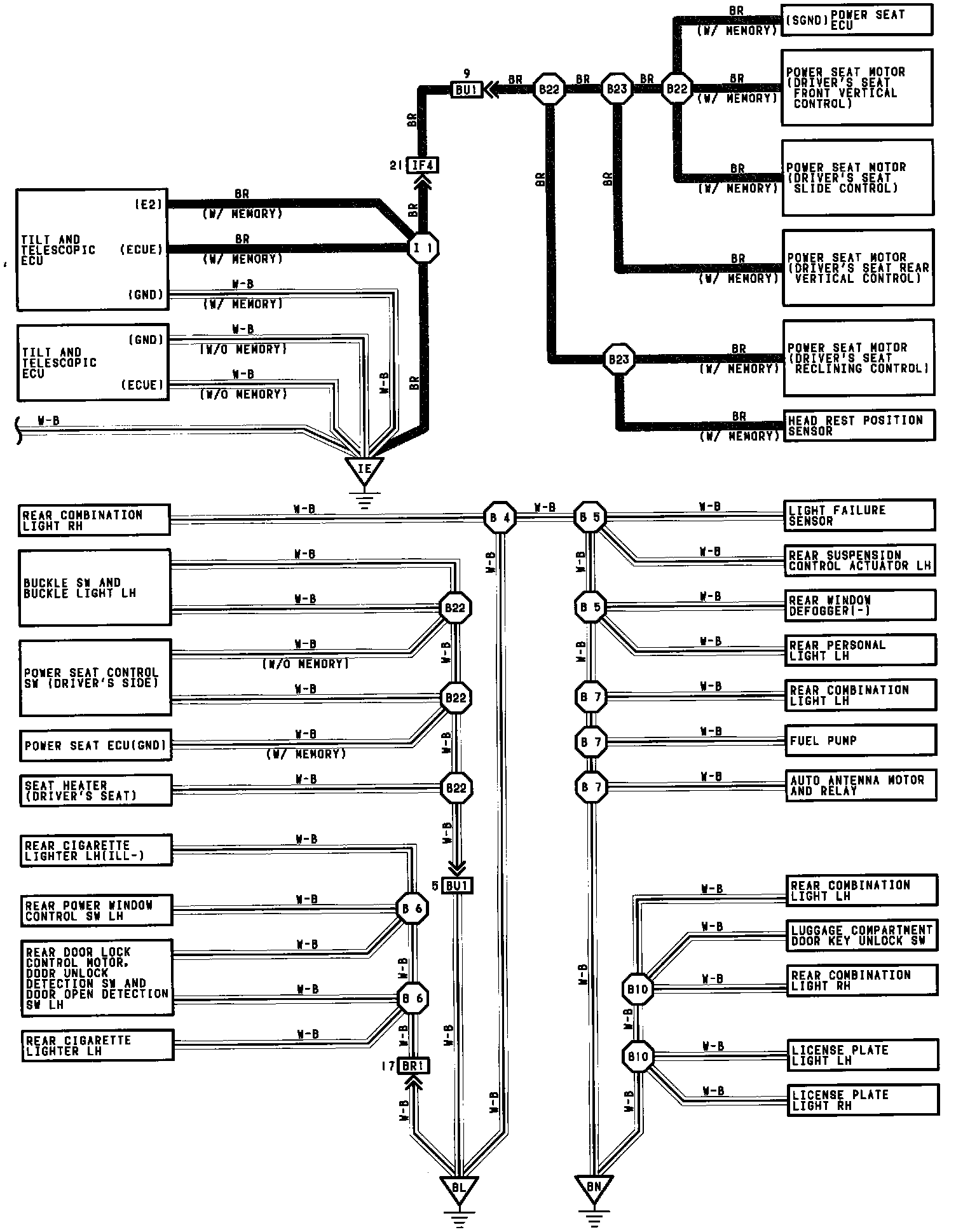

Ground Point (Part 4 Of 5):

Ground Point (Part 5 Of 5):
