Trunk Lamp Switch: Testing and Inspection

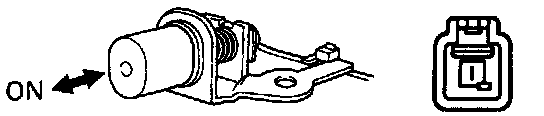

LUGGAGE COMPARTMENT DOOR COURTESY SWITCH INSPECTION

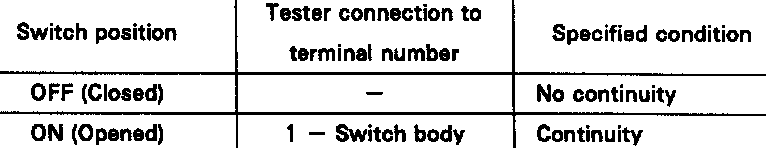

INSPECT SWITCH CONTINUITY






If operation is not as specified, replace the switch.
