TC Terminal Circuit

Circuit Description
By connecting terminals Tc and E1 of the DLC1 the airbag sensor assembly is set in the DTC output mode. The DTCs are displayed by the blinking of the SRS warning light.

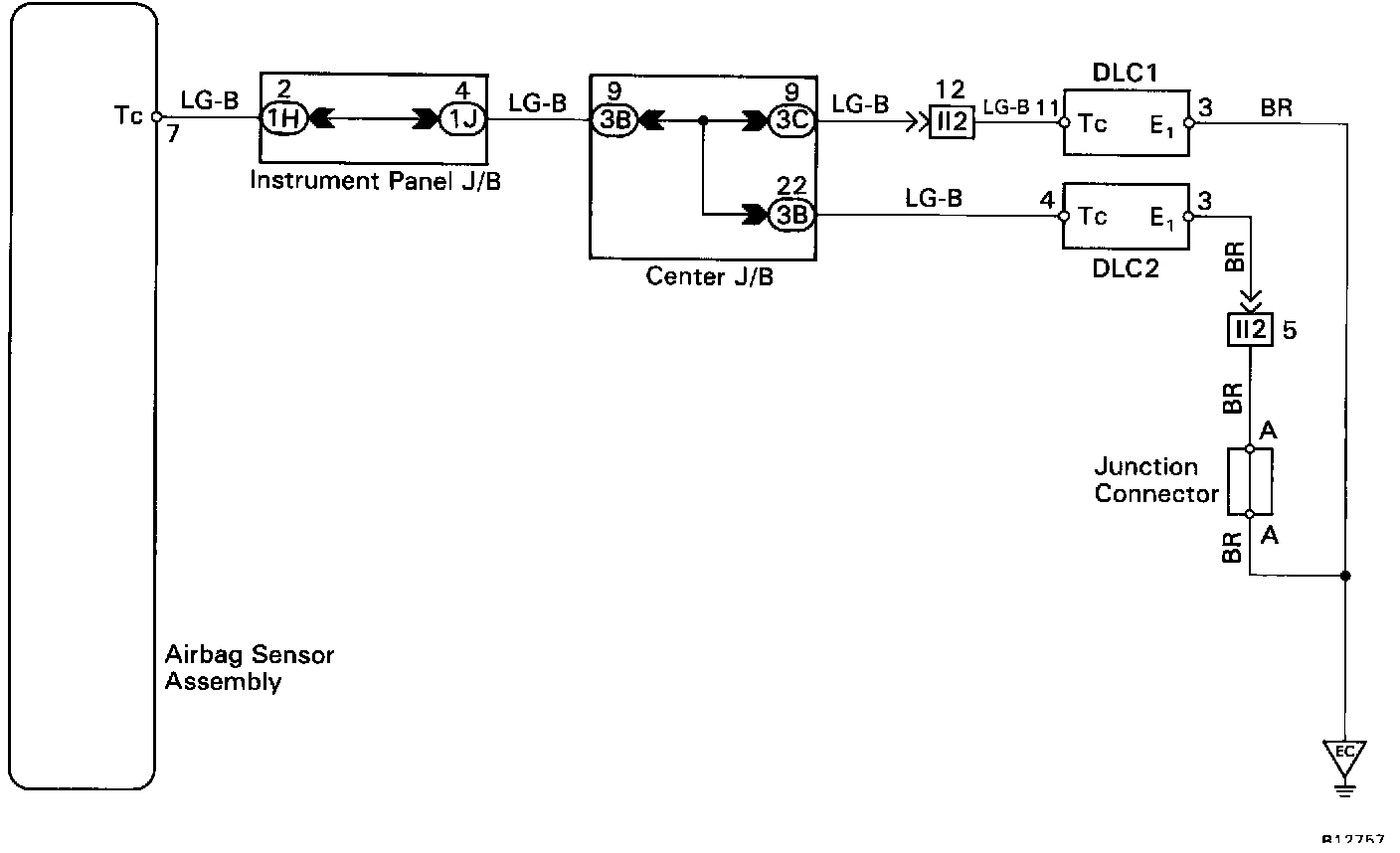

Wiring Diagram:

Inspection Procedures

HINT: If the DTC is not displayed, do the following troubleshooting.

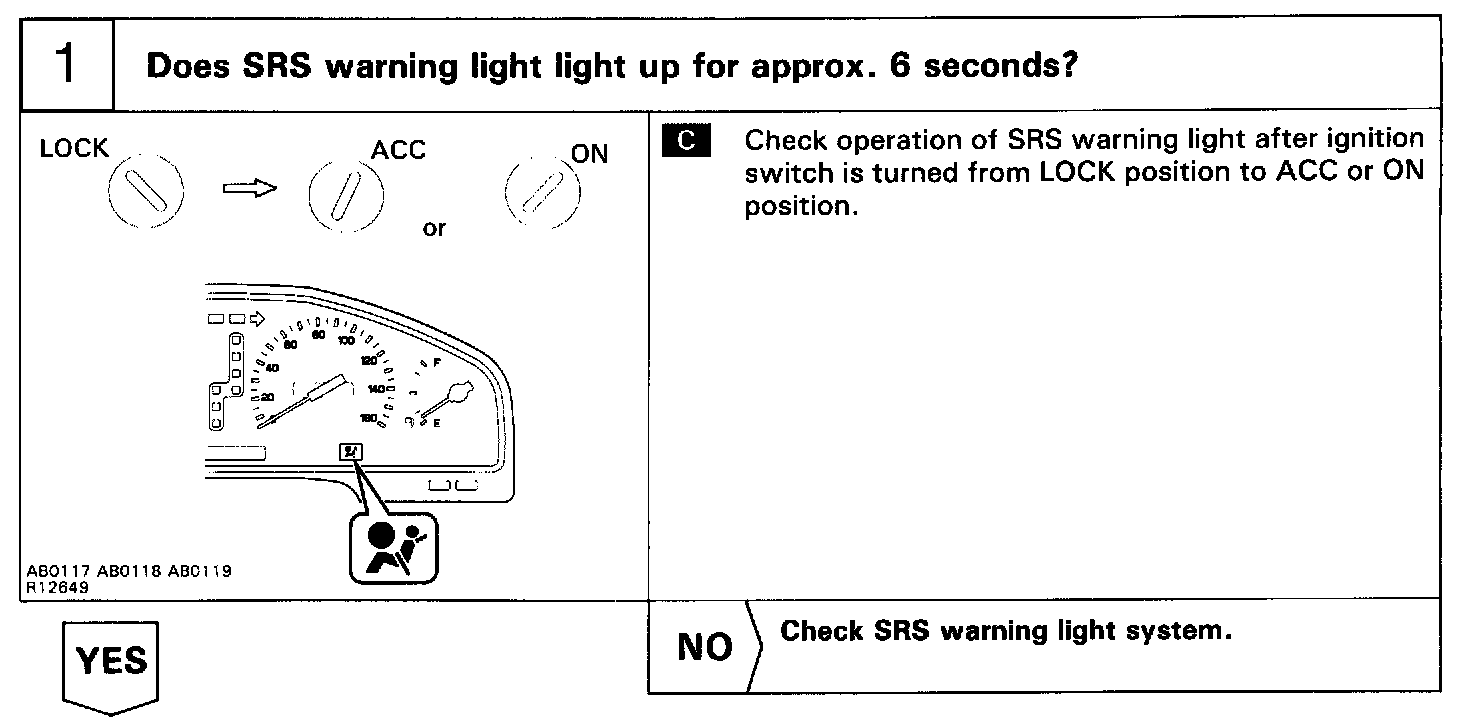

Step 1:

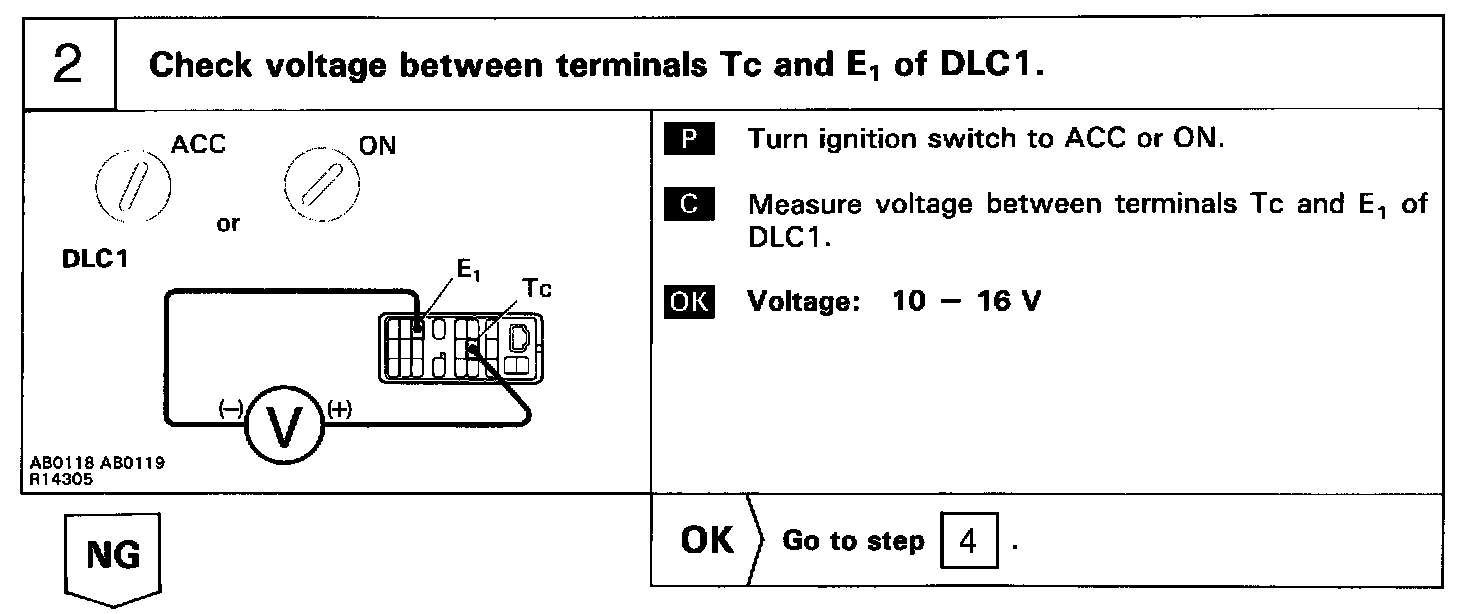

Step 2:

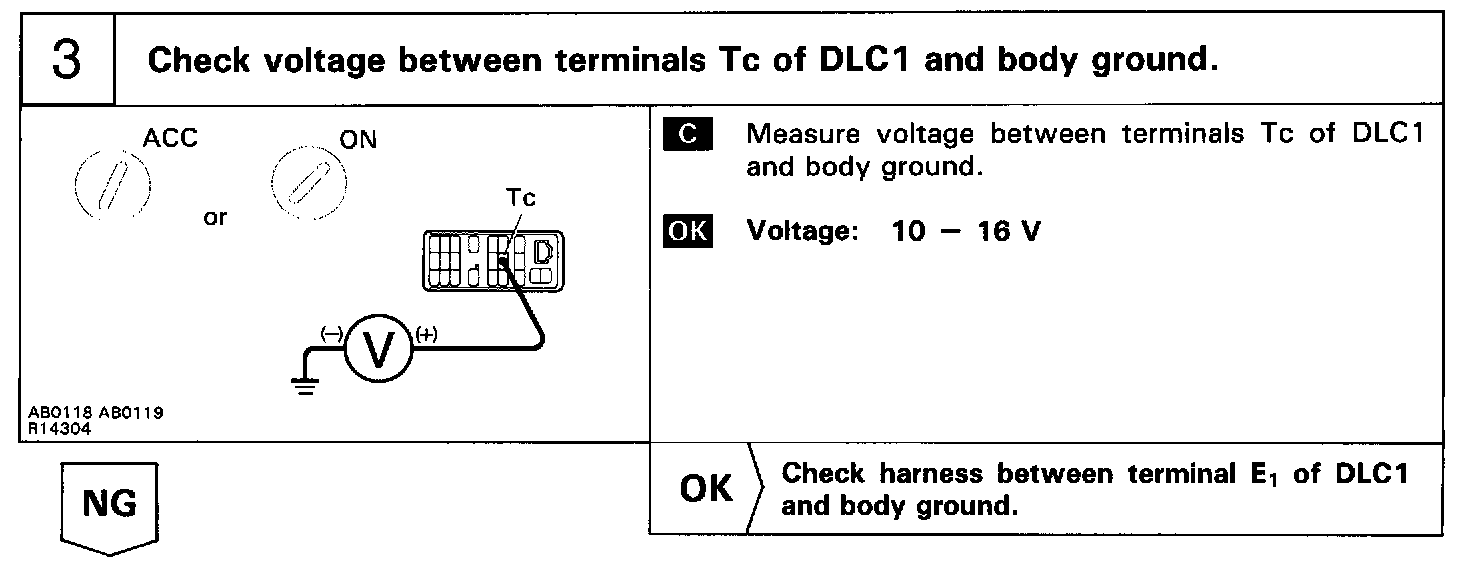

Step 3:

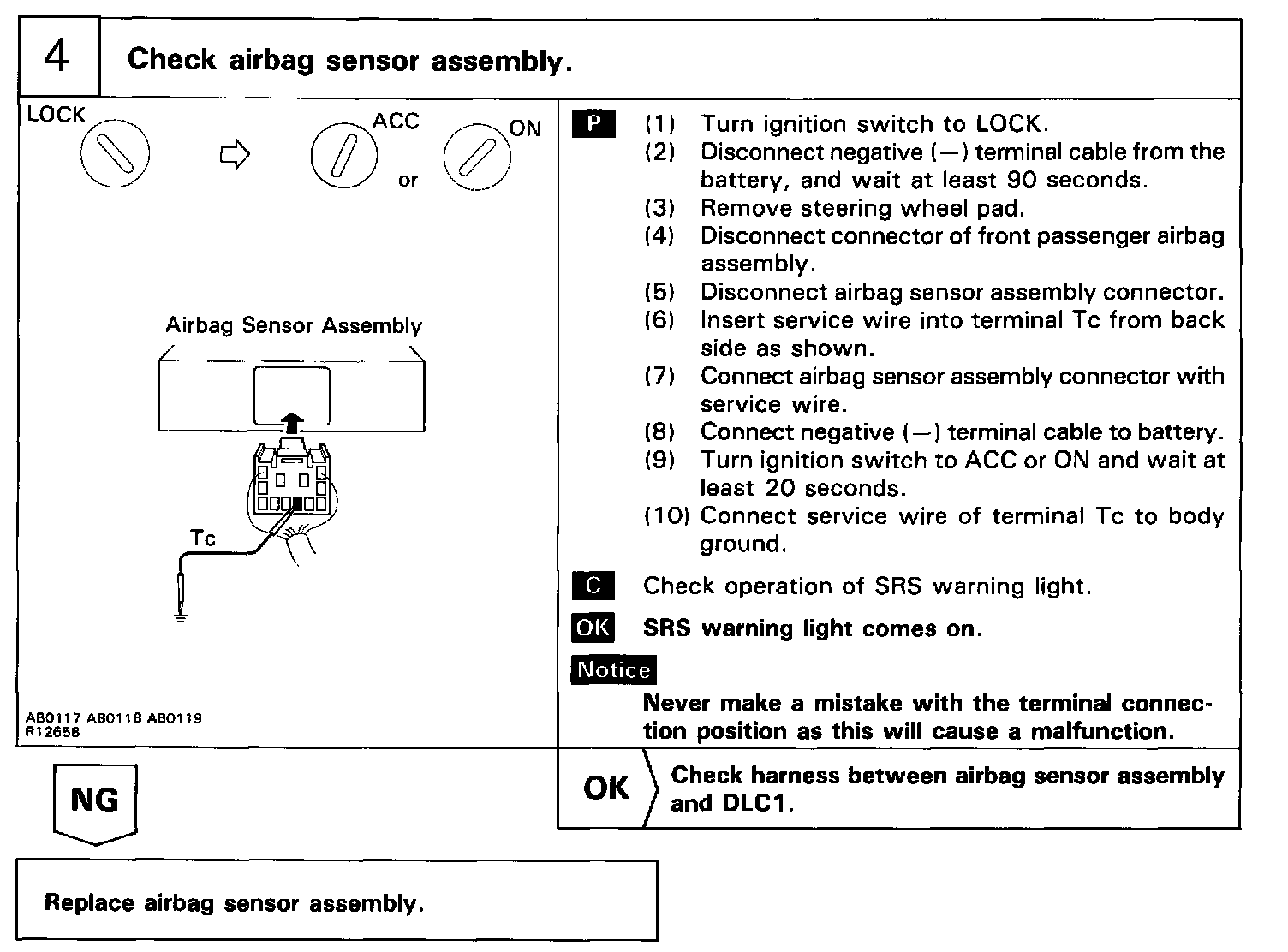

Step 4:

HINT: If the DTC is displayed without a DTC check procedure, do the following troubleshooting.

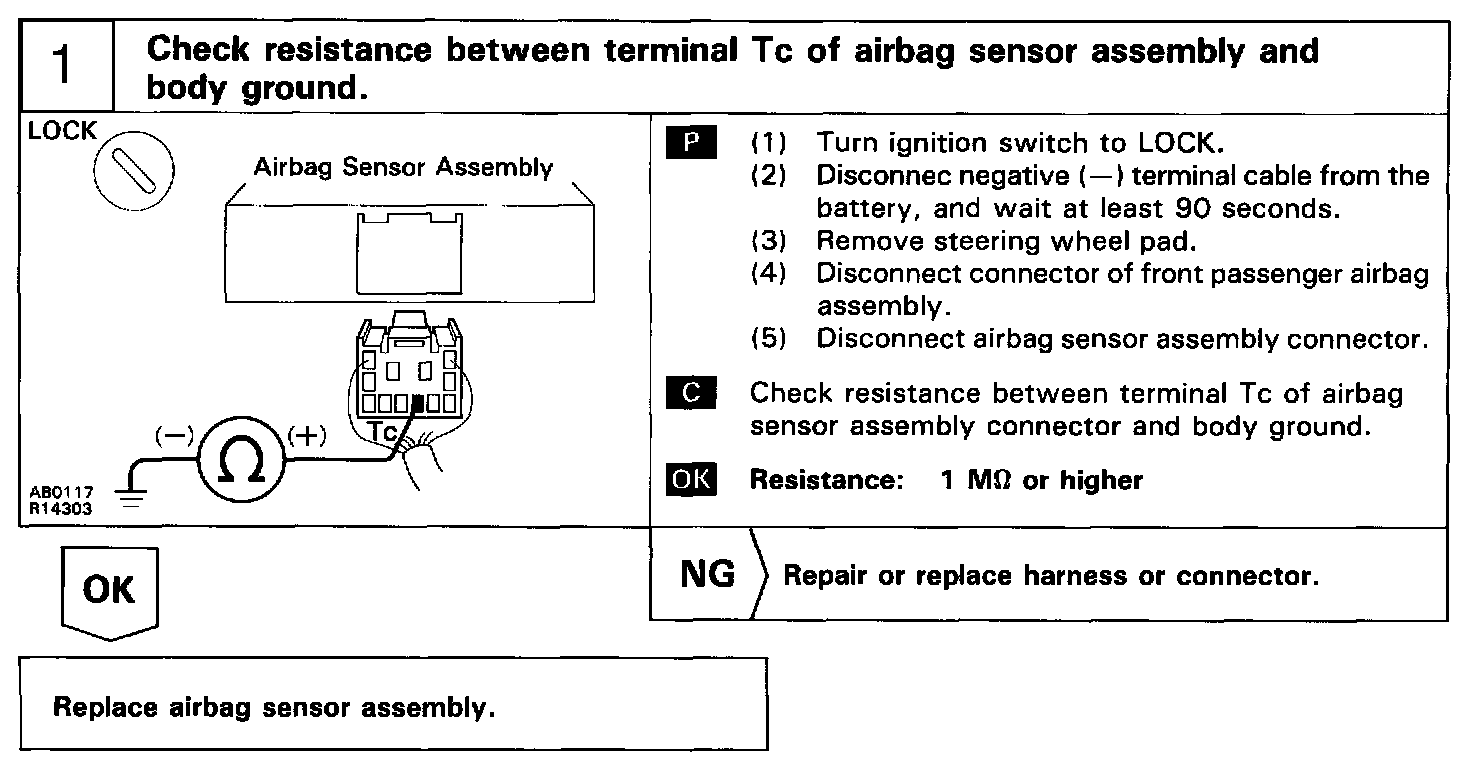

Step 1:
