Circuit Opening Relay

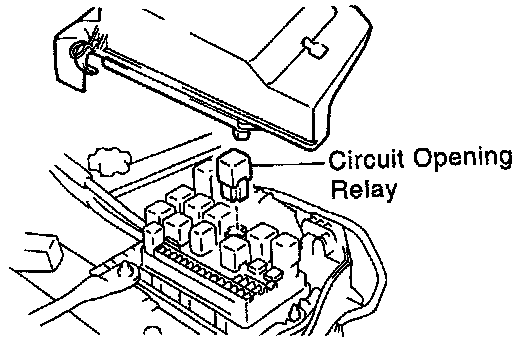

The Circuit Opening Relay Is In The Engine Compartment Relay Box:

1. REMOVE CIRCUIT OPENING RELAY.
2. INSPECT CIRCUIT OPENING RELAY.

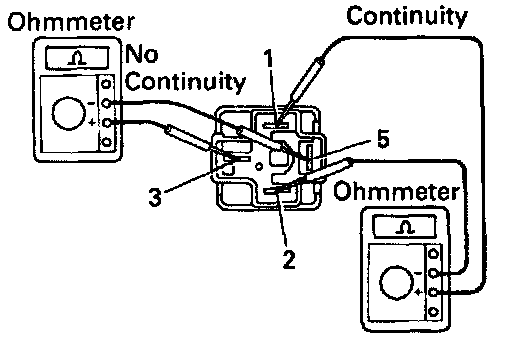

Inspect relay continuity



- Using an ohmmeter, check that there is continuity between terminals 1 and 2.
- Check that there is no continuity between terminals 3 and 5.
- If continuity is not as specified. replace the relay.

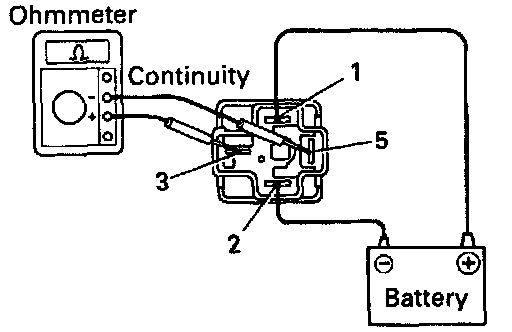

Inspect relay operation



- Apply battery voltage across terminals 1 and 2.
- Using an ohmmeter, check that there is continuity between terminals 3 and 5.
- If operation is not as specified. replace the relay.

3. REINSTALL CIRCUIT OPENING RELAY.
