Throttle Cable/Linkage: Service and Repair

INSTALLATION HINT: Installation is in the reverse order of removal.

INSTALLATION HINT:
- After installation, fill and check the fluid level.
- Adjust the throttle cable.
- If throttle cable is new, stake stopper on inner cable.

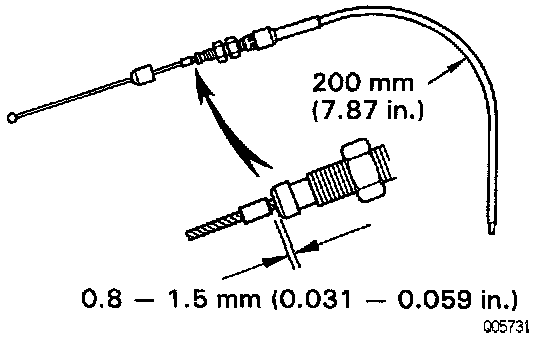

- Bend the cable so there is a radius of about 200 mm (7.87 in.).
- Pull in the slack of the inner cable.
- Stake the stopper with 0.8-1.5 mm (0.031-0.059 in.) protruding from the end of the outer cable.
