Solenoid Resistance

1. REMOVE THROTTLE BODY.
2. INSPECT INJECTOR RESISTANCE.
- Disconnect the 8 injector connectors.

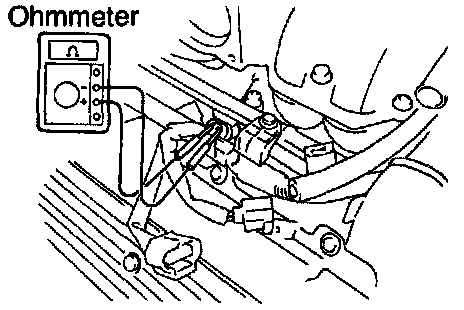

- Using an ohmmeter, measure the resistance between the terminals.

Resistance: At 20°C (68°F): 13.4 - 14.2 0hms

If the resistance is not as specified, replace the injector.
- Reconnect the 8 injector connectors.

3. RE-INSTALL THROTTLE BODY.
