Symptom Related Diagnostic Procedures

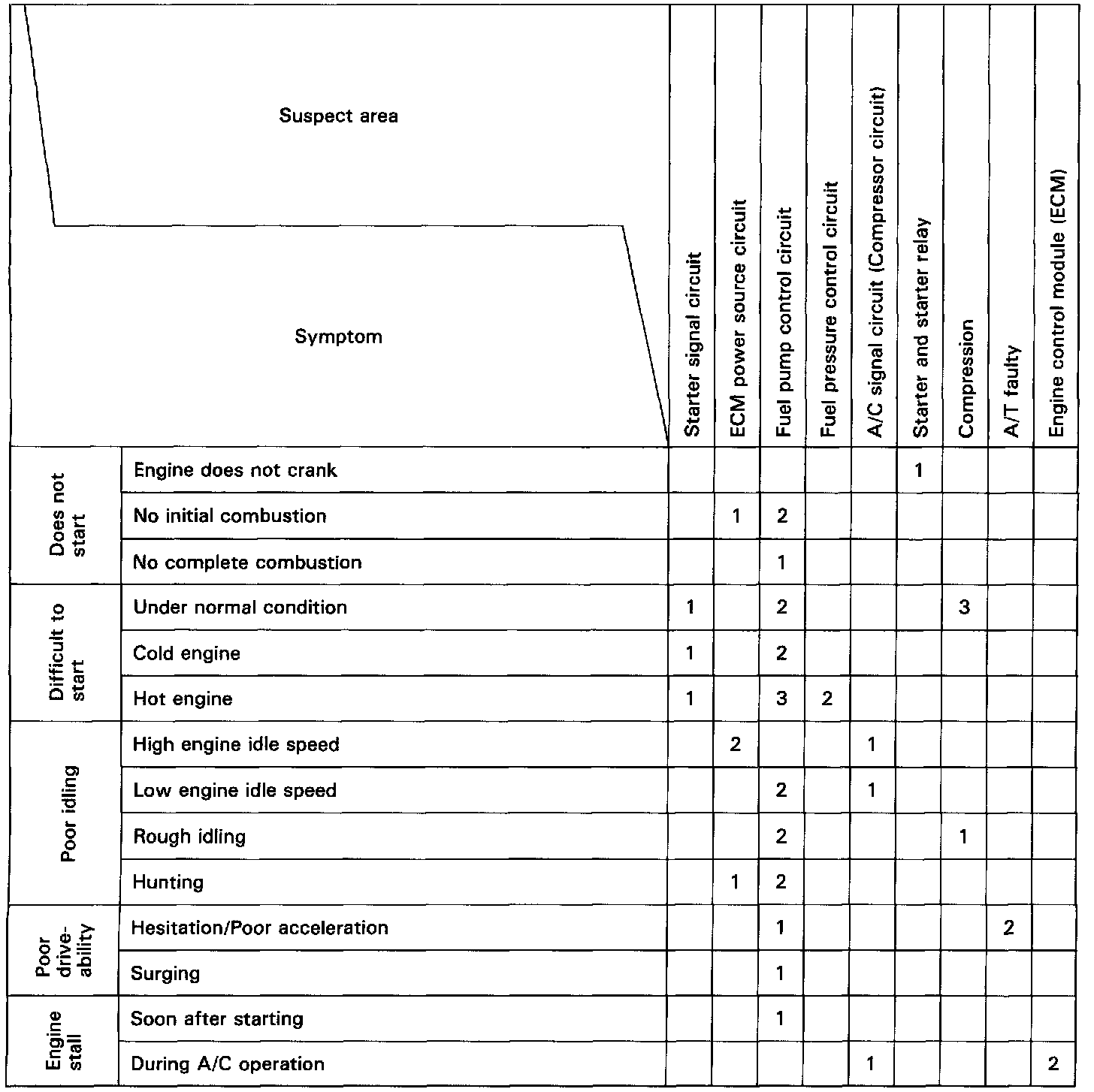

When the malfunction code is not confirmed in the DTC check and the problem still can not be confirmed in the basic inspection, proceed to this matrix chart and perform troubleshooting according to the numbered order given in the table below.
