Home >> Lexus >> 1996 >> LS 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Locations >> Fuse and Fusible Link Locations

Fuse and Fusible Link Locations

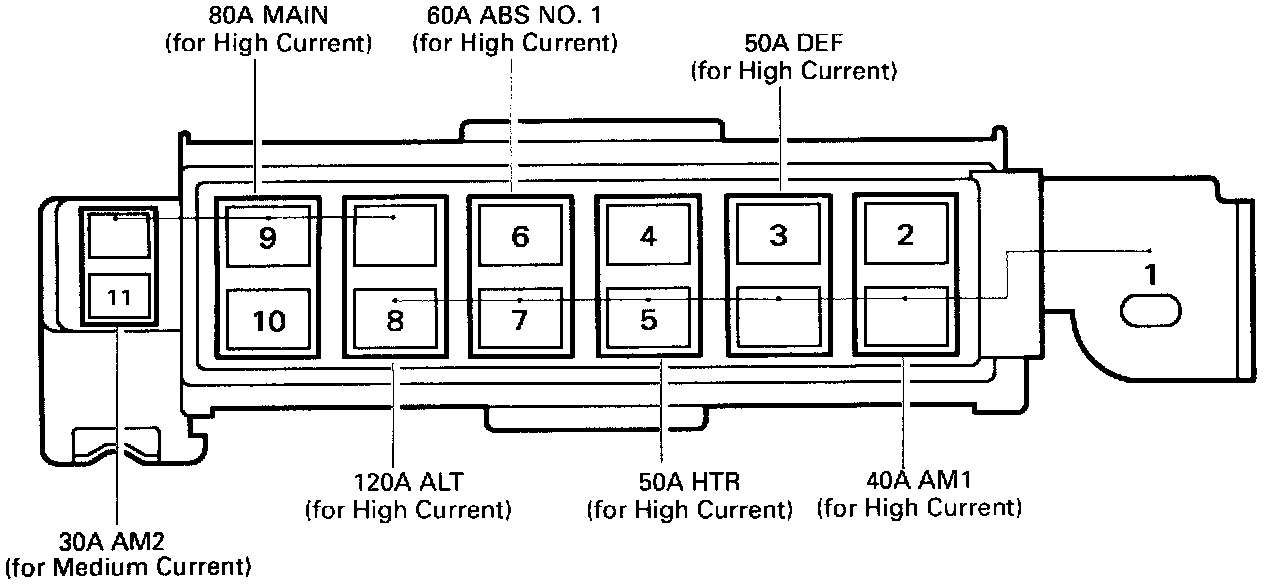

Fusible Link Block, Engine Compartment Left (Fig 29):
