Max Cool Damper Control Servomotor Circuit (Driver Side)

The max cool servomotor is controlled by the A/C control assembly and moves the max cool damper to the desired position.

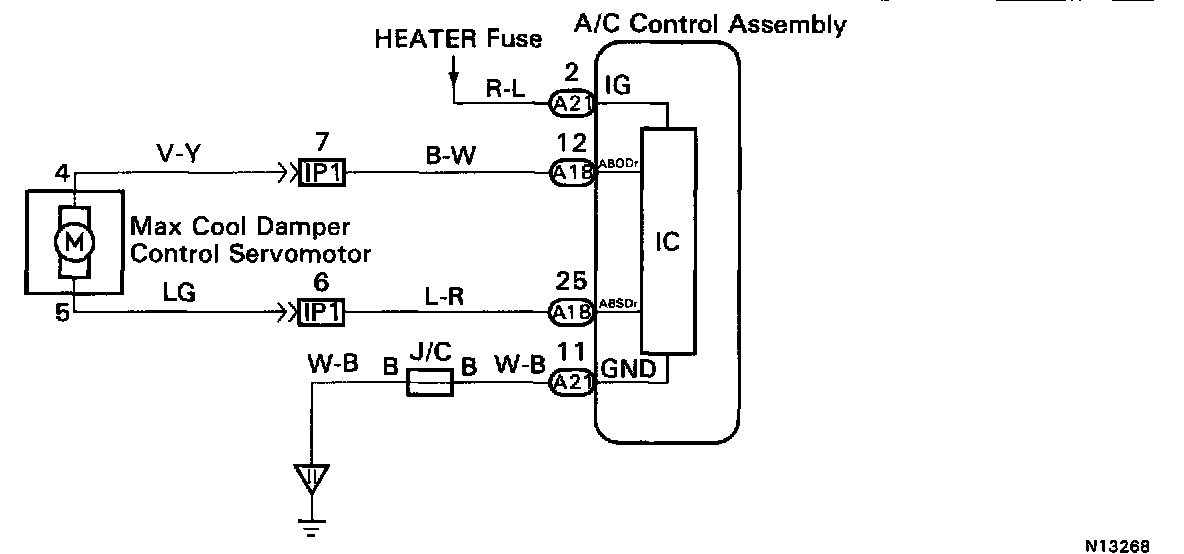

Wiring Diagram:

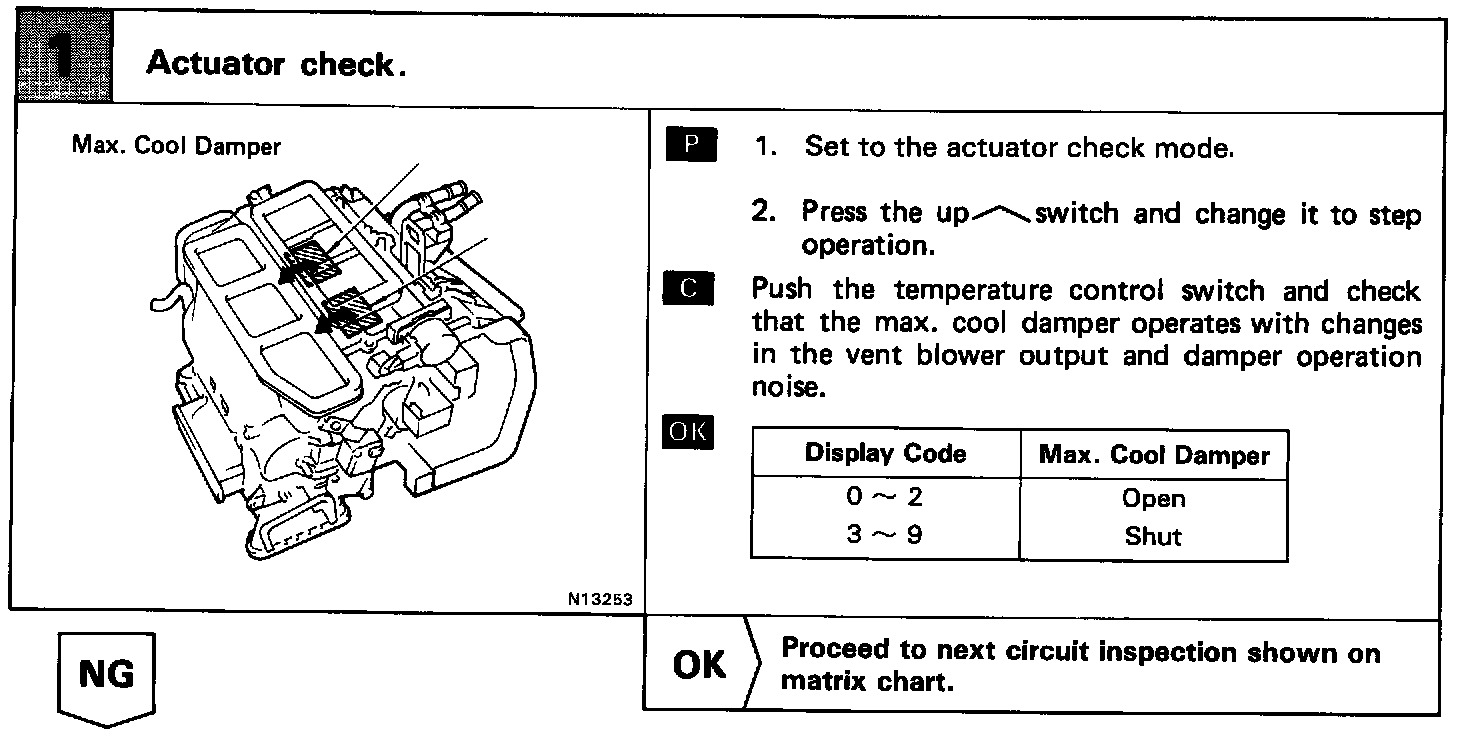

Inspection Procedure - Step 1:

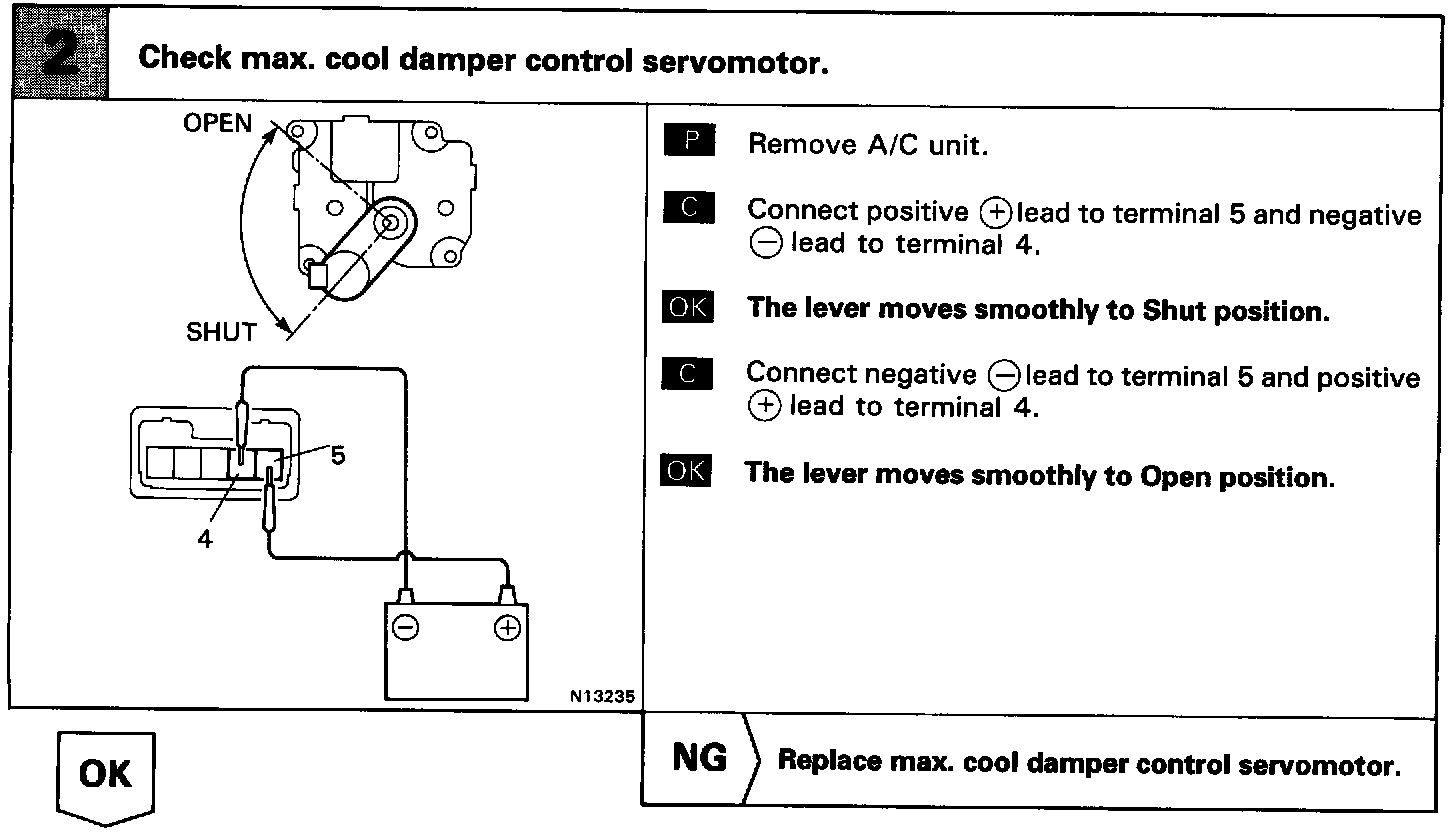

Step 2:

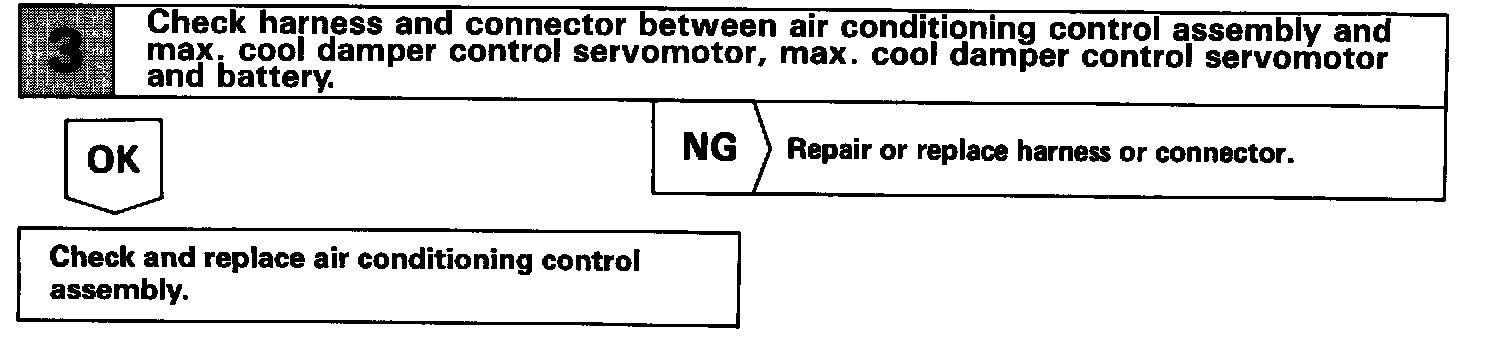

Step 3:
