Air Mix Damper Control Servomotor Circuit

This circuit turns the servomotor and changes each mode damper position by signals from the A/C control assembly. When the AUTO switch is ON, the air mix damper changes automatically.

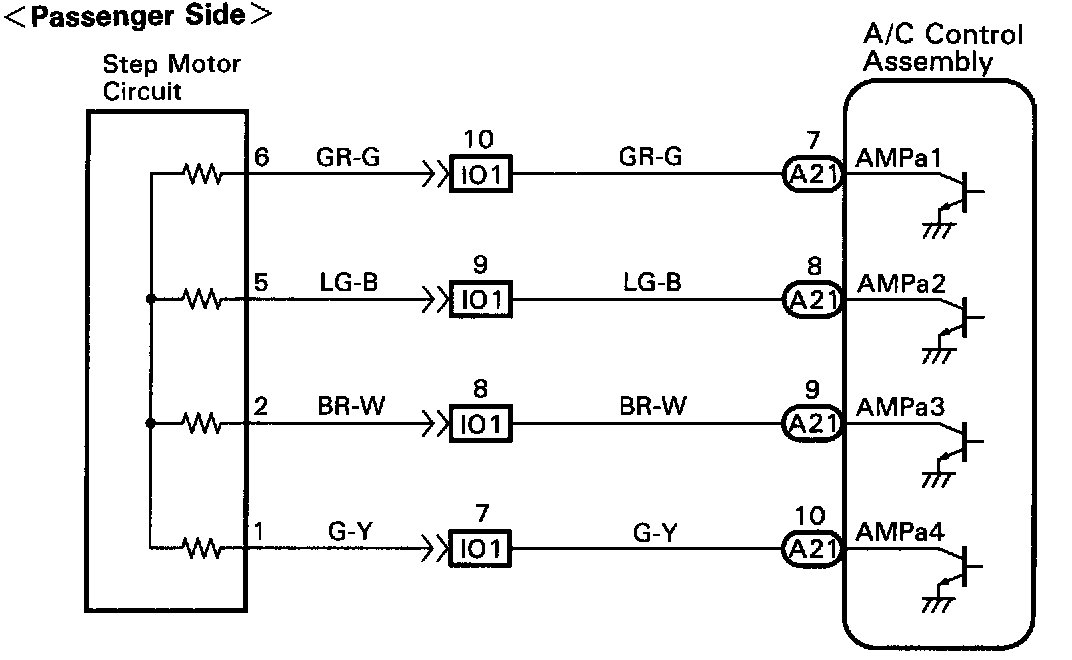

Wiring Diagram:

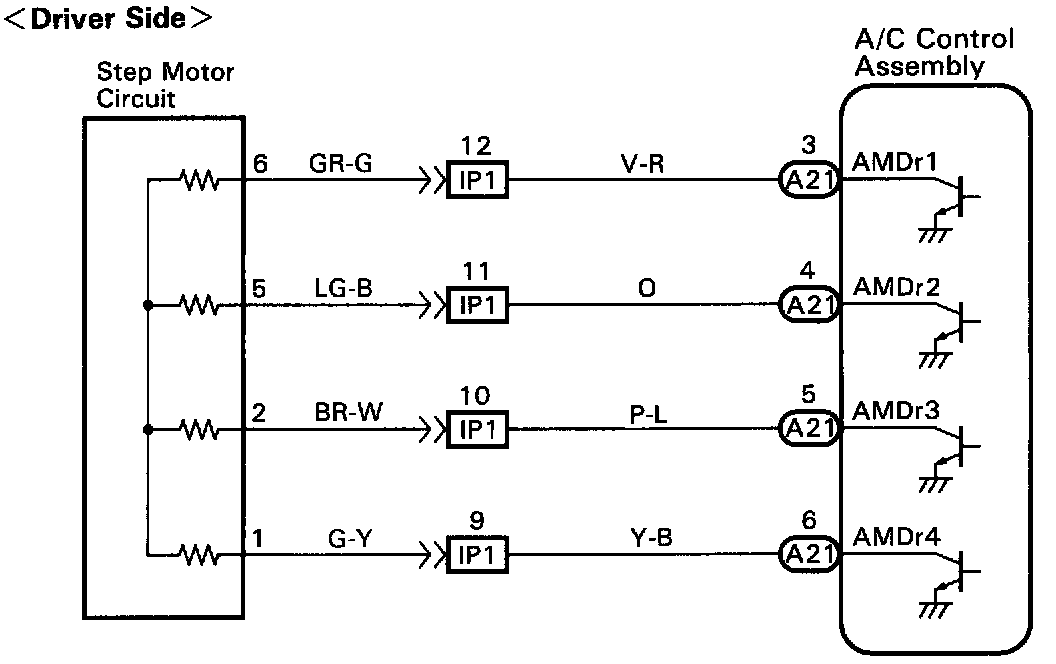

Wiring Diagram:






Inspection Procedure - Step 1:




Step 2:

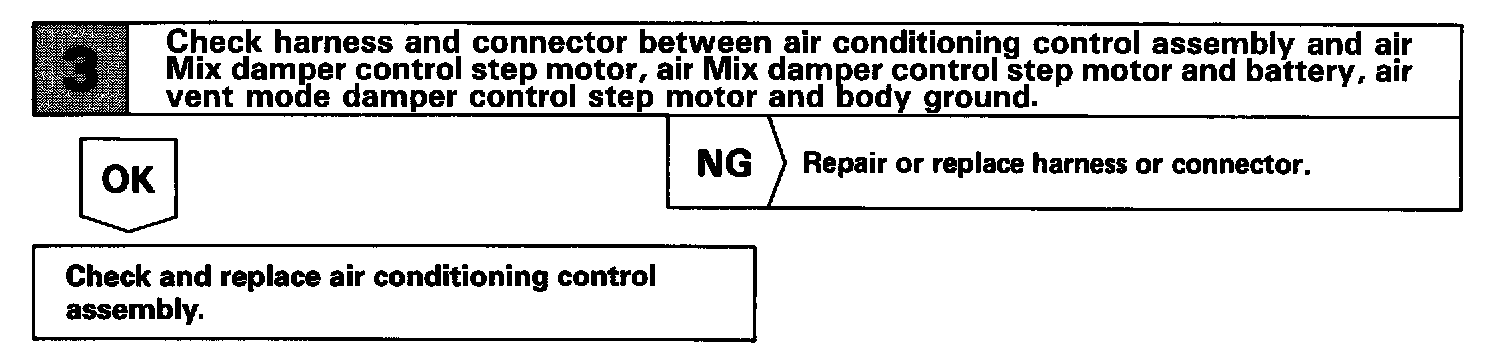

Step 3:
