Mode Control Motor

This circuit turns the servomotor and changes each mode damper position by signals from the A/C control assembly. When the AUTO switch is ON, the A/C control assembly changes the mode automatically between (FACE), (BI-LEVEL) and (FOOT) according to the temperature setting.

Wiring Diagram - Driver Side:




Wiring Diagram - Passenger Side:

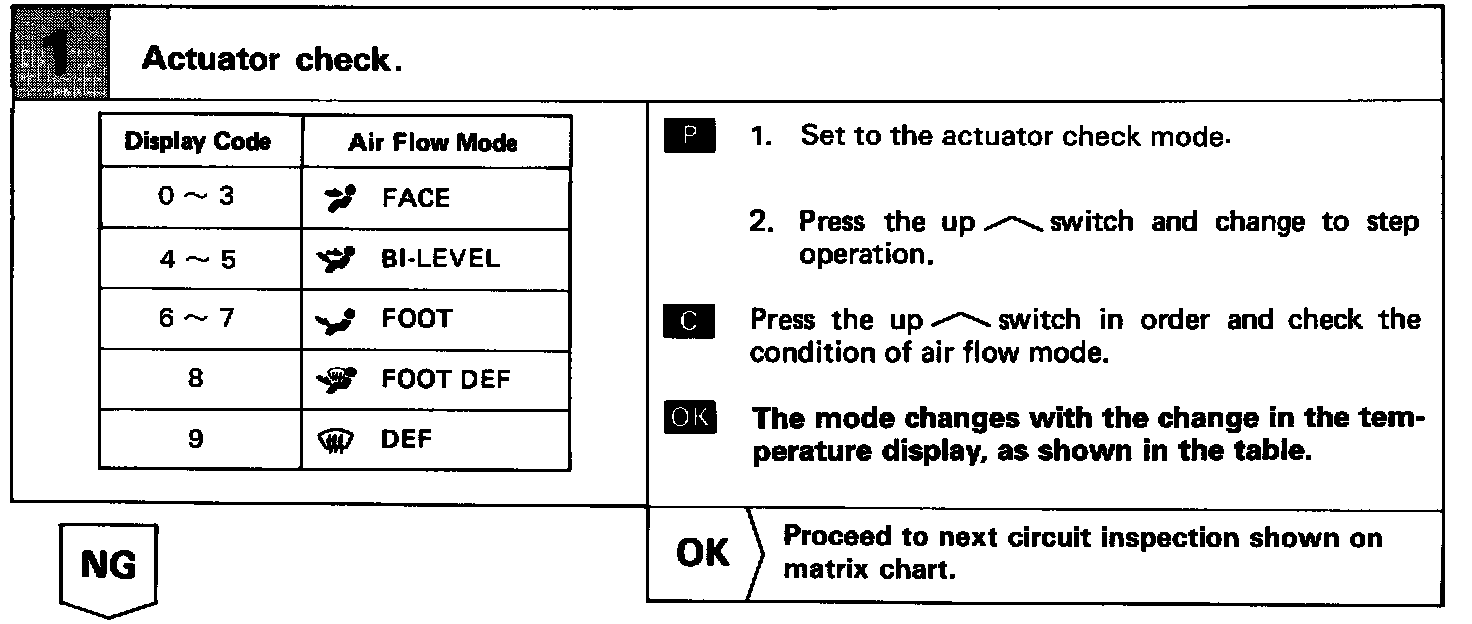

Inspection Procedure - Step 1:

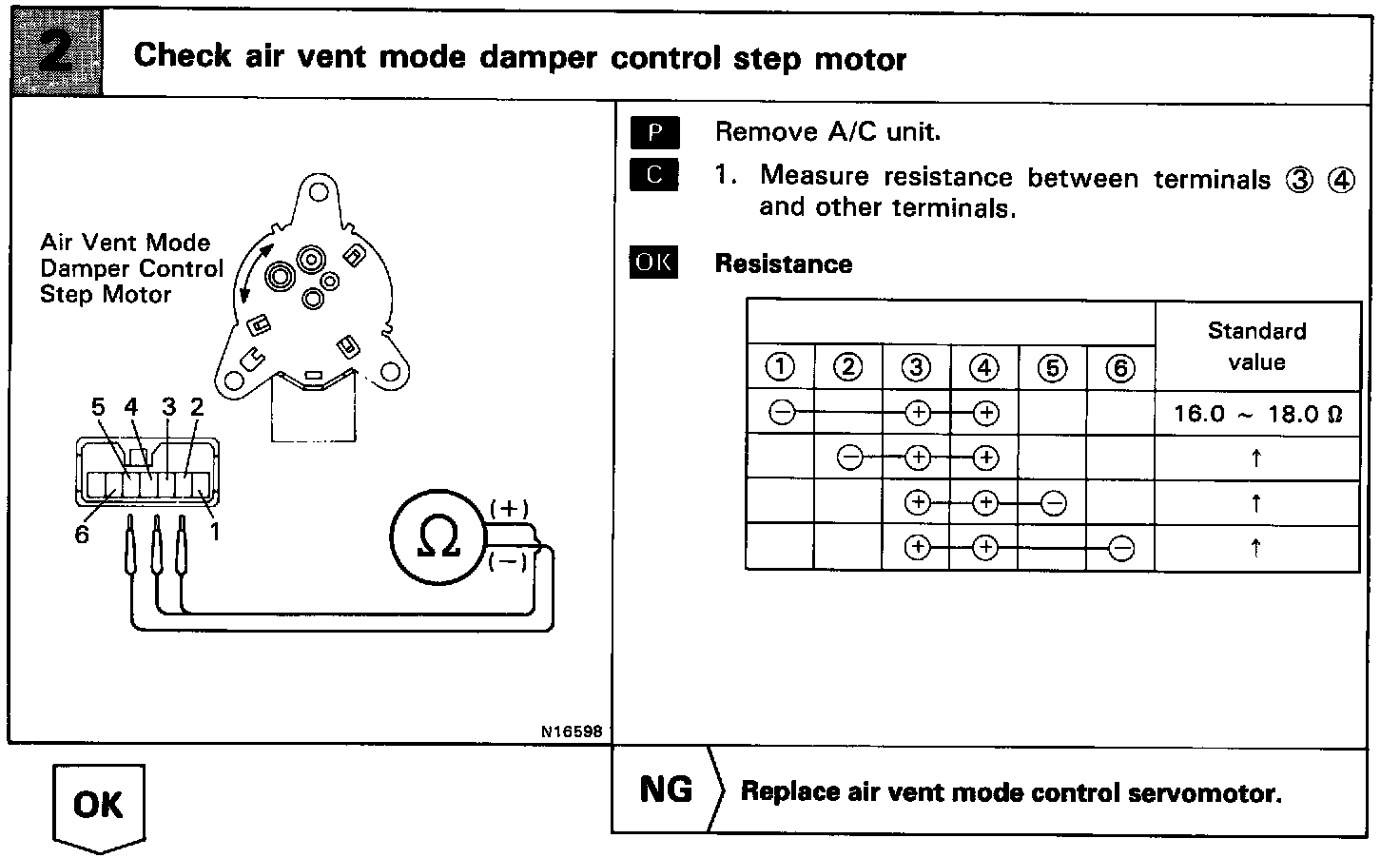

Step 2:

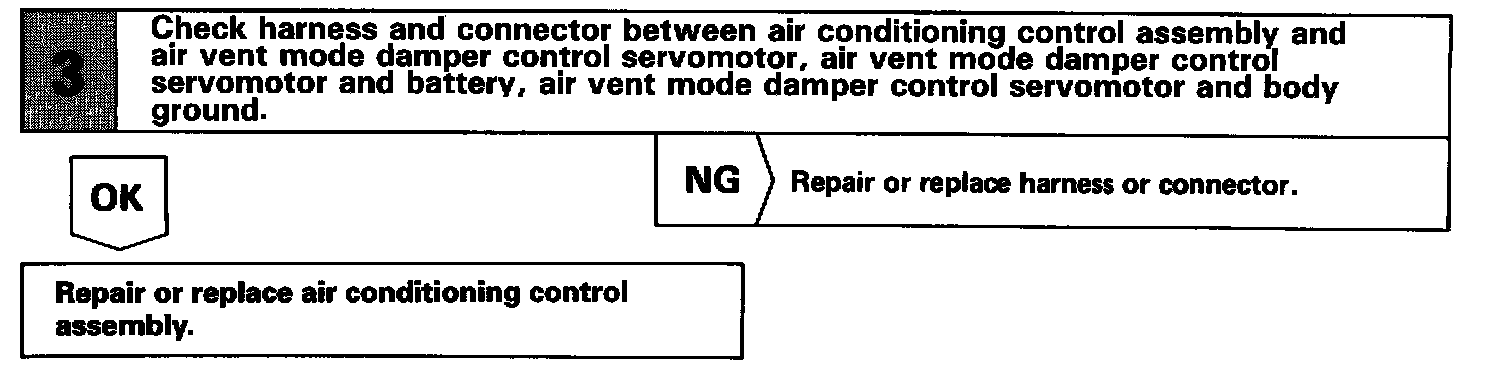

Step 3:
