Engine Mount: Service and Repair

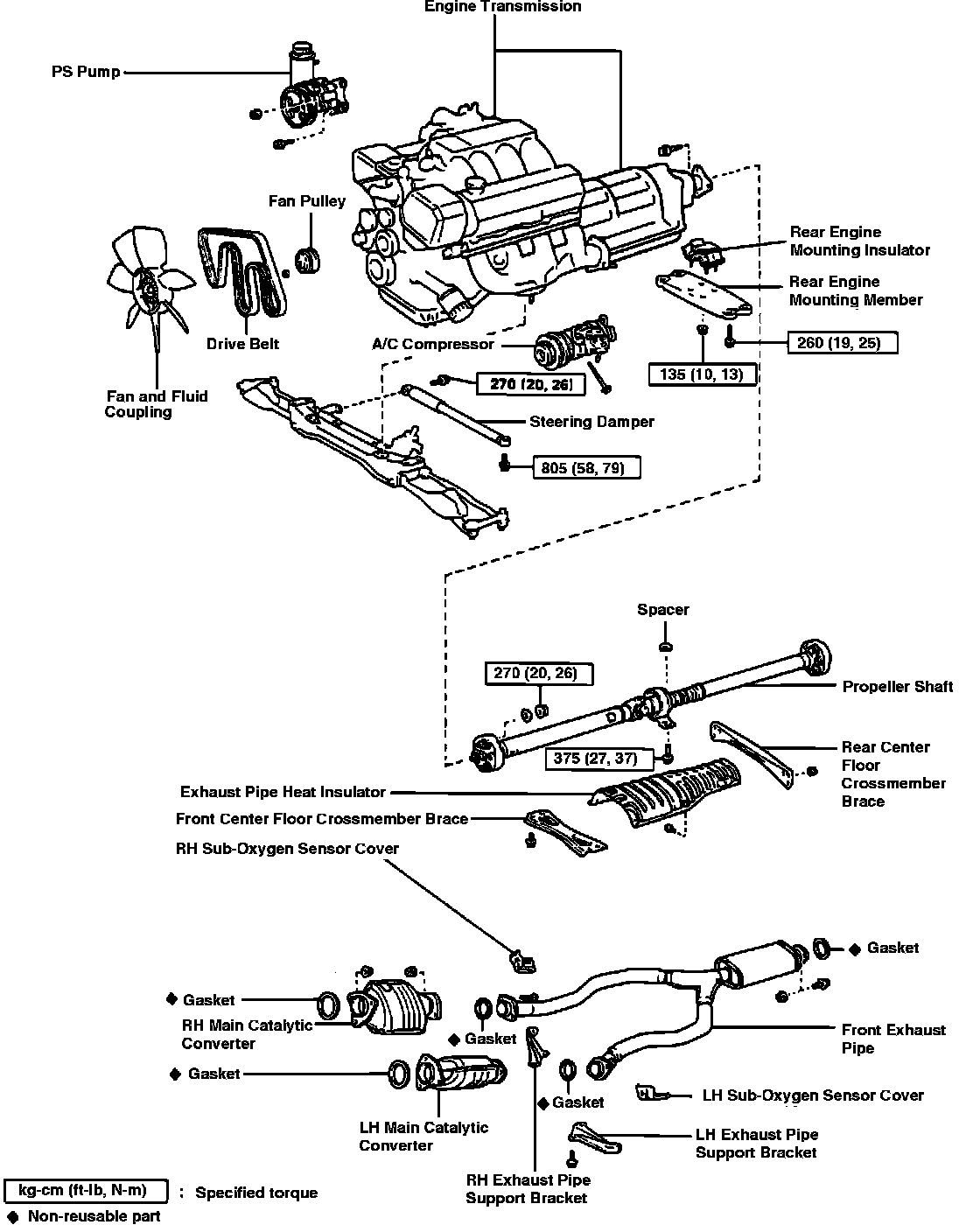

Fig. 1 Engine Removal Component Locations:

Fig. 2 Engine Mount Removal:

The engine mounting insulators are located at each side of the engine block. Refer to Figs. 1 and 2 when removing the mounts.
