Wiring Diagram

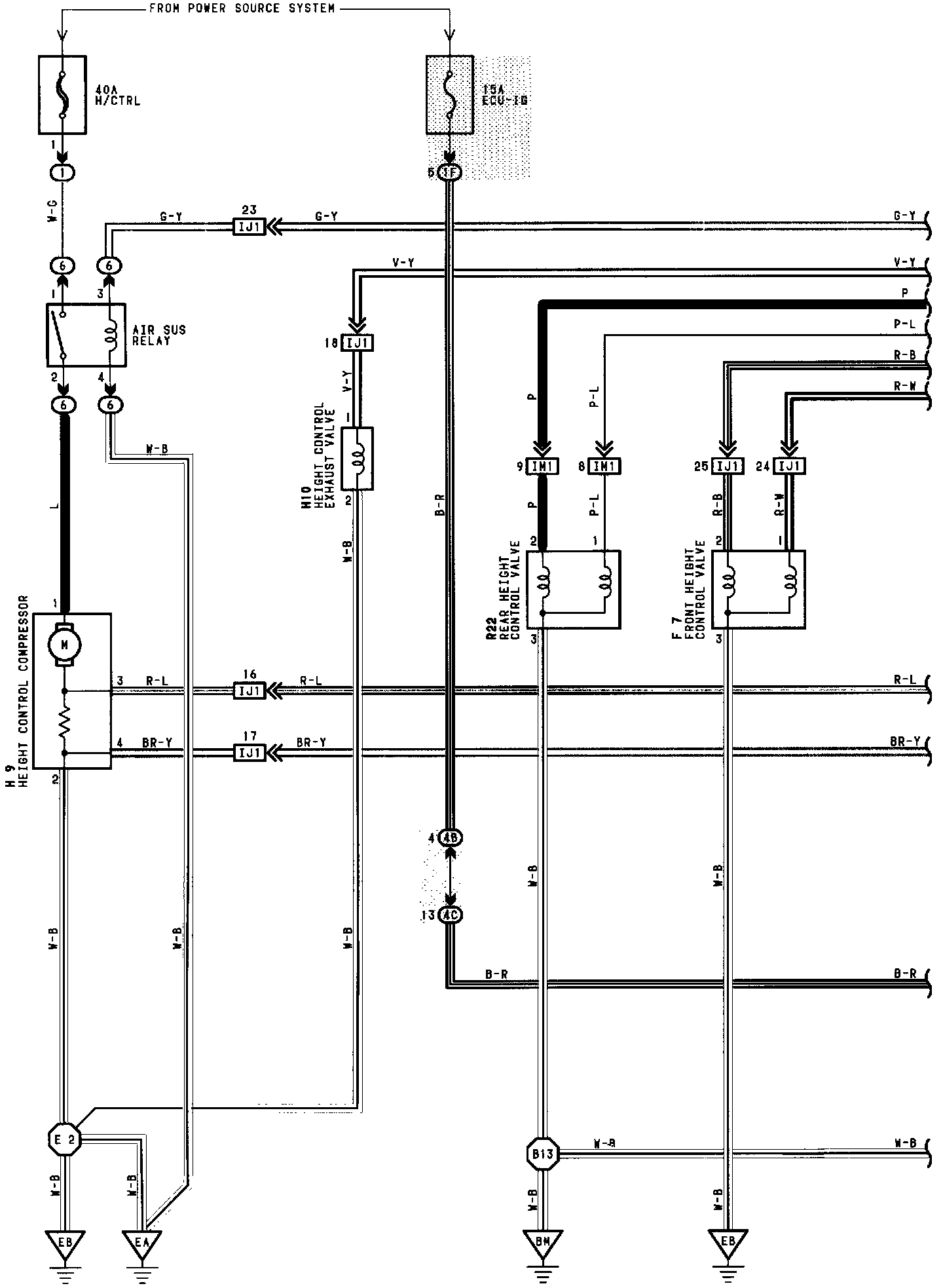

Electronically Modulated Air Suspension (Part 1 Of 5):

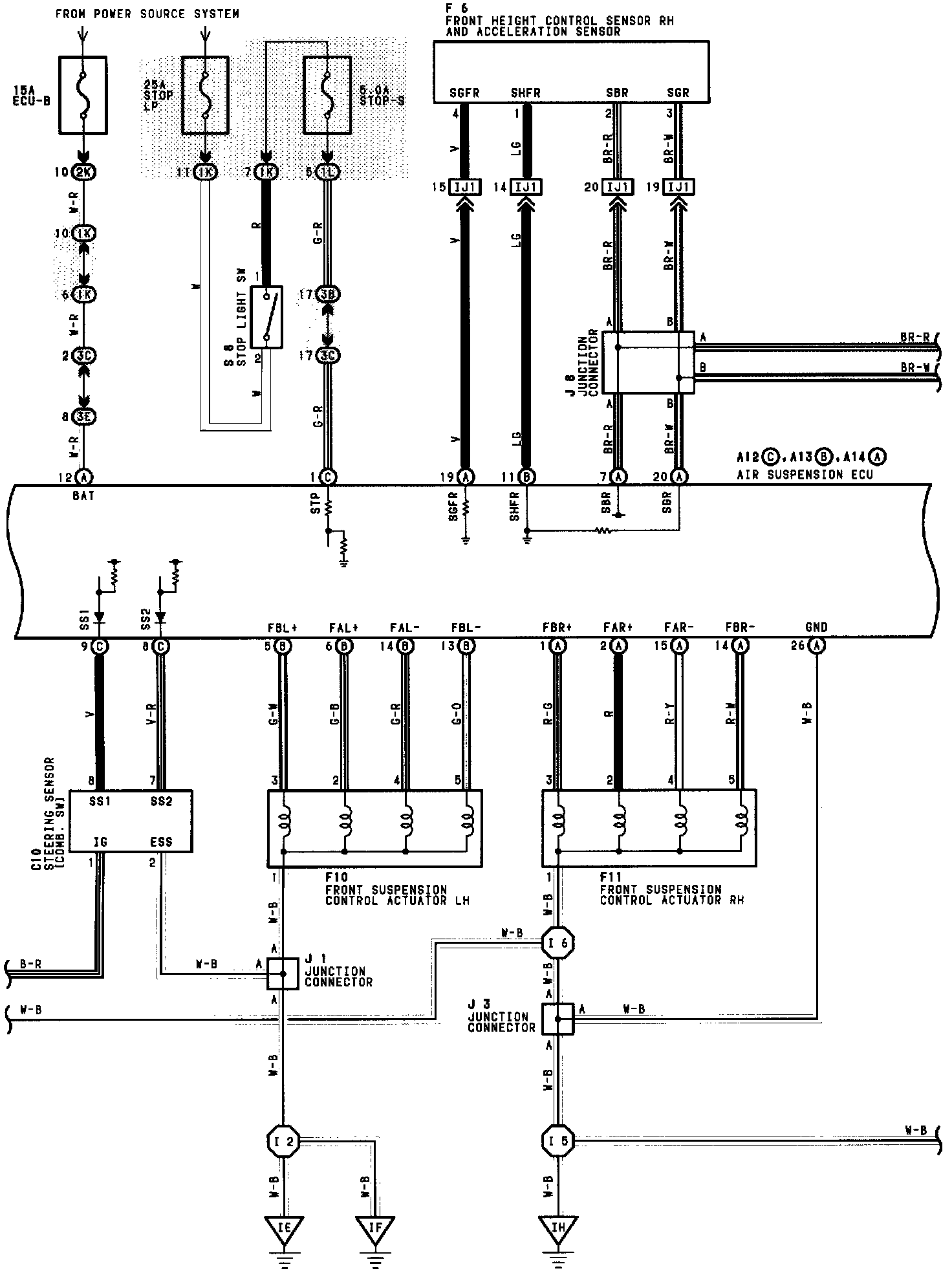

Electronically Modulated Air Suspension (Part 2 Of 5):

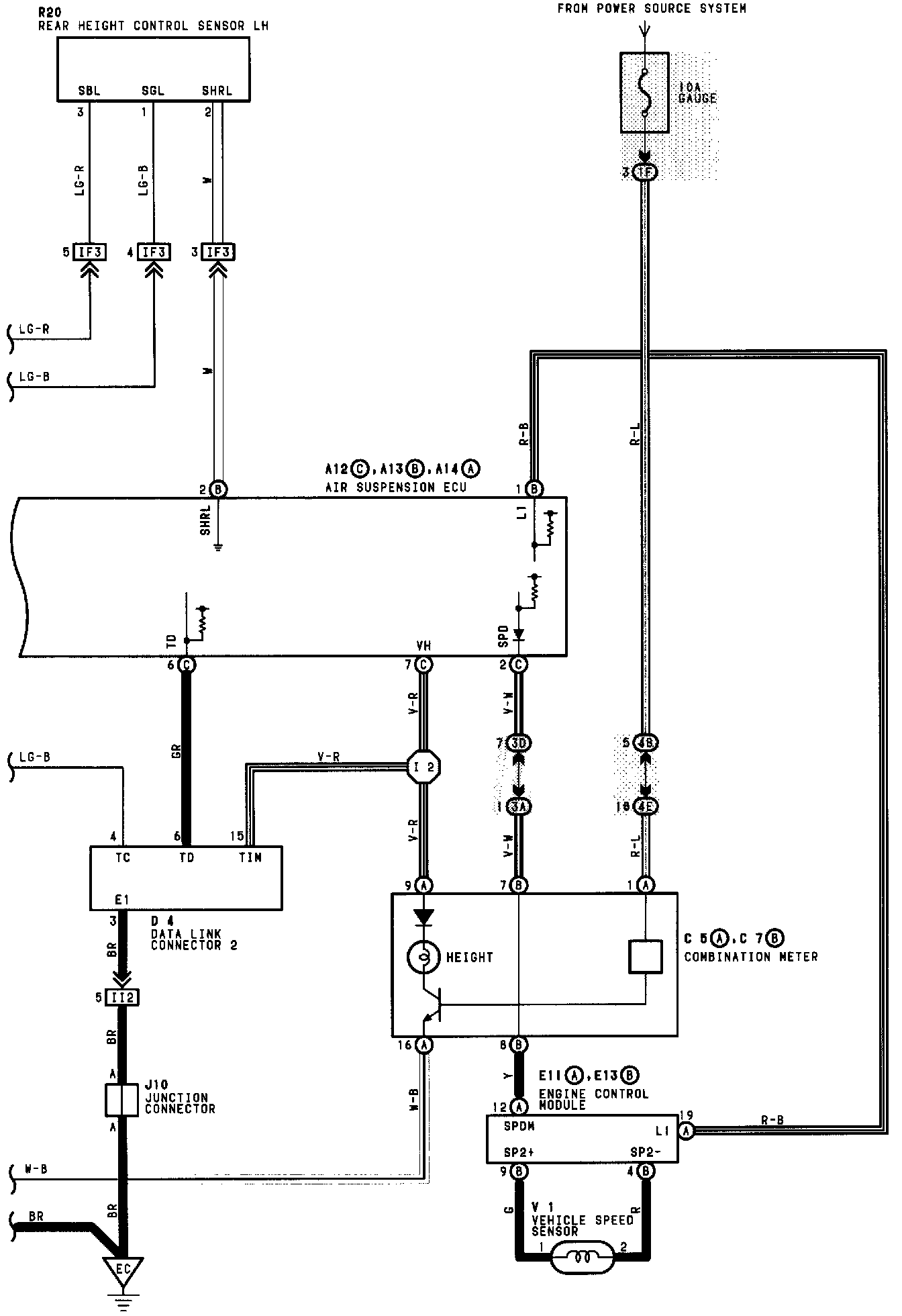

Electronically Modulated Air Suspension (Part 3 Of 5):

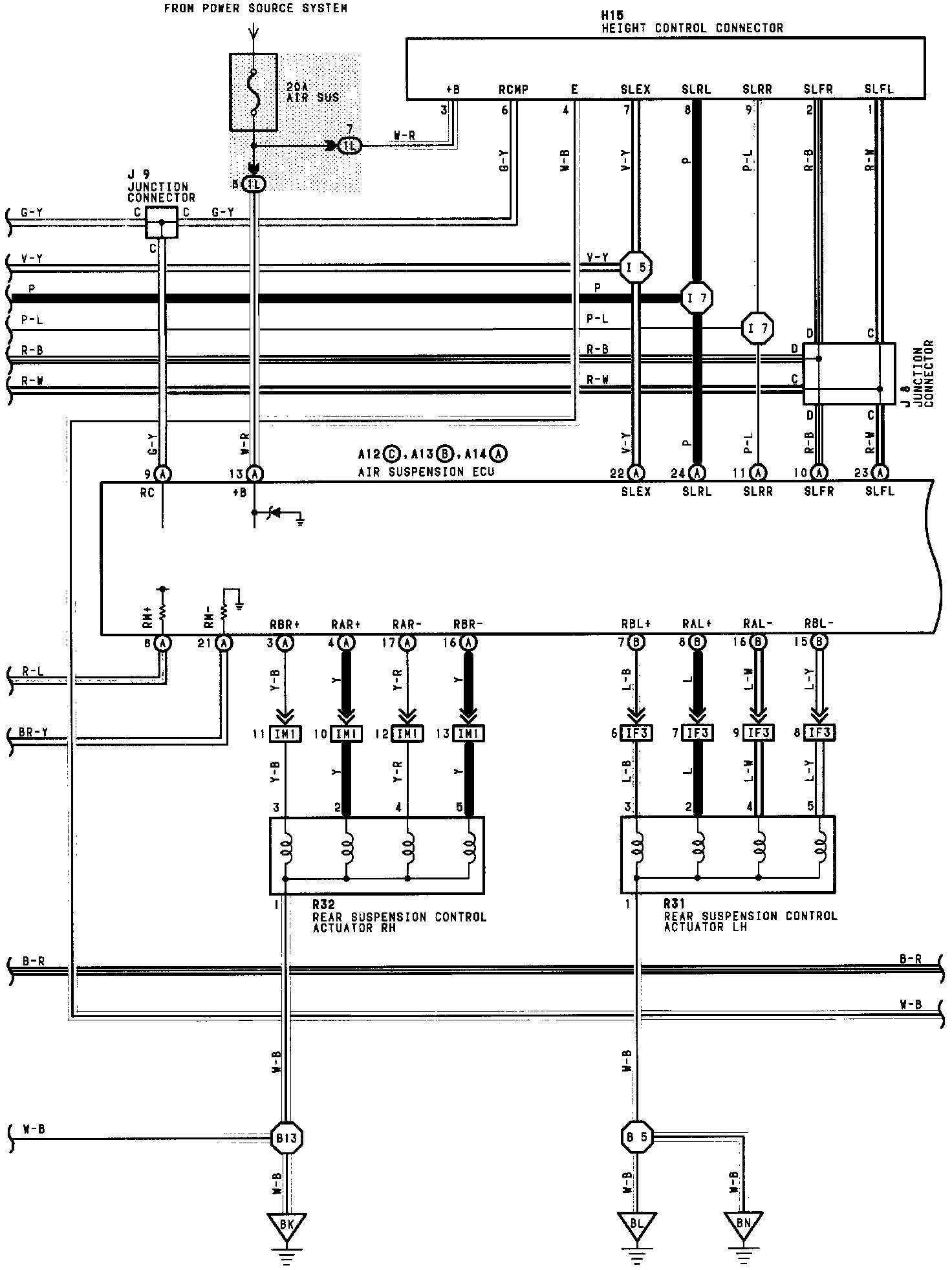

Electronically Modulated Air Suspension (Part 4 Of 5):

Electronically Modulated Air Suspension (Part 5 Of 5):
