System Diagram
System Diagram

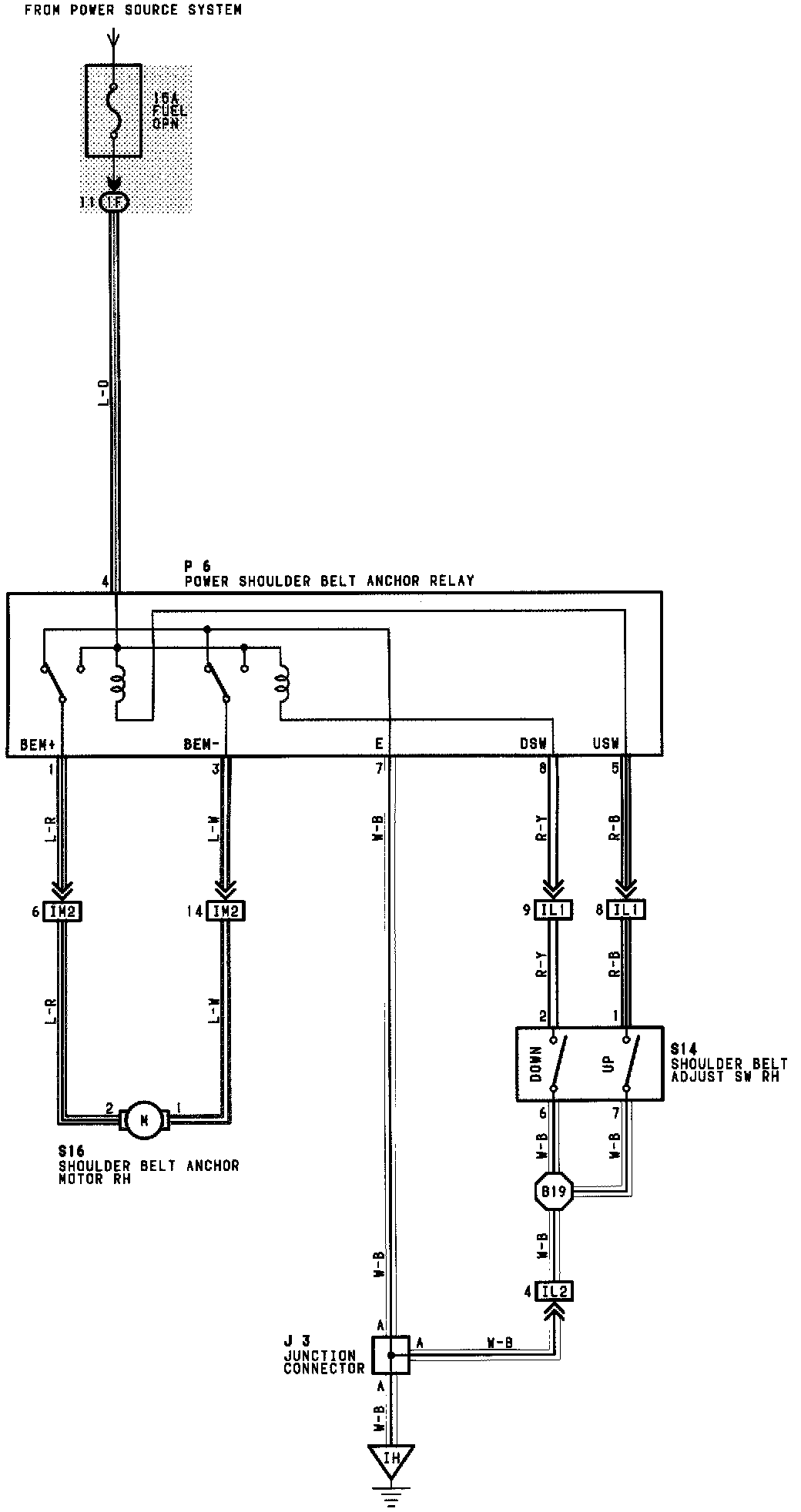

Power Shoulder Belt Anchorage (With Memory) (Part 1 Of 2):

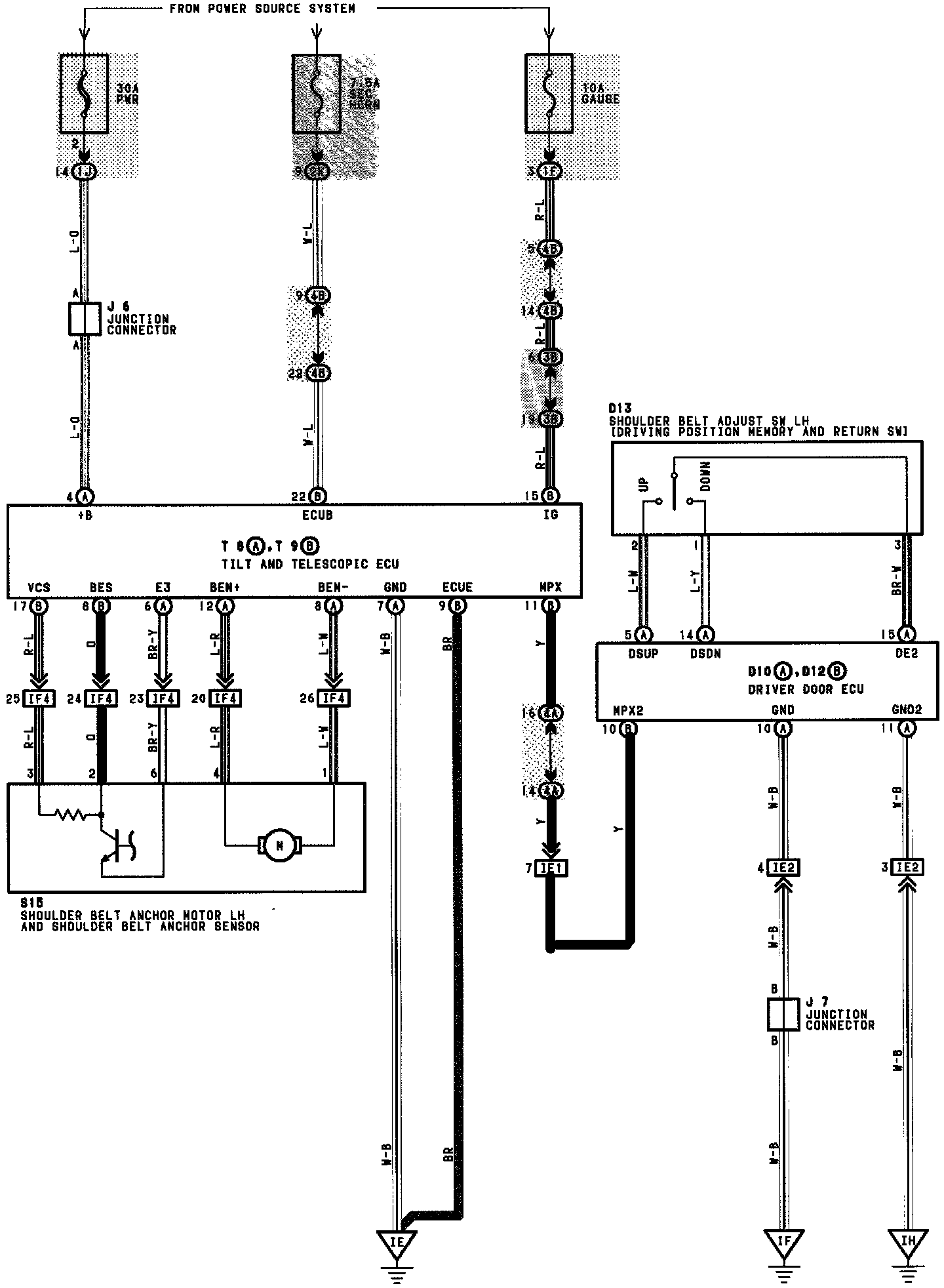

Power Shoulder Belt Anchorage (With Memory) (Part 2 Of 2):
