Home >> Lexus >> 1996 >> LS 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Air Door Actuator / Motor, HVAC >> Mode Control Motor

Mode Control Motor

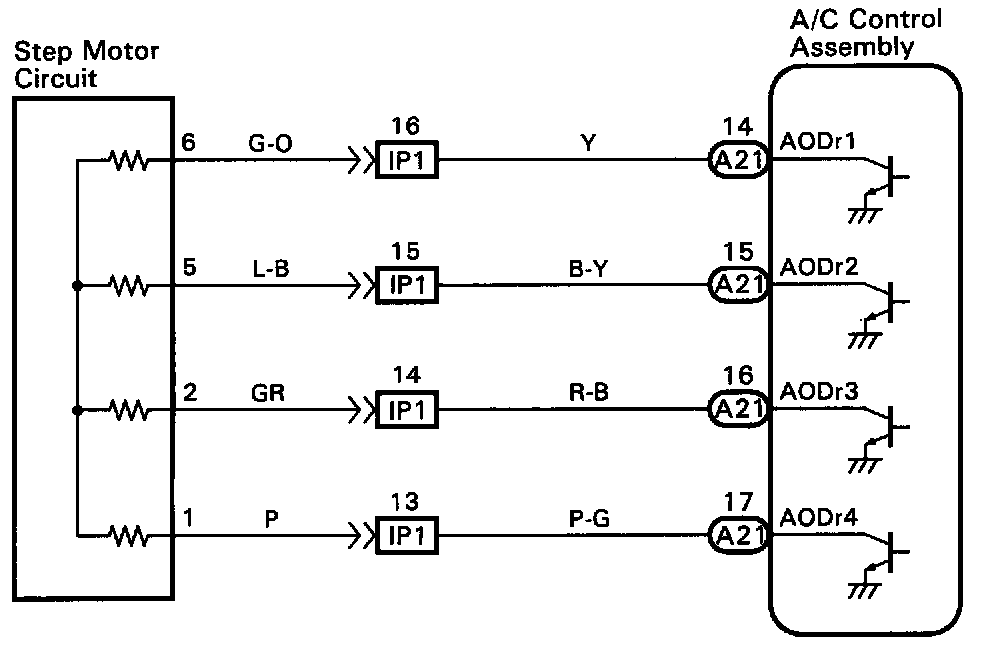

Wiring Diagram - Driver Side:

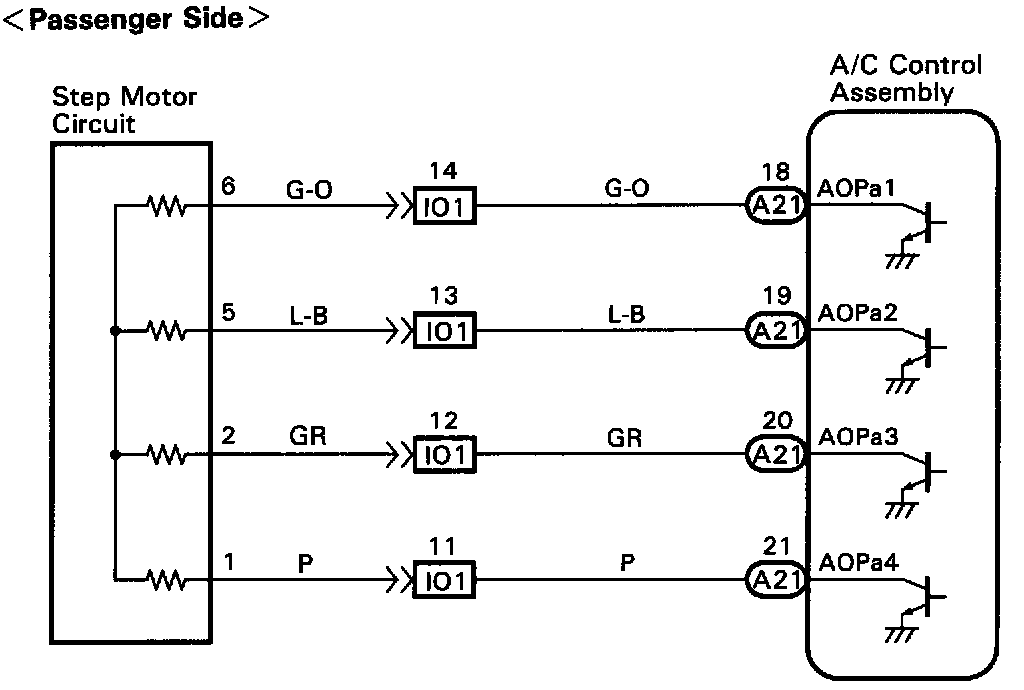

Wiring Diagram - Passenger Side:
