Ground Points

Ground Points:

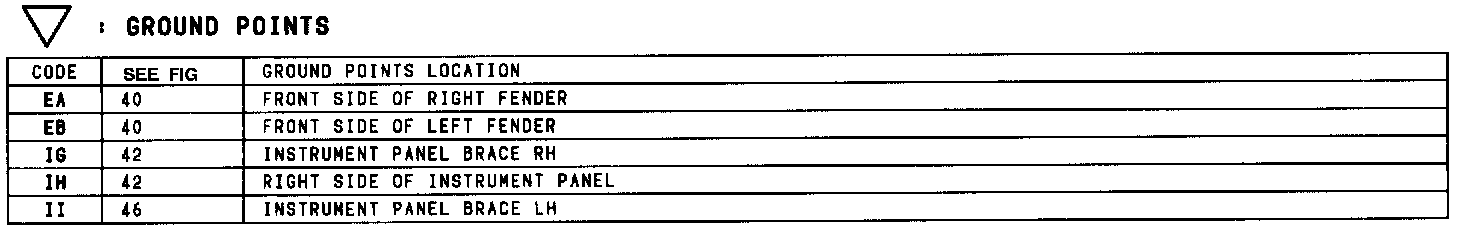

GROUND POINTS

Ground Points In Engine Compartment:




FIG 40

Ground Points In Dash:




FIG 42

Ground Points In Dash (Cont'd):




FIG 46
