Console: Service and Repair

1. REMOVE CONSOLE BOX

HINT: Tape a screwdriver tip before use.

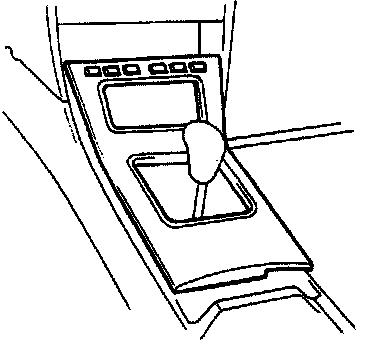

(a) Using the screwdriver, pry out the cluster finish panel, and after disconnecting the connector, remove the Panel.






(b) Using the screwdriver, pry out the lower console cover.
(c) Using the screwdriver, pry out the cover.
(d) Remove the 3 screws and lower console box.

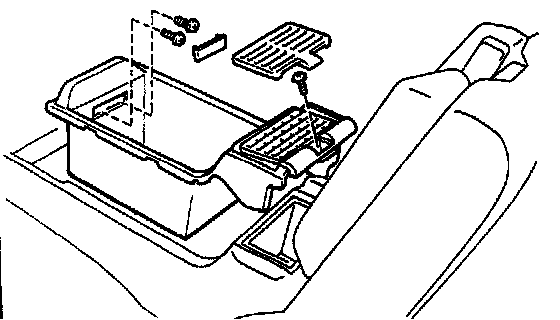

(e) Remove the 4 screws and cup holder.

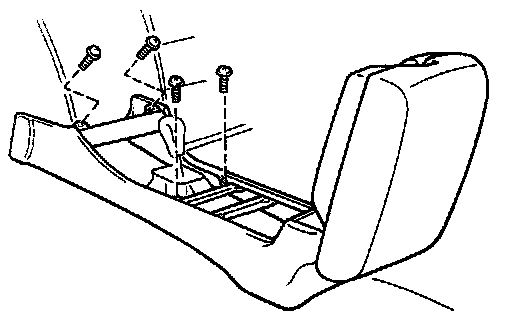

(f) Remove the 4 screws and the console box.
Installation is in the reverse order of removal.
