Rear Door: Adjustments

REAR DOOR ADJUSTMENT

1. REMOVE THESE PARTS:
(a) Front door scuff plate
(b) Rear door scuff plate
(c) Center pillar garnish
(d) Front seat belt retractor bolts

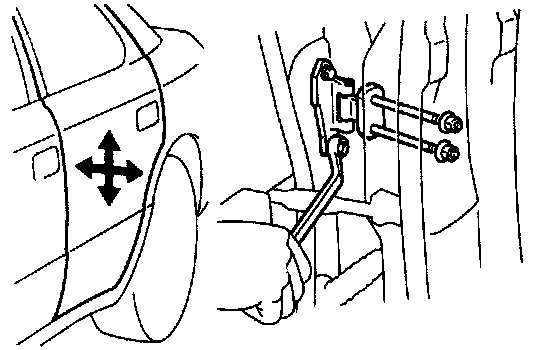

2. ADJUST REAR DOOR IN FORWARD/REARWARD AND VERTICAL DIRECTIONS
Using a wrench, loosen the body side nuts to adjust.





3. ADJUST REAR DOOR IN LEFT/RIGHT VERTICAL DIRECTIONS
Using a wrench, loosen the door side hinge bolts.

4. ADJUST REAR DOOR LOCK STRIKER
Adjust the rear striker in a same manner as the front door.
