Front Door: Adjustments

FRONT DOOR ADJUSTMENT

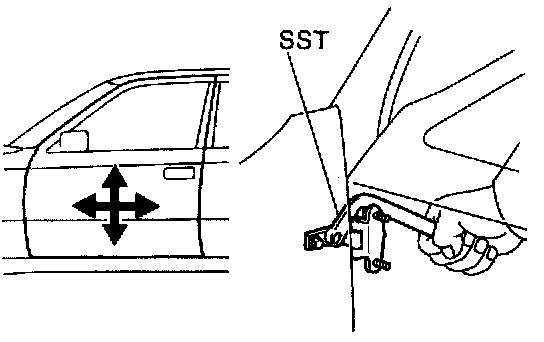

1. ADJUST FRONT DOOR IN FORWARD/REARWARD AND VERTICAL DIRECTIONS
Using SST, adjust the door by loosening the body side hinge nuts. SST 09812-00010

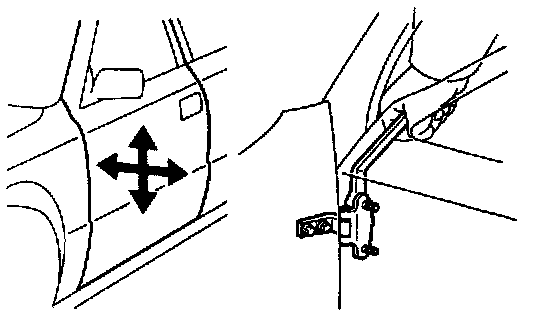

2. ADJUST FRONT DOOR IN LEFT/RIGHT AND VERTICAL DIRECTIONS
Loosen the door side hinge bolts to adjust.

3. ADJUST FRONT DOOR LOCK STRIKER
(a) Check that the door fit and door lock linkages are adjusted correctly.





(b) Using a screwdriver, remove the striker cover. HINT: Tape the screwdriver tip before use.

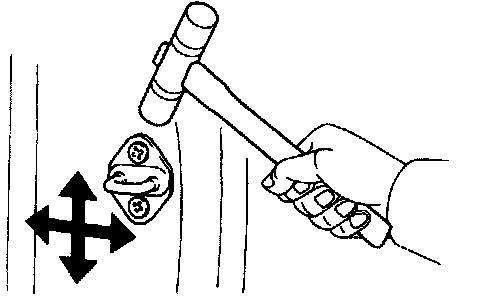

(c) Adjust the striker position by slightly loosening the striker mounting screws, and hitting the striker with a hammer. Tighten the striker mounting screws again.

W/Seat Belt Pretensioner

CAUTION: When adjustment the door lock striker, make sure you have cancelled the safety lock release lever of the seat belt pretensioner.

(d) Install the striker cover.
