Symptom Related Diagnostic Procedures

TROUBLESHOOTING
This system uses the multiplex communication system, so check diagnosis system of the multiplex communication system before you proceed with troubleshooting.

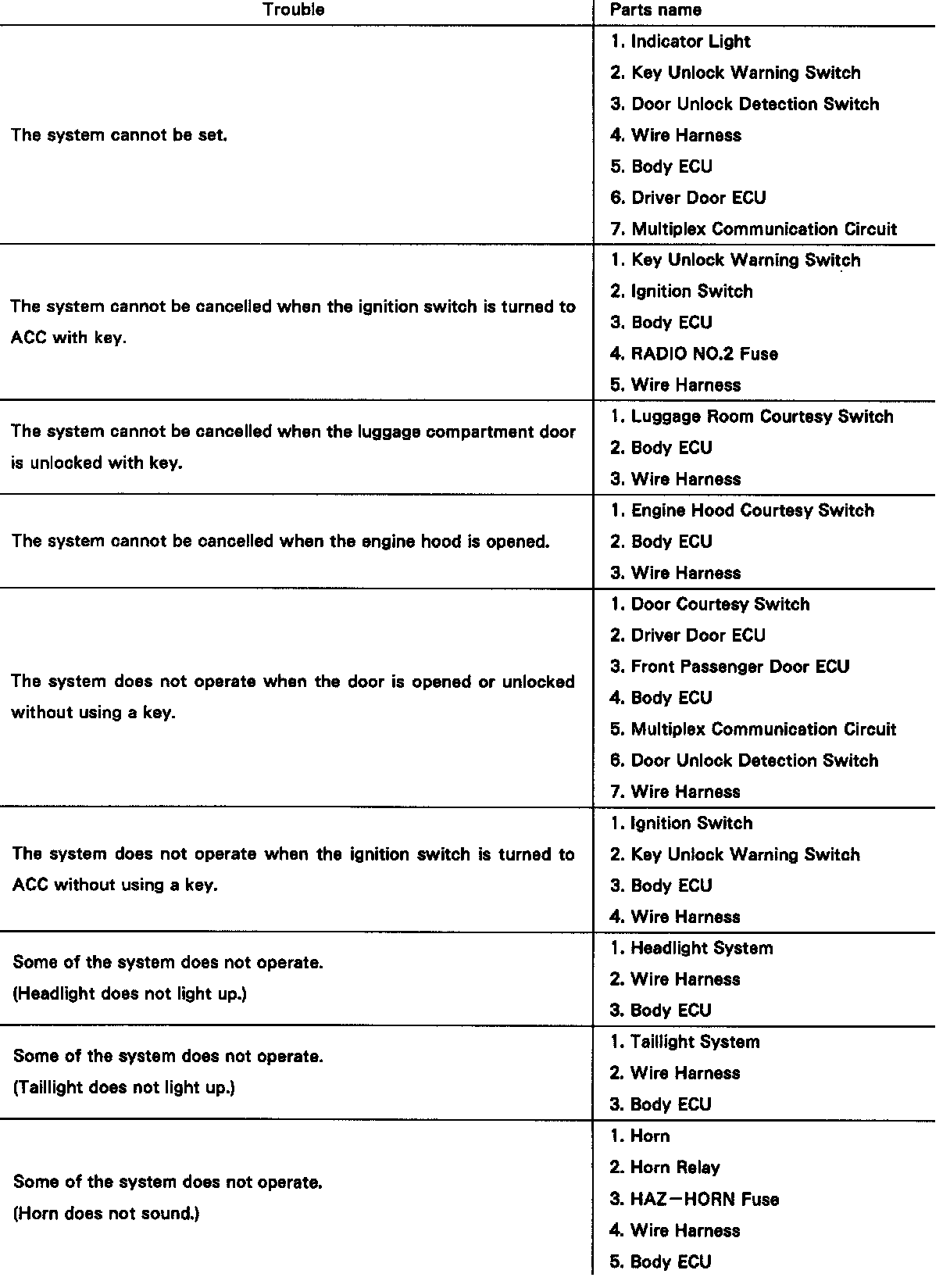

The table below will be useful for you in troubleshooting these electrical problems. The most likely causes of the malfunction are shown in the order of their probability. Inspect each part in the order shown. and replace the part when it is found to be faulty.
