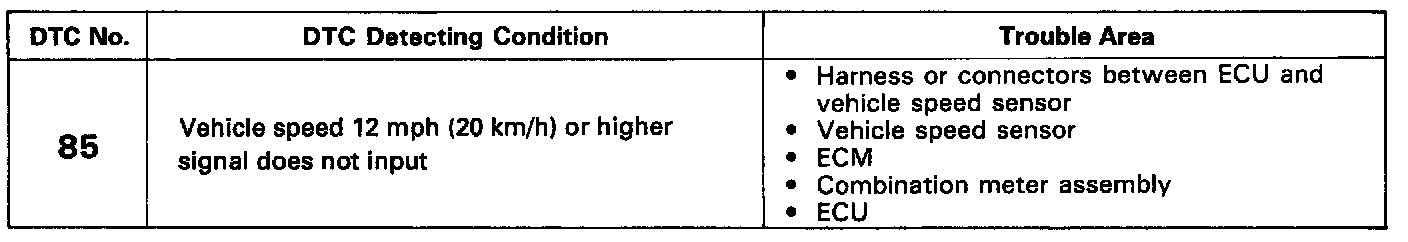

DTC 85

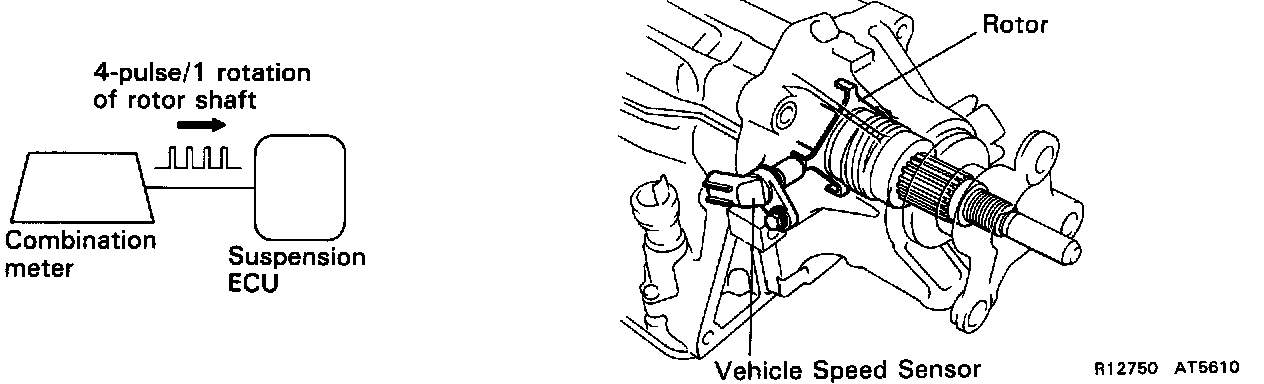

The vehicle speed sensor detects the rotation speed of the transmission output shaft and sends signals to the ECM. This signal is converted inside the meter and sent as a 4 pulses signal to the suspension ECU. The ECU calculates the vehicle speed from this pulse frequency.

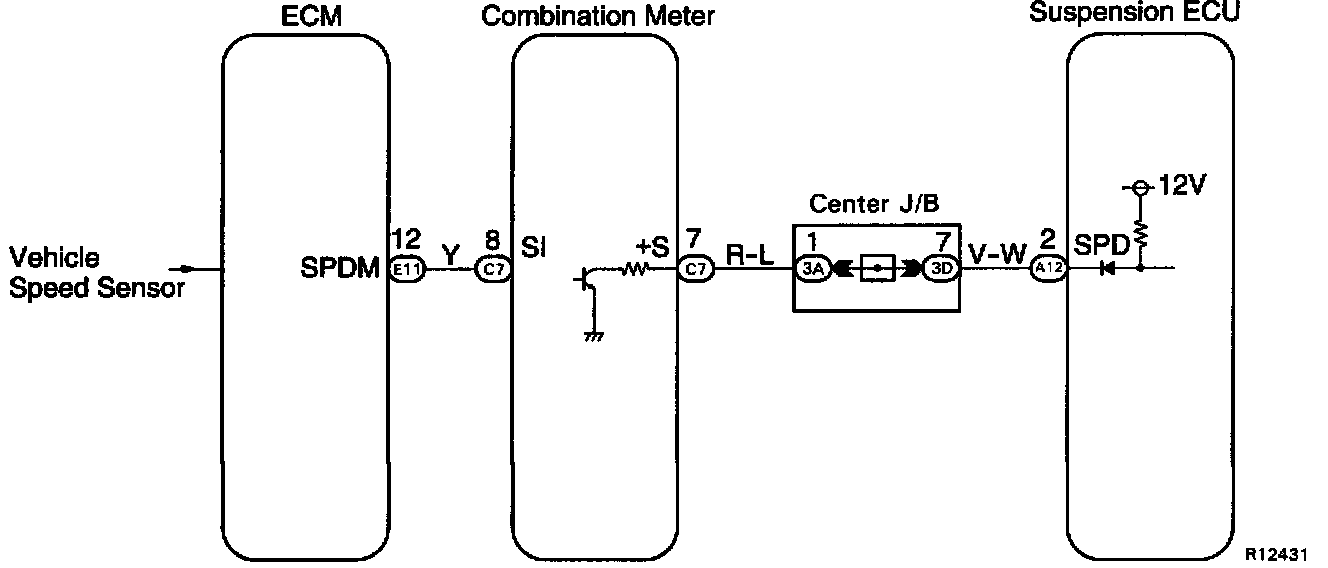

Wiring Diagram:

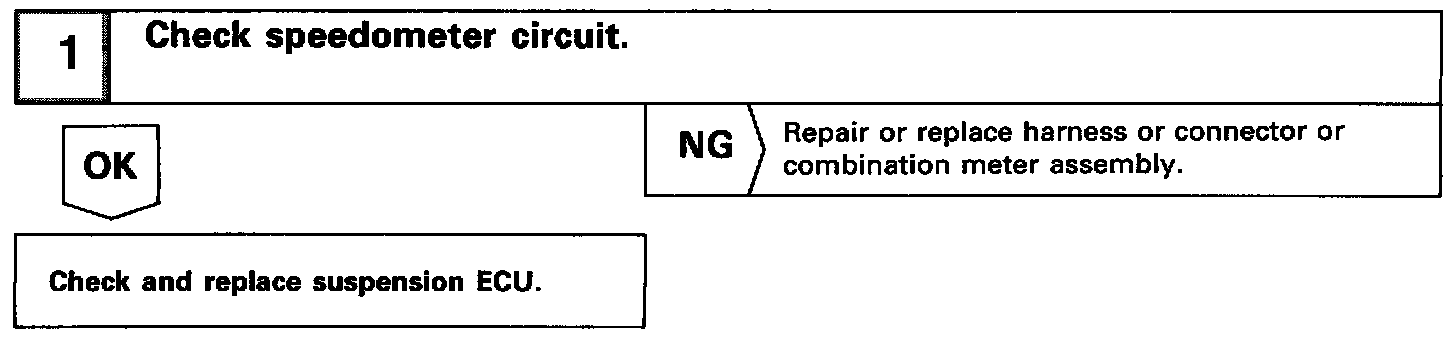

Inspection Procedure:
