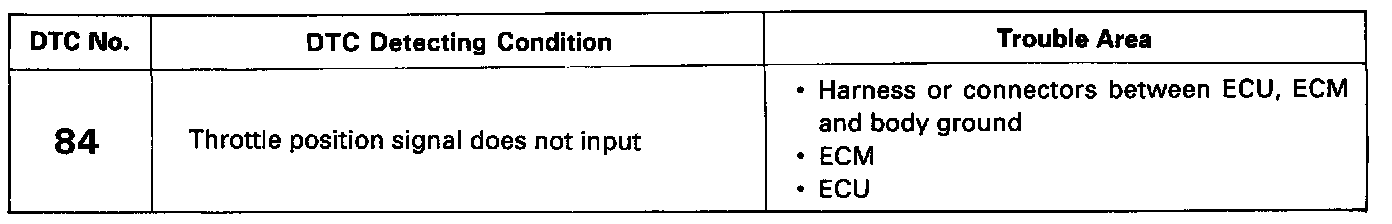

DTC 84

The suspension ECU communicates with the ECM and is sent a signal by ECM when the ECM detects the throttle valve opening angle and opening speed. The suspension ECU uses this signal as one of the operating conditions for Antisquat control.

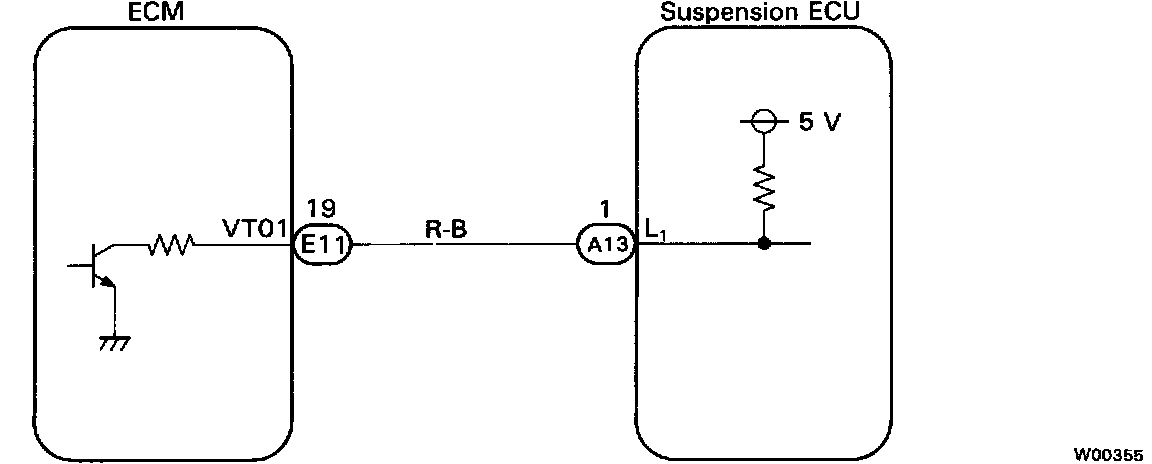

Wiring Diagram:

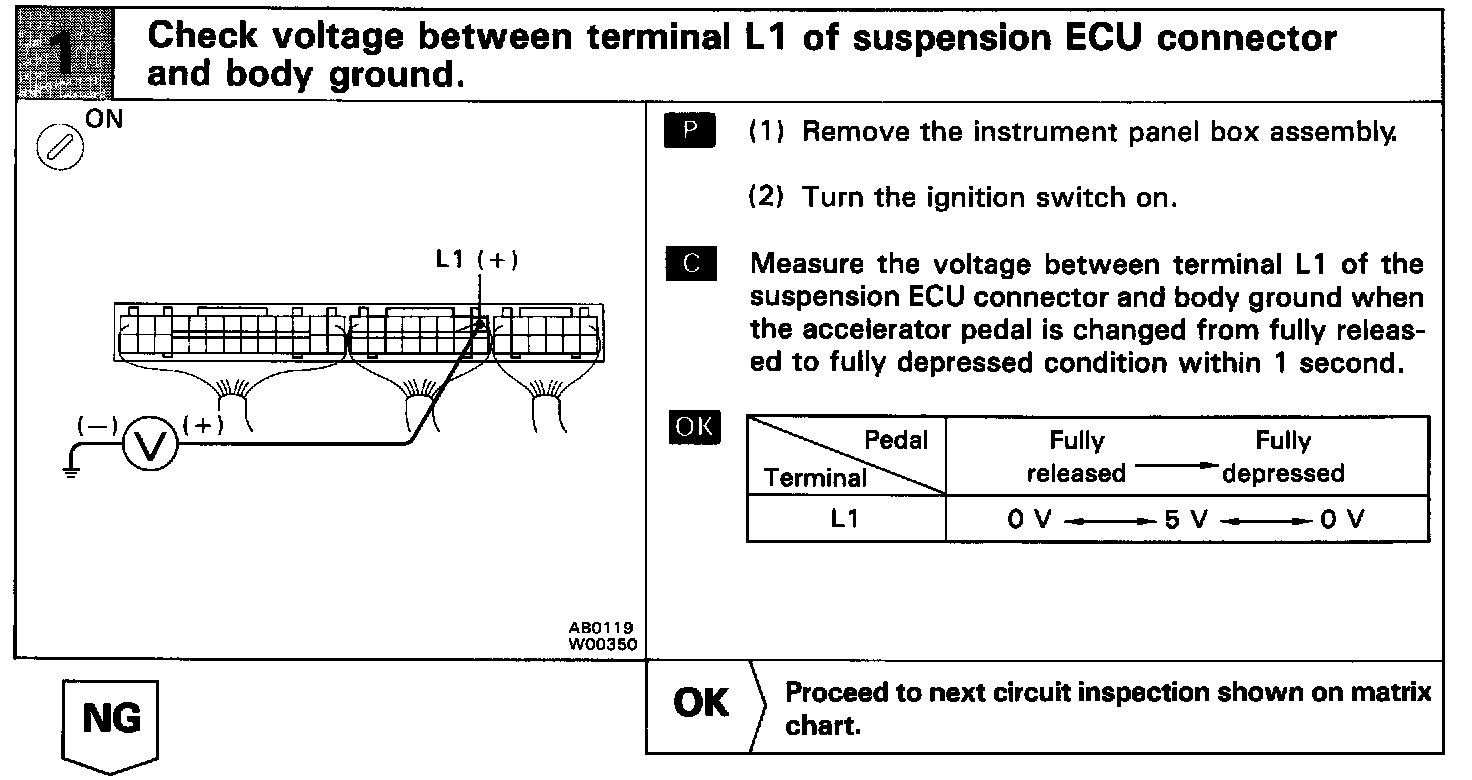

Inspection Procedure - Step 1:

Step 2:

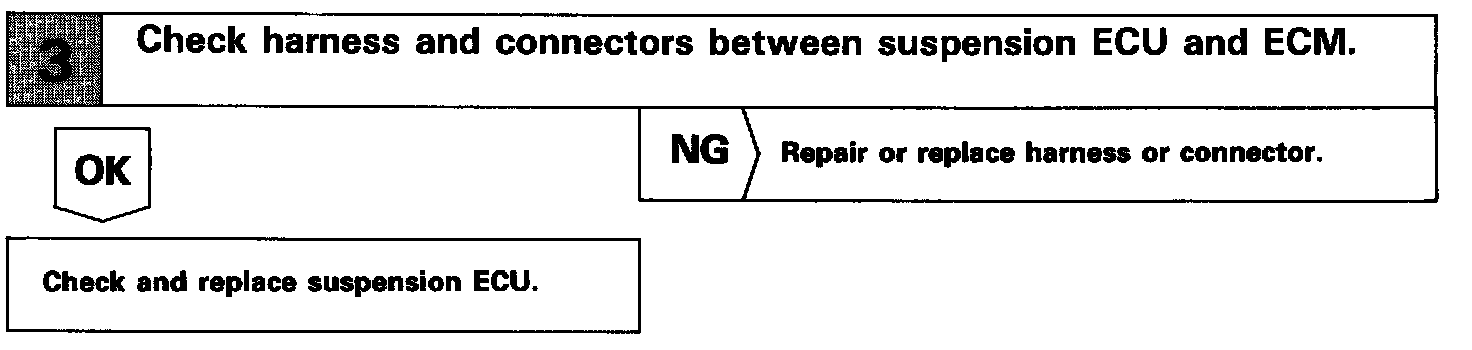

Step 3:

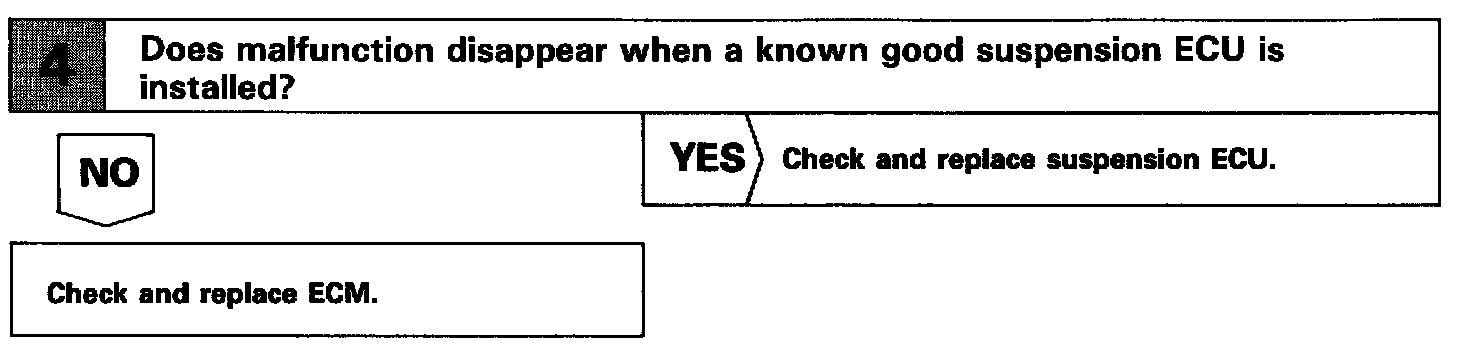

Step 4:
