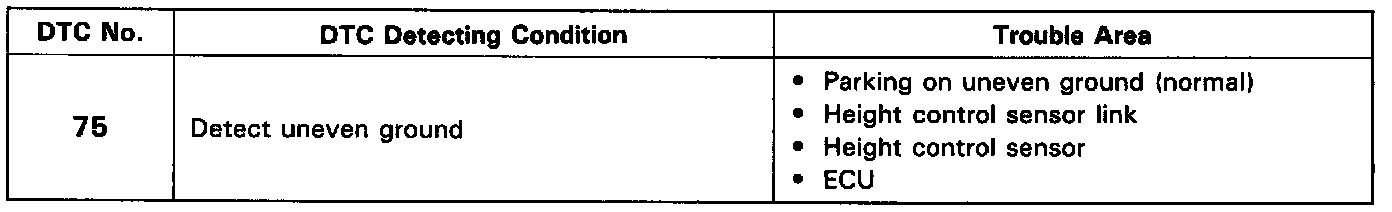

DTC 75





When the ECU stores diagnostic trouble code 75 in memory, vehicle height control is not carried out until a normal signal is input to the ECU from the height control sensor.

However, control is resumed if the ignition switch is turned off, then on again.

Inspection Procedure - Step 1:

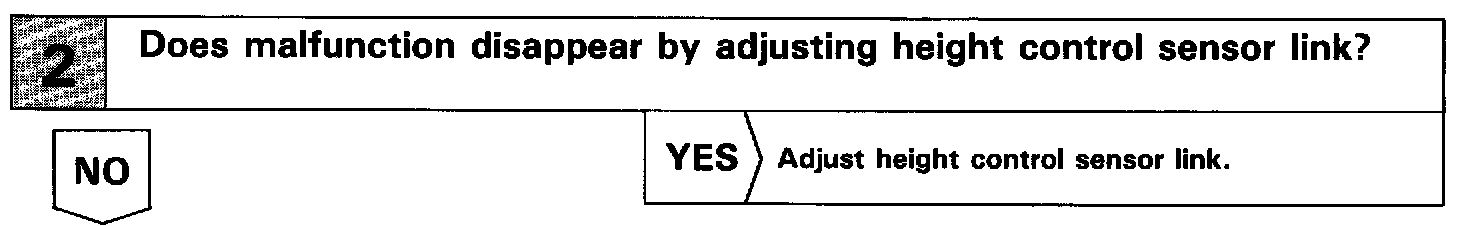

Step 2:

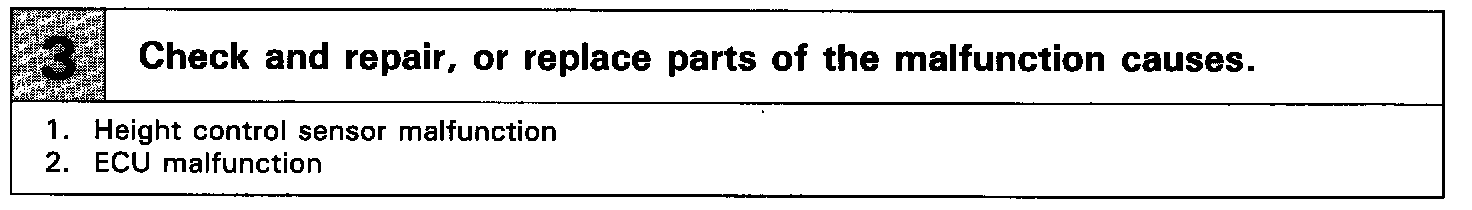

Step 3:
