DTC 14

Circuit Description
The D squib circuit consists of the airbag sensor assembly, spiral cable and the steering wheel pad.
It causes the airbag to deploy when the airbag deployment conditions are satisfied.

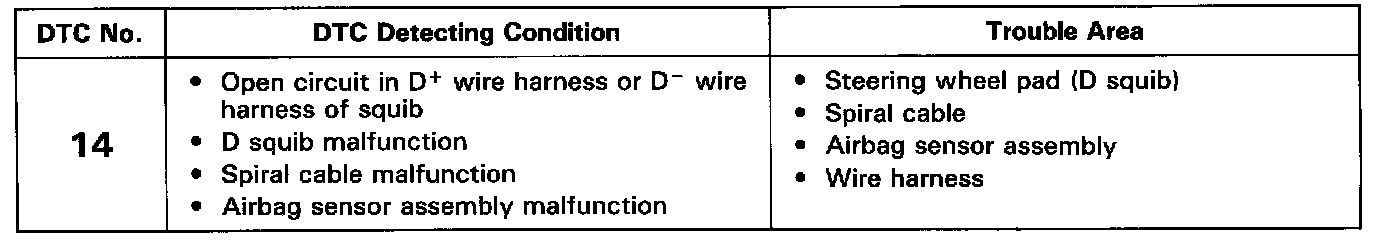

DTC 14 is recorded when an open is detected in the squib circuit.

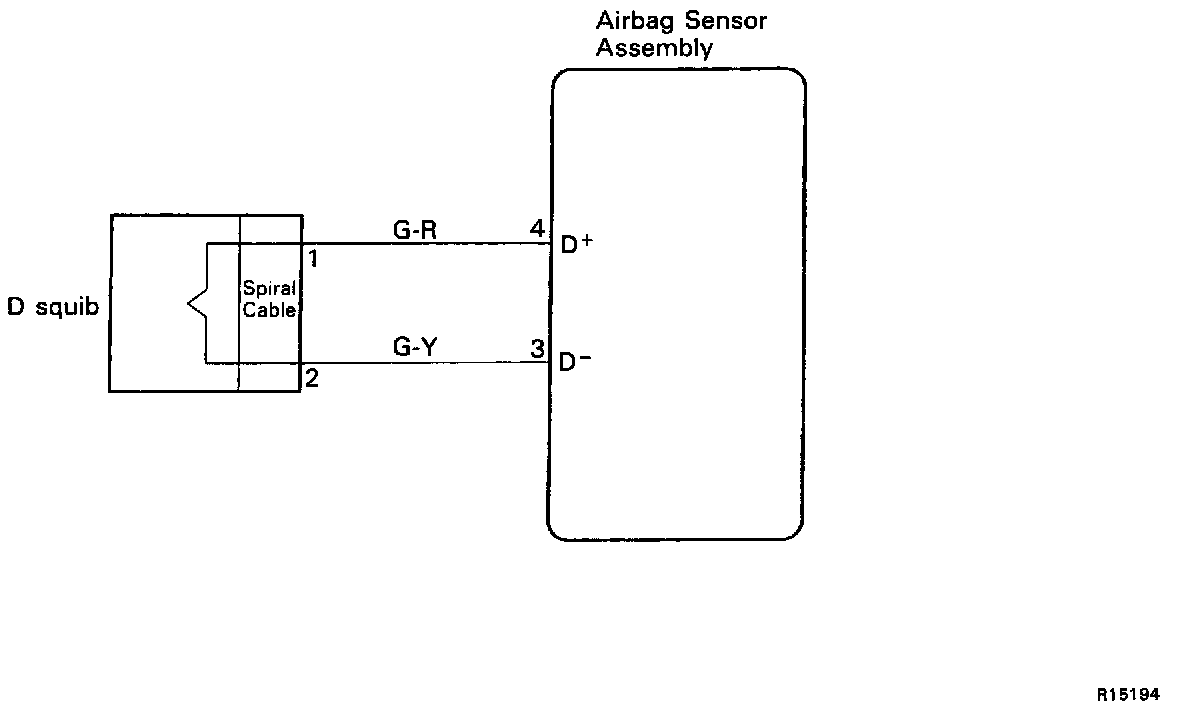

Wiring Diagram:

Inspection Procedures

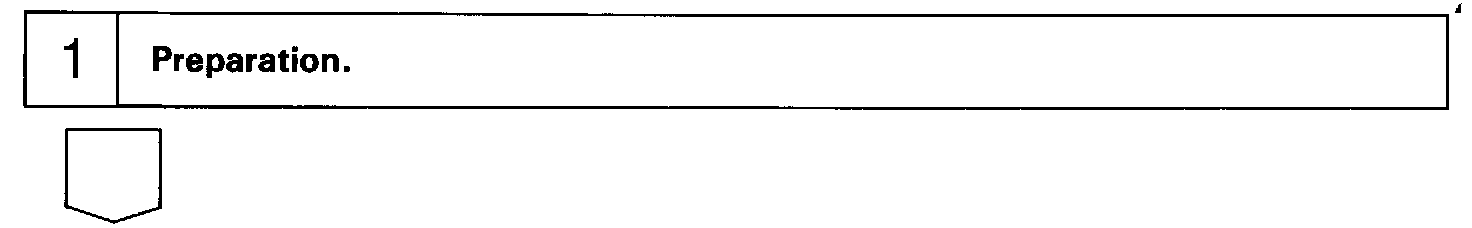

Step 1:

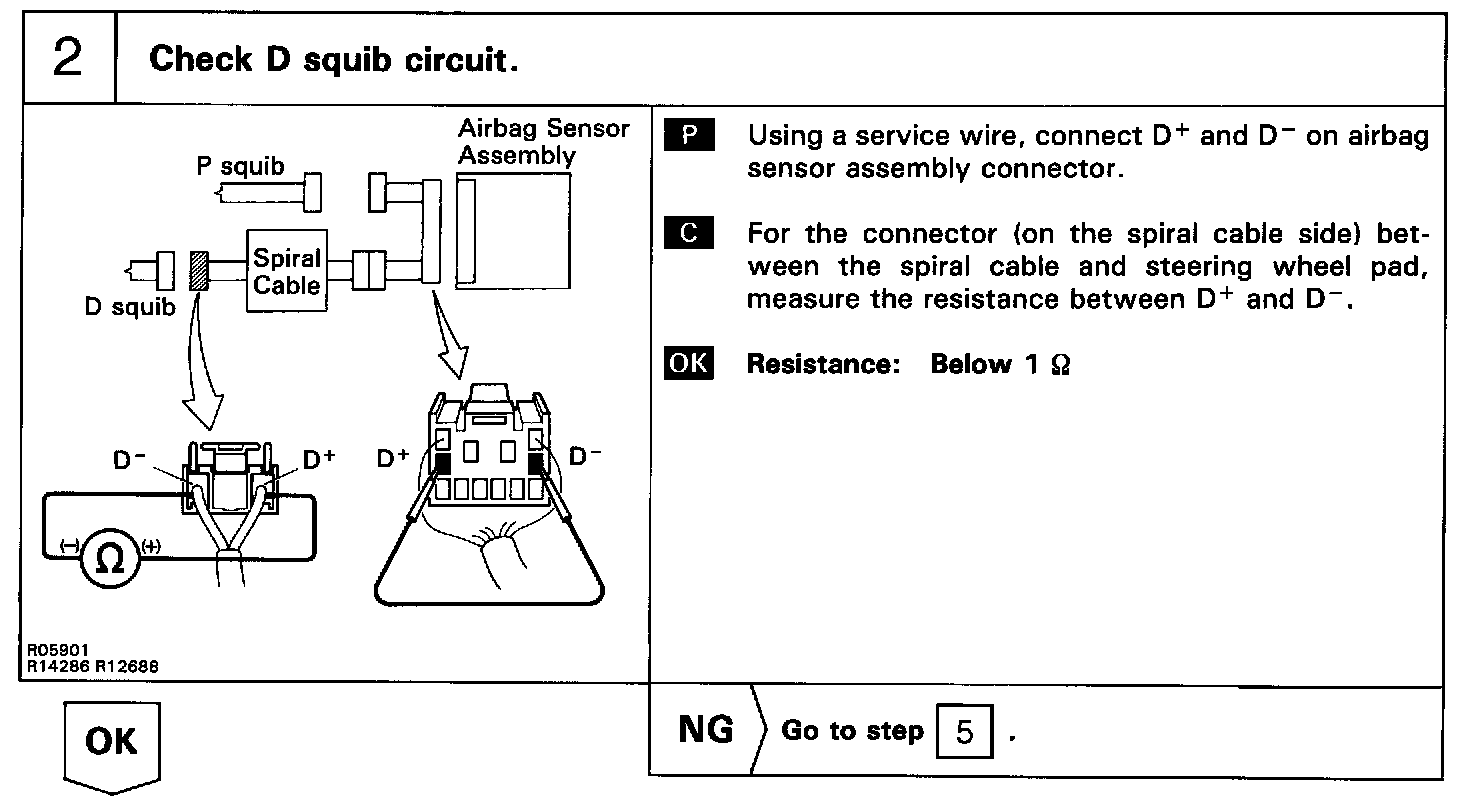

Step 2:

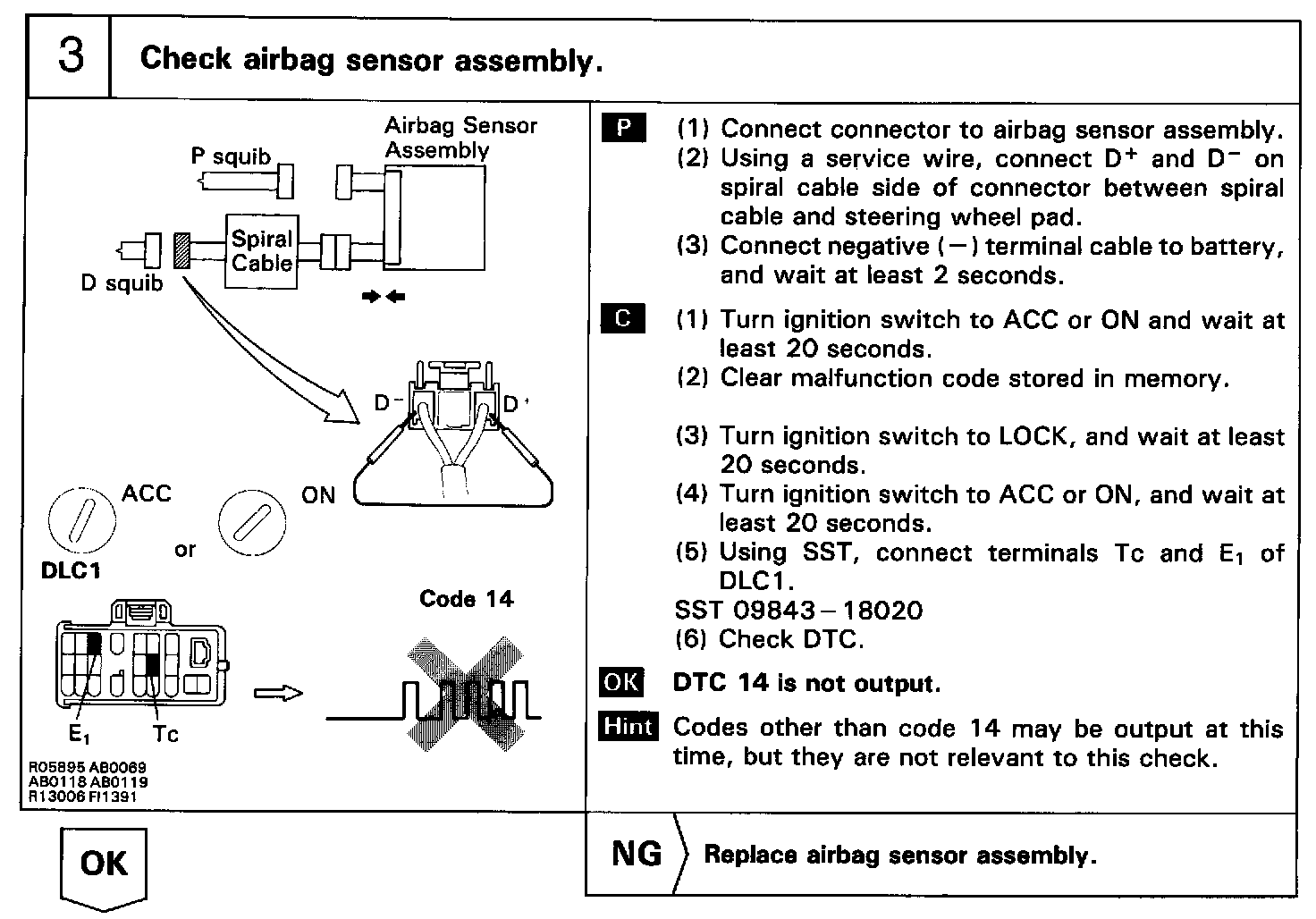

Step 3:

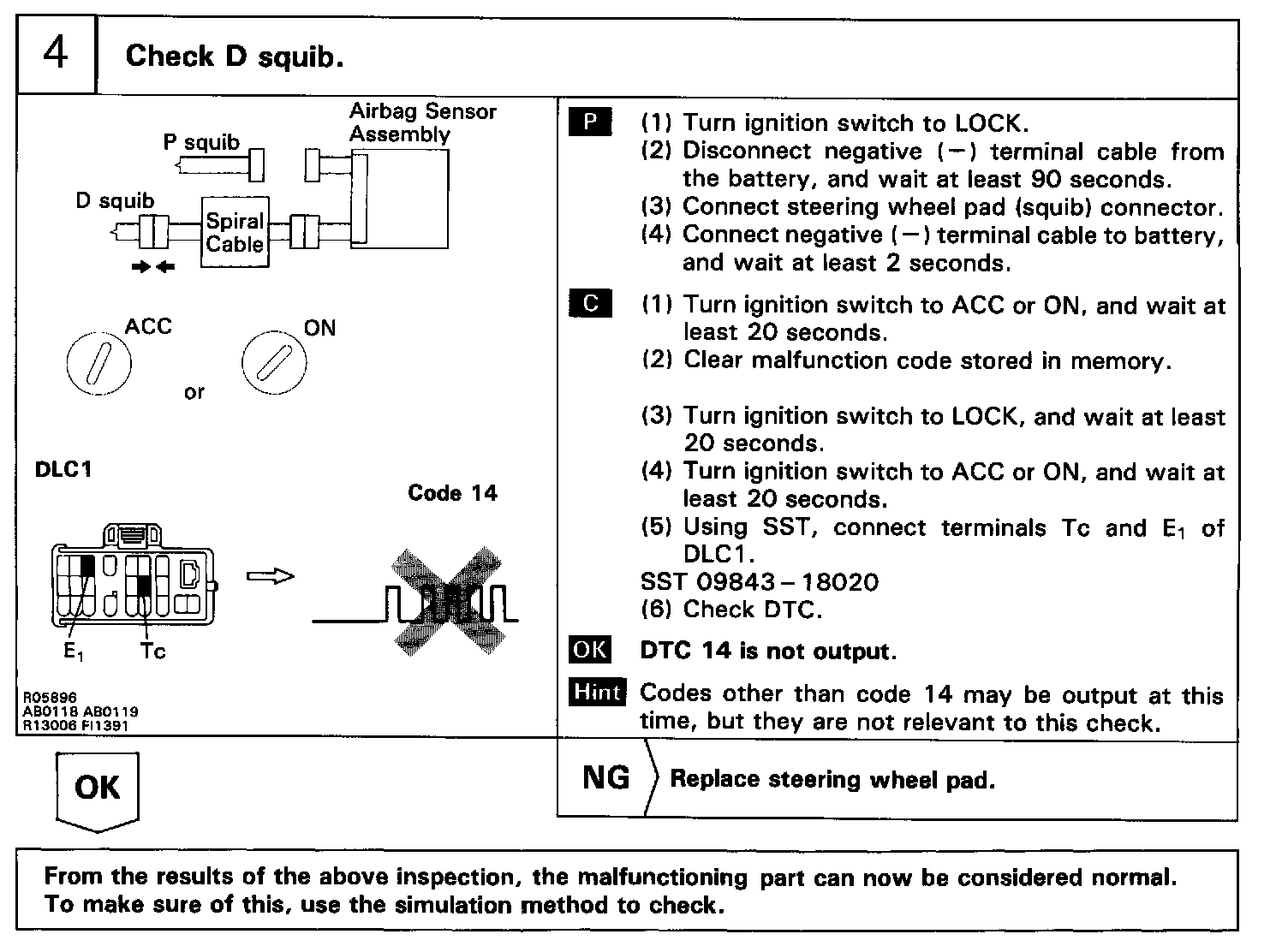

Step 4:

Step 5:

Step 6:
