Home >> Lexus >> 1996 >> LS 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> ABS (Antilock Brake System) >> DTC 41 >> DTC 41 Inspection >> Part 1 of 2

Part 1 of 2

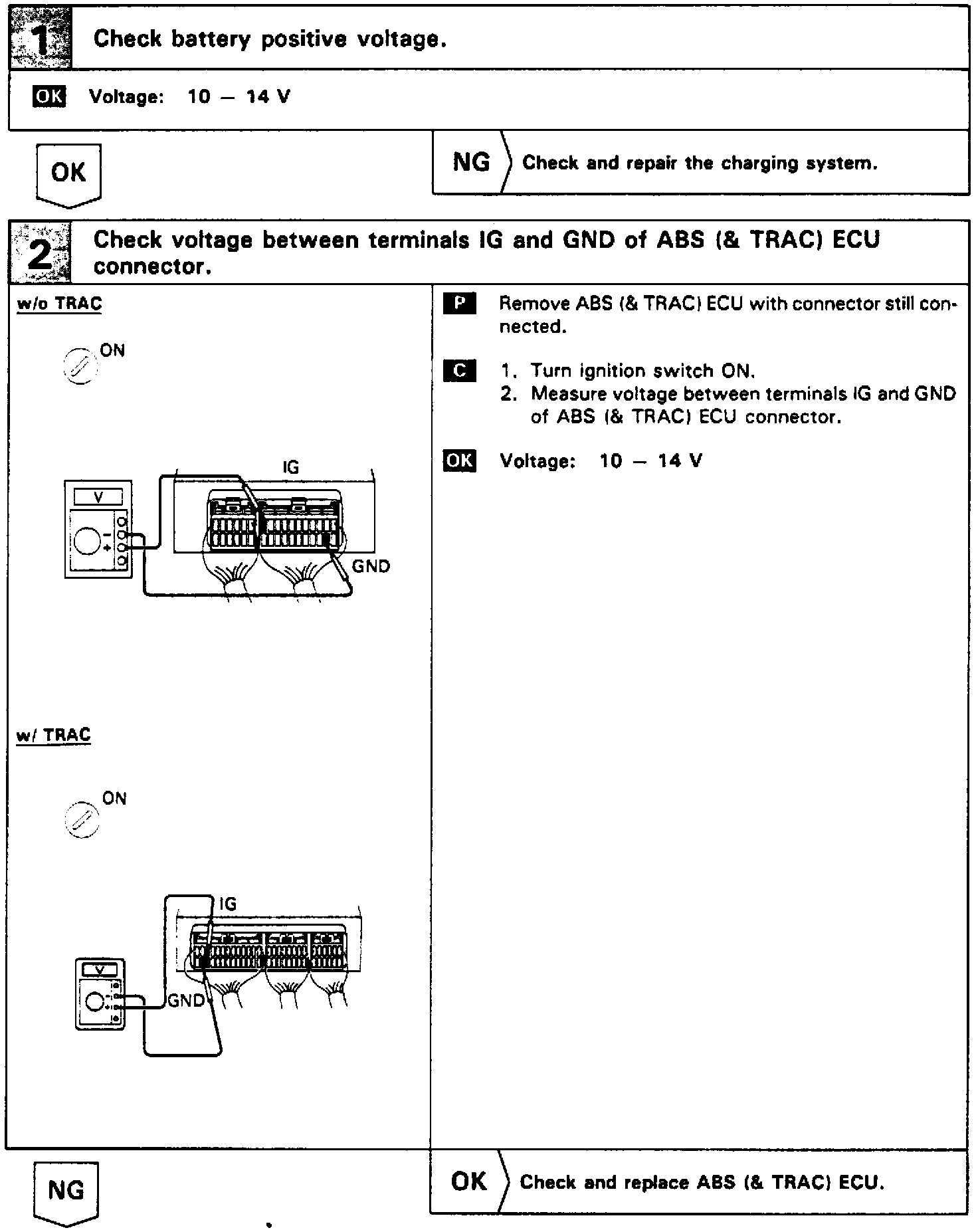

Fig. 89 Code 41: Low Battery Voltage Or Abnormally High Battery Voltage (Part 1 Of 2):
