SAE Controlled Trouble Codes

HINT: Parameters listed in the chart may not be exactly the same as your reading due to the type of instrument or other factors.

If a malfunction code is displayed during the DTC check in check mode, check the circuit for that code listed in the table below, for details of each code, turn to the page referred to under the "See Page" for the respective "DTC No." in the DTC chart.

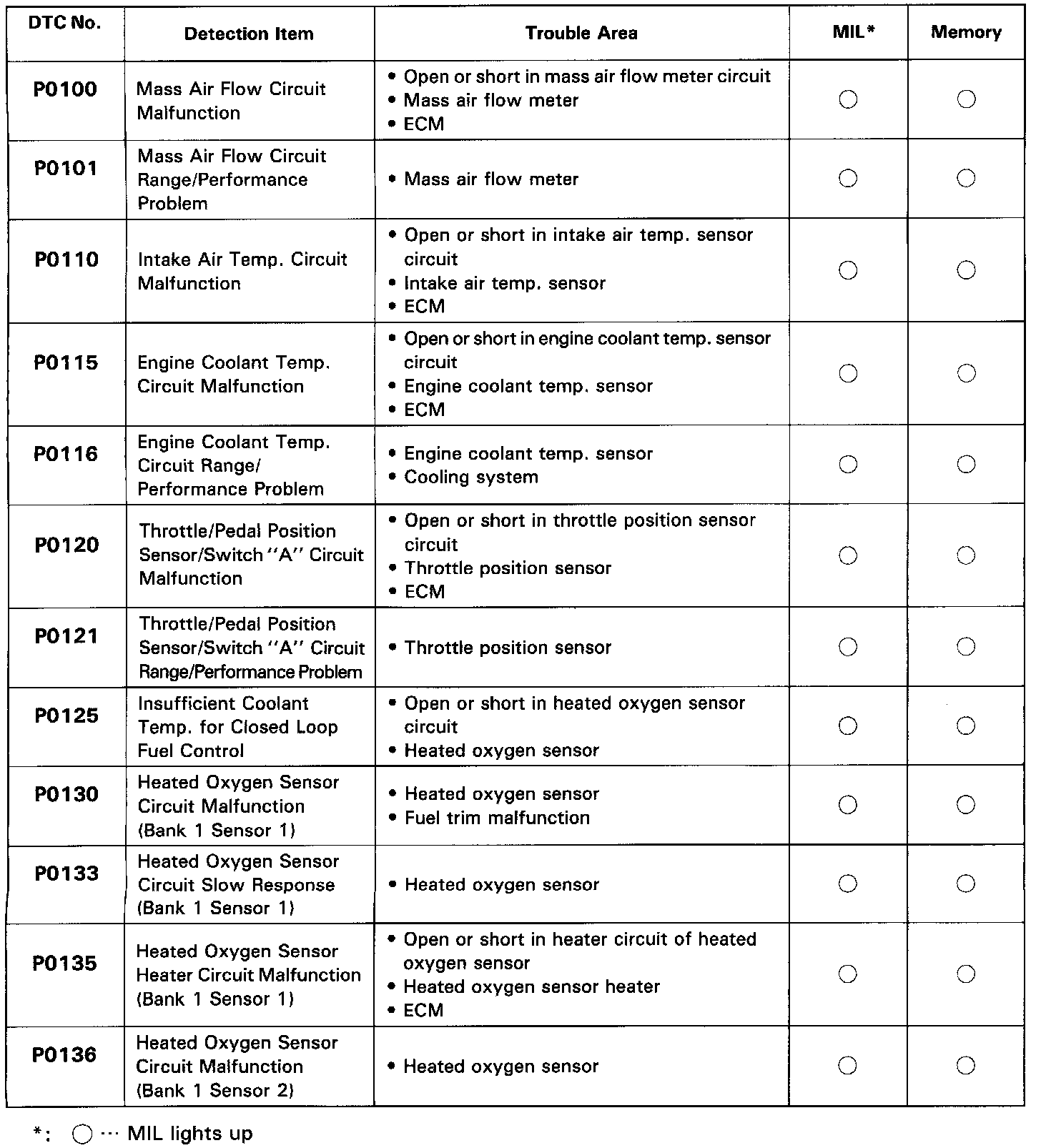

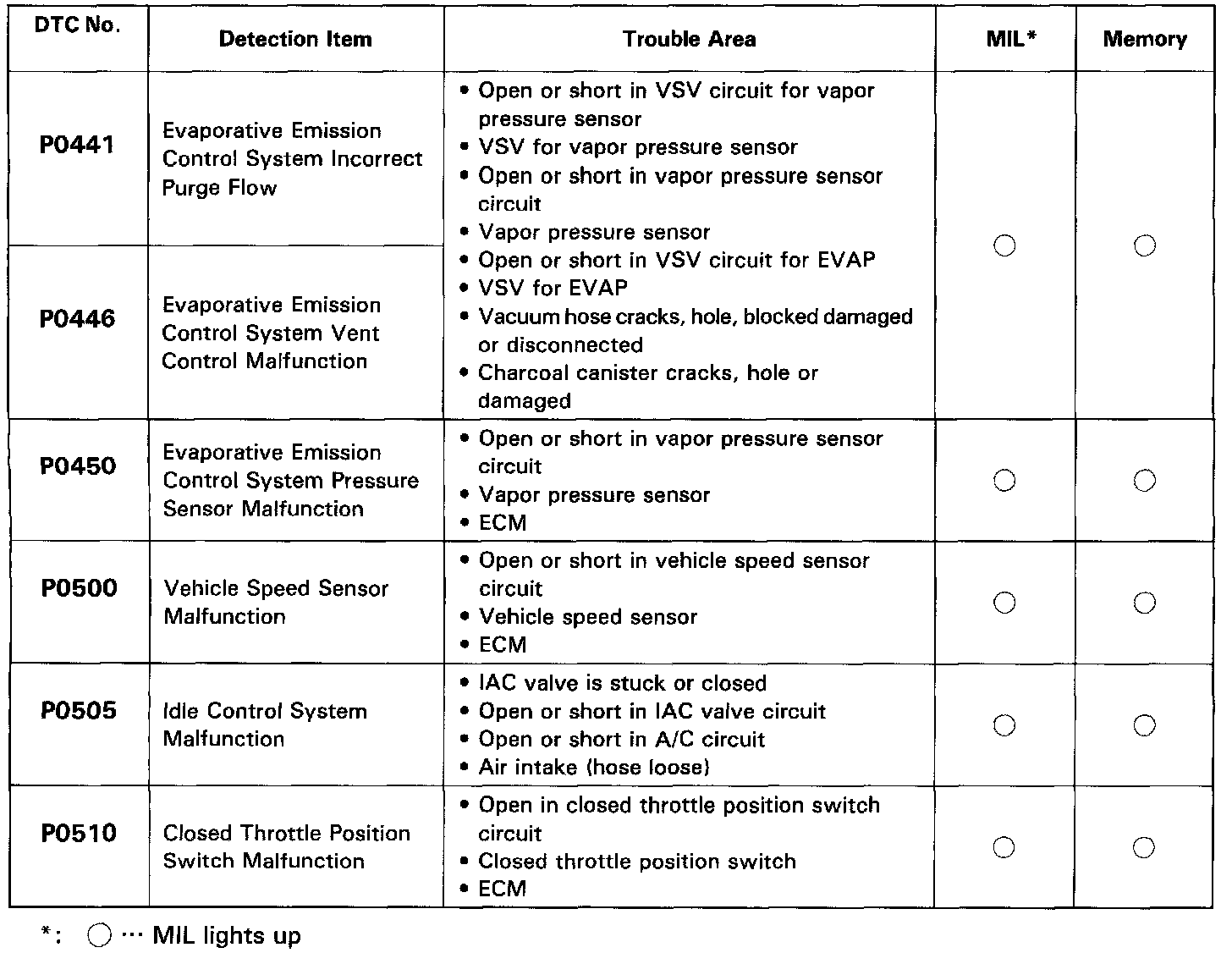

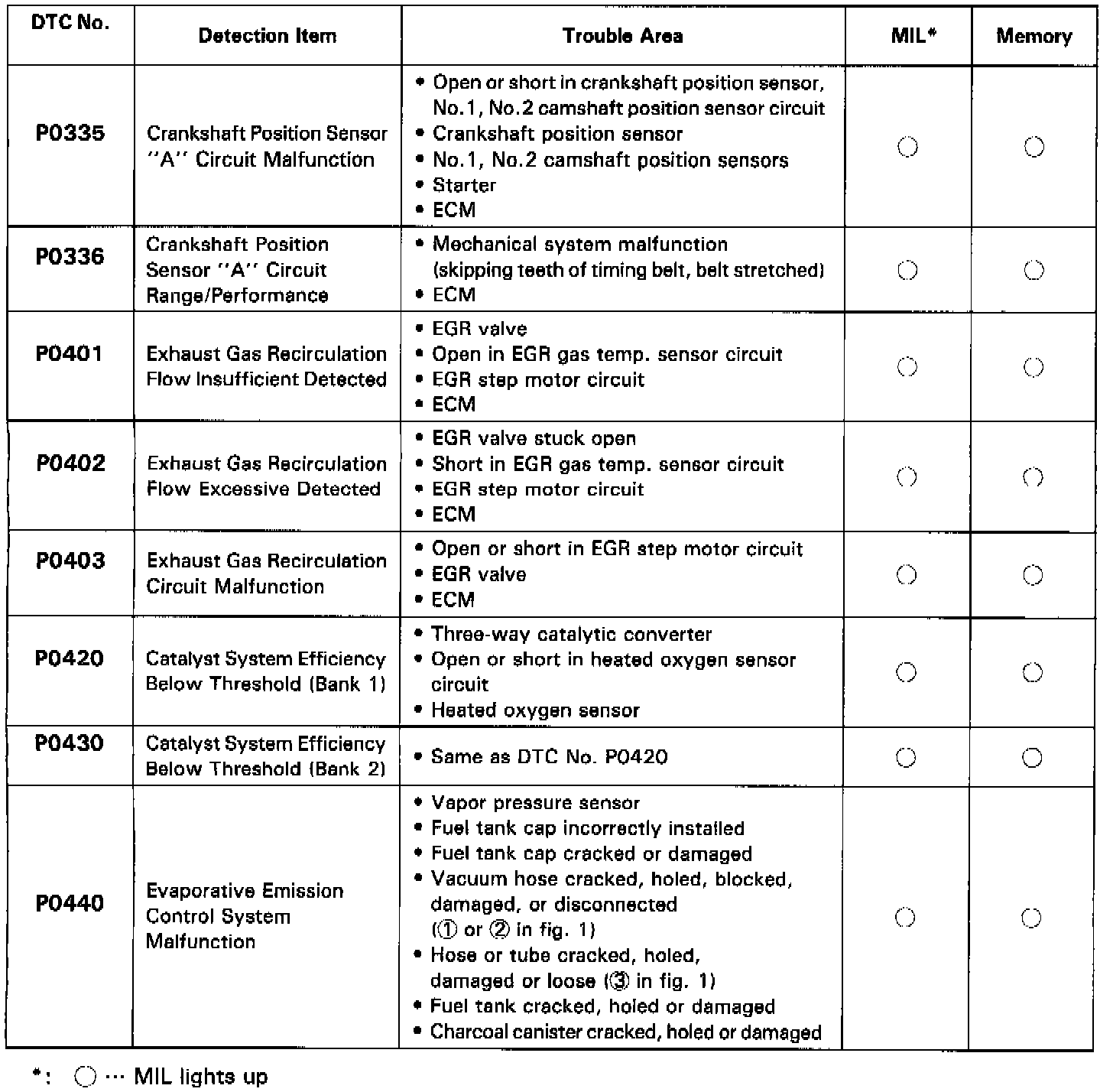

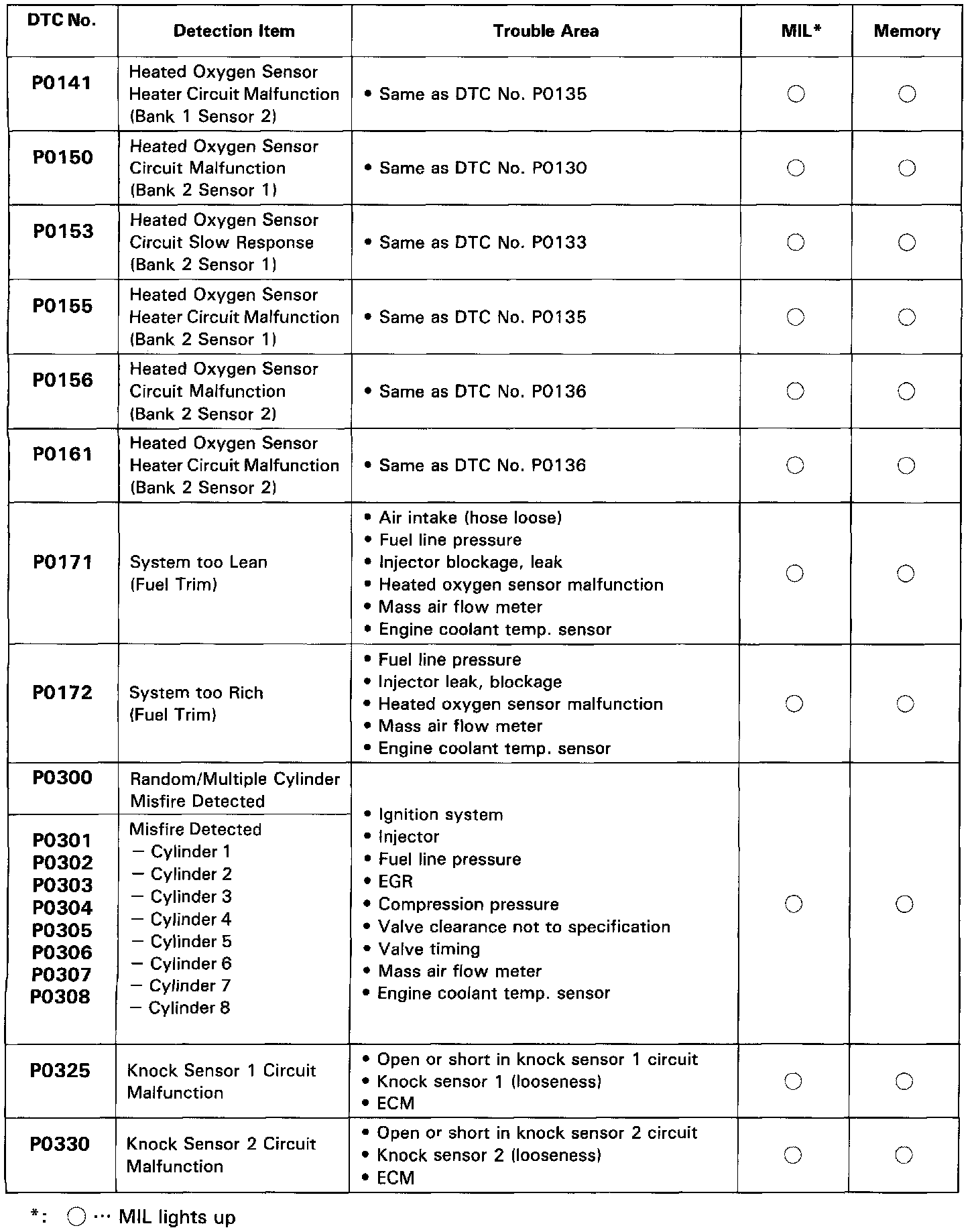

DTC CHART (SAE Controlled)
