Throttle Valve Cable/Linkage: Adjustments

Inspect and Adjust Throttle Cable
1. Check that the accelerator pedal in fully released.
2. Check that the inner cable is not slack.

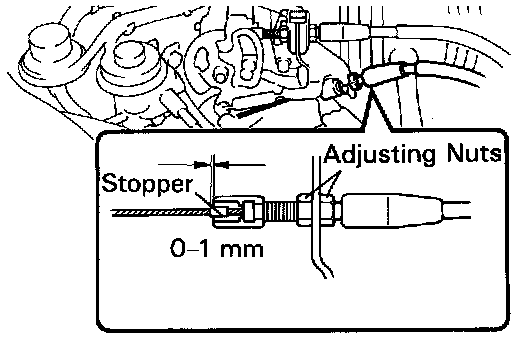

3. Measure the distance between the outer cable end and stopper on the cable.

Standard Distance
0-1 mm (0-0.04 inch)

If the distance is not standard, adjust the cable by the adjusting nuts.
