C2 Drum Speed Sensor Replacement

1. DISCONNECT C2 DRUM SPEED SENSOR CONNECTOR.

REMOVAL HINT: If it is difficult to disconnect the C2 drum speed sensor connector, first disconnecting the drum speed sensor from the transmission case RH side and then remove the connector.

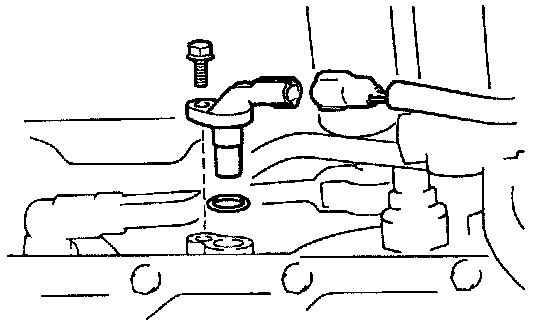

2. REMOVE C2 DRUM SPEED SENSOR.
- Remove the bolt and C2 drum speed sensor.
- Remove the O-ring from the C2 drum speed sensor.
3. INSTALL C2 DRUM SPEED SENSOR.
- Coat a new O-ring with ATF and install it to the C2 drum speed sensor.
- Install the C2 drum speed sensor to the transmission case RH side and torque the bolt.

Torque: 5.4 N.m (55 kgf.cm, 48 in..lb.)

4. CONNECT C2 DRUM SPEED SENSOR CONNECTOR.
