Home >> Lexus >> 1996 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Locations

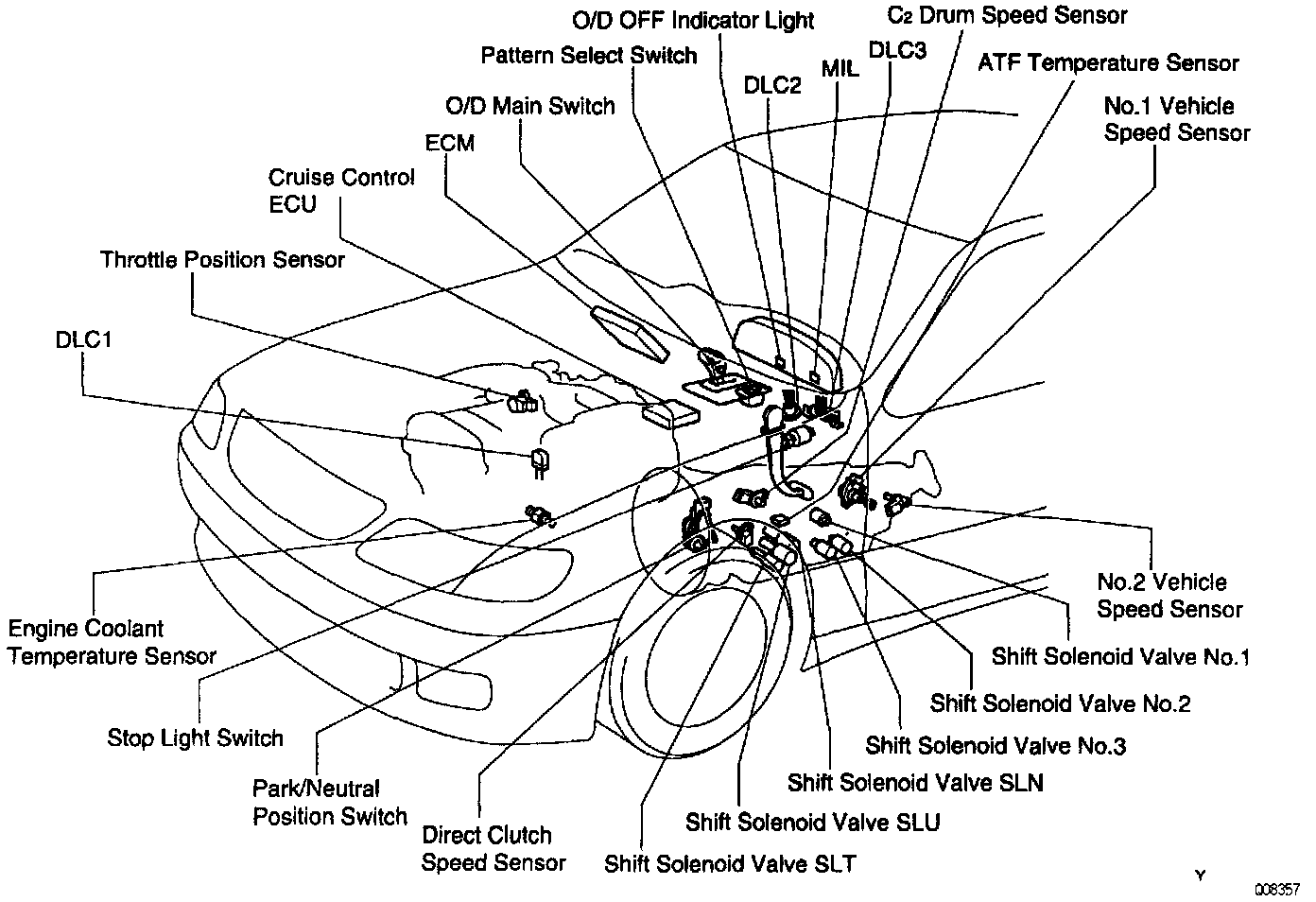

Automatic Transmission/Transaxle: Locations

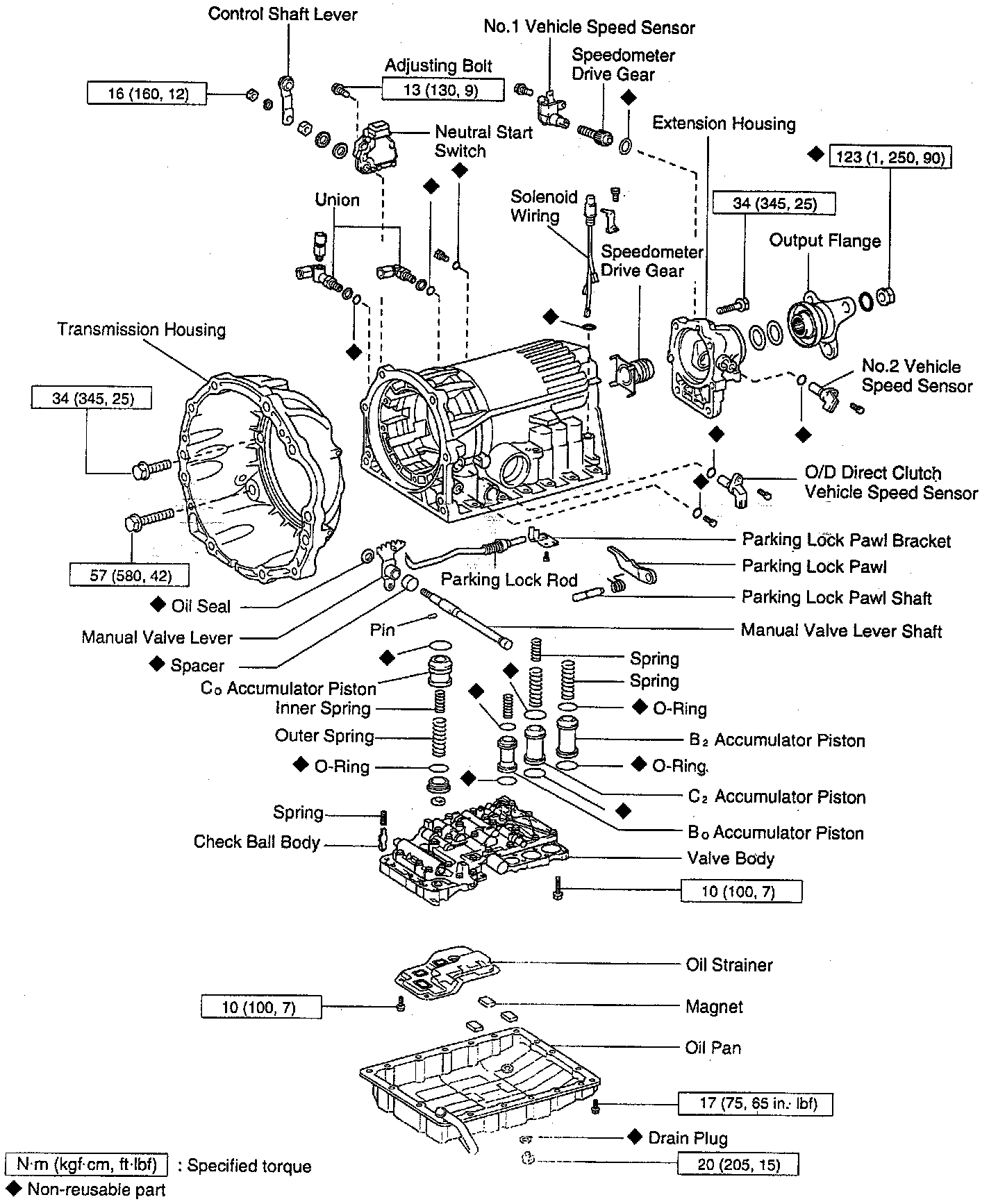

External Components And Accumulators:

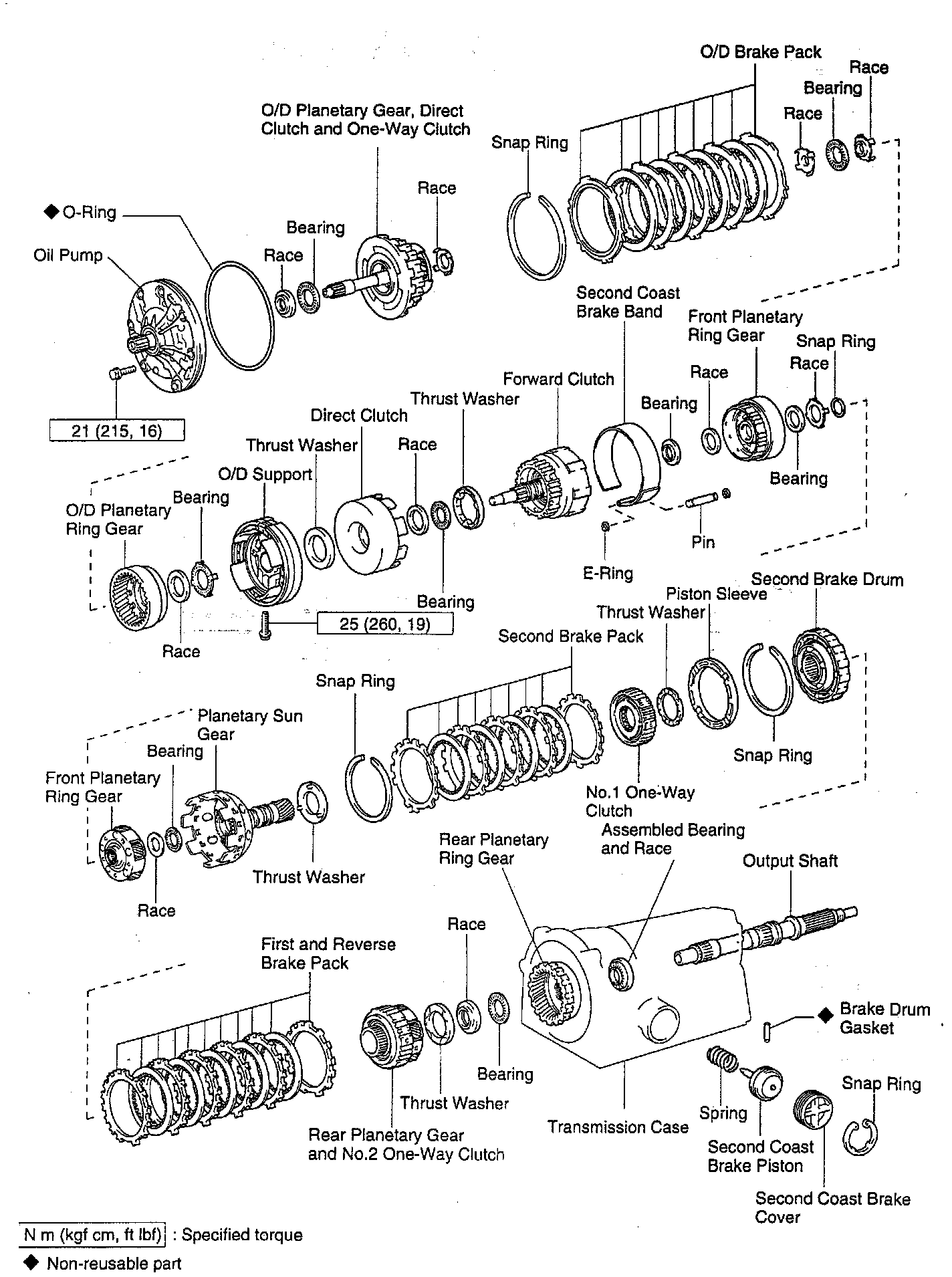

Clutch Packs And Oil Pump:

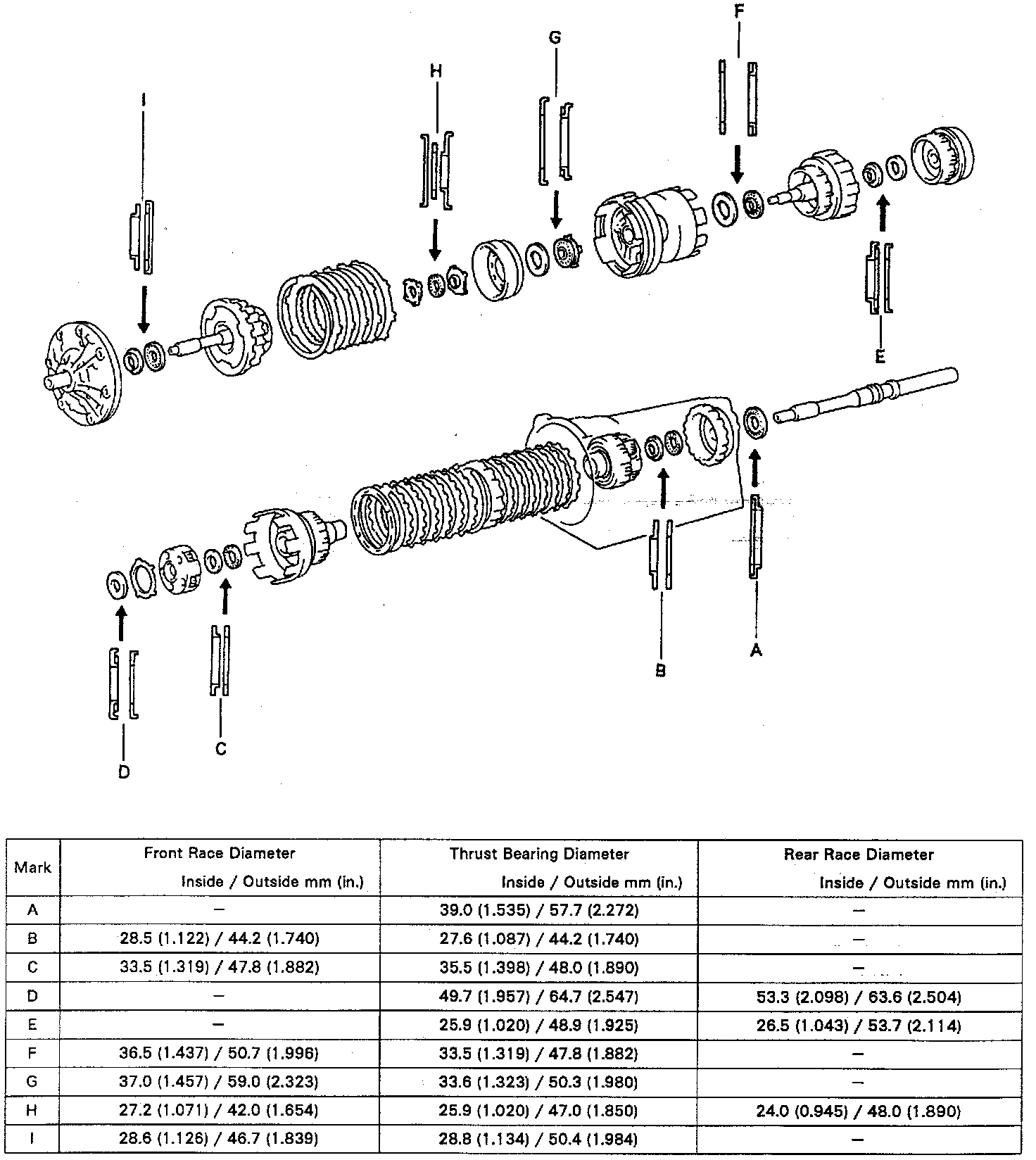

Bearings and Races, Installation Position and Direction:
