Extension Housing: Service and Repair

DISASSEMBLY

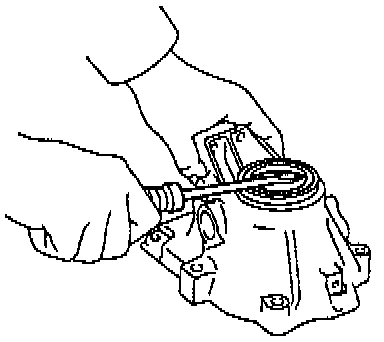

1. Remove oil seal from extension housing using a screwdriver.
2. Remove extension housing bearing.
a. Using a snap ring expander, remove the snap ring.

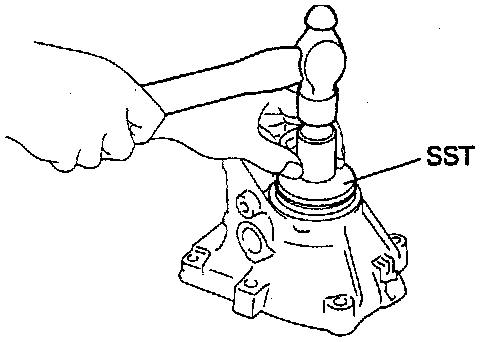

b. Using Special Service Tool (SST) 09350-12010 or equivalent, drive out the bearing.

ASSEMBLY





1. Install extension housing bearing.

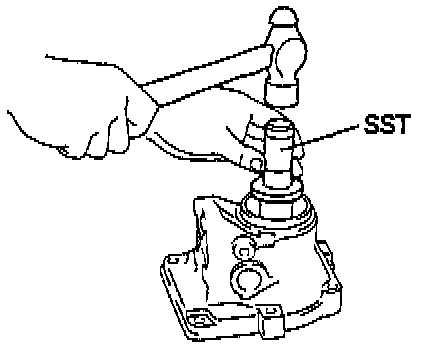

a. Using SST 09350-30020 (09350-32140), drive in the bearing.





b. Using a snap ring expander, install the snap ring.





2. Install new oil seal to extension housing using SST 09325-40010.
