Second Coast Brake

NOTE: For removal and installation procedures refer to "Automatic Transmission/Transaxle, Service and Repair."

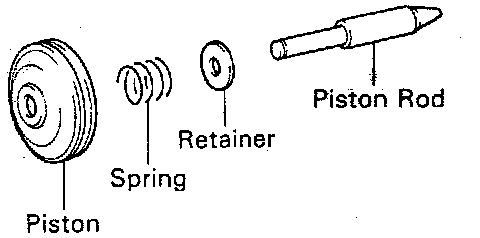

Component View

DISASSEMBLY





1. Remove second coast brake piston oil seal ring.





2. Remove second coast brake piston rod.
a. Firmly hold down the piston, then compress the compression spring.
b. Remove the E-ring.
c. Remove the compression spring, retainer and piston rod.

INSPECTION





Inspect brake band.

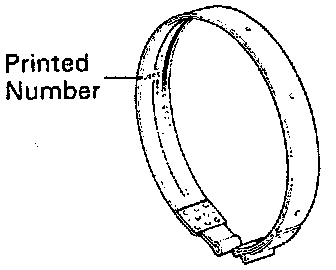

If the lining of the brake band is peeling off, or discolored, or even if parts of the printed numbers are defaced, replace the brake band.

ASSEMBLY





1. Select piston rod.
If the band is OK with piston rod stroke not within the standard value, select a new piston rod.

HINT: There are 5 different piston rod lengths.

Piston Rod Length:
70.7 mm (2.783 inch)
71.4 mm (2.811 inch)
72.2 mm (2.843 inch)
72.9 mm (2.870 inch)





2. Assemble second coast-brake piston.
a. Install the retainer, compression spring and piston to the piston rod.
b. Firmly hold down the piston, then compress the compression spring.
c. Install the E-ring.





3. Install second coast brake piston oil seal ring.
a. Coat the oil seal ring with ATF.
b. Install the oil seal ring to the piston groove, then snug it down by squeezing its ends together.

NOTICE: Do not spread the ring ends more than necessary.
