Case: Testing and Inspection

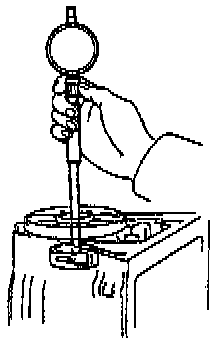

Inspect transmission case bushing using a cylinder gauge. Measure the inside diameter of the transmission case rear bushing.
- Maximum Inside Diameter: 38.18 mm (1.5031 inch)
If the inside diameter is greater than the maximum, replace the transmission case.
