Connector Joining Wire Harness and Wire Harness

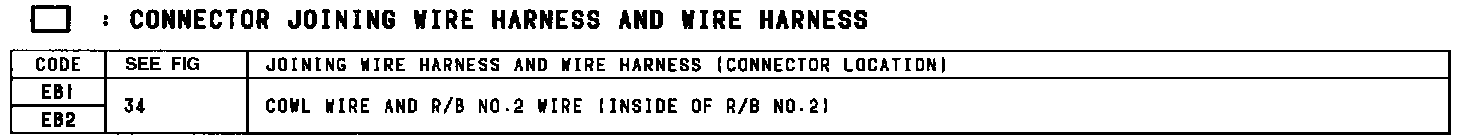

Connector Joining Wire Harness And Wire Harness:




CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS

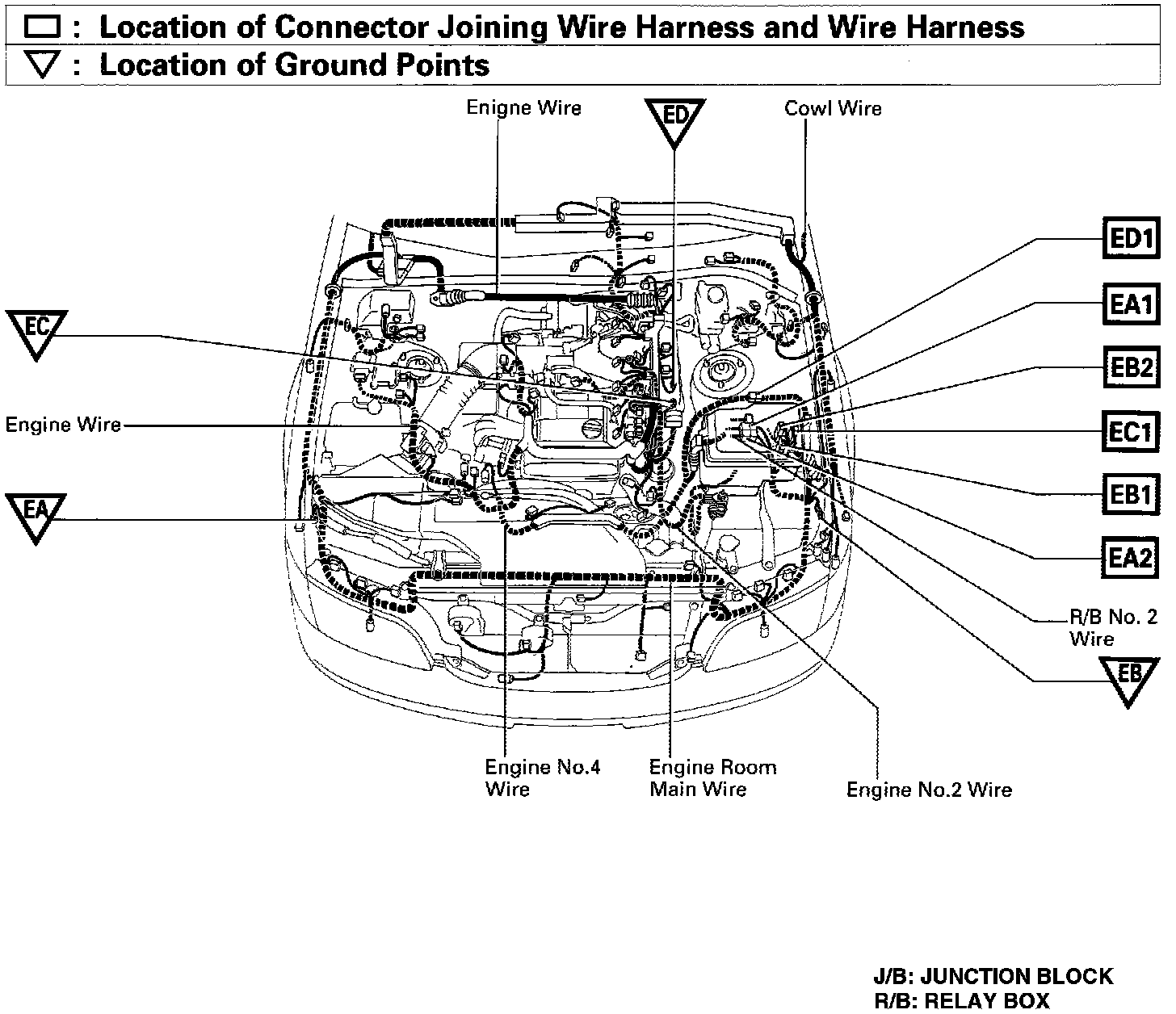

Location Of Connector Joining Wire Harness And Wire Harness, Ground Point (Fig 34):




FIG 34
