Wheel Speed Sensor: Service and Repair

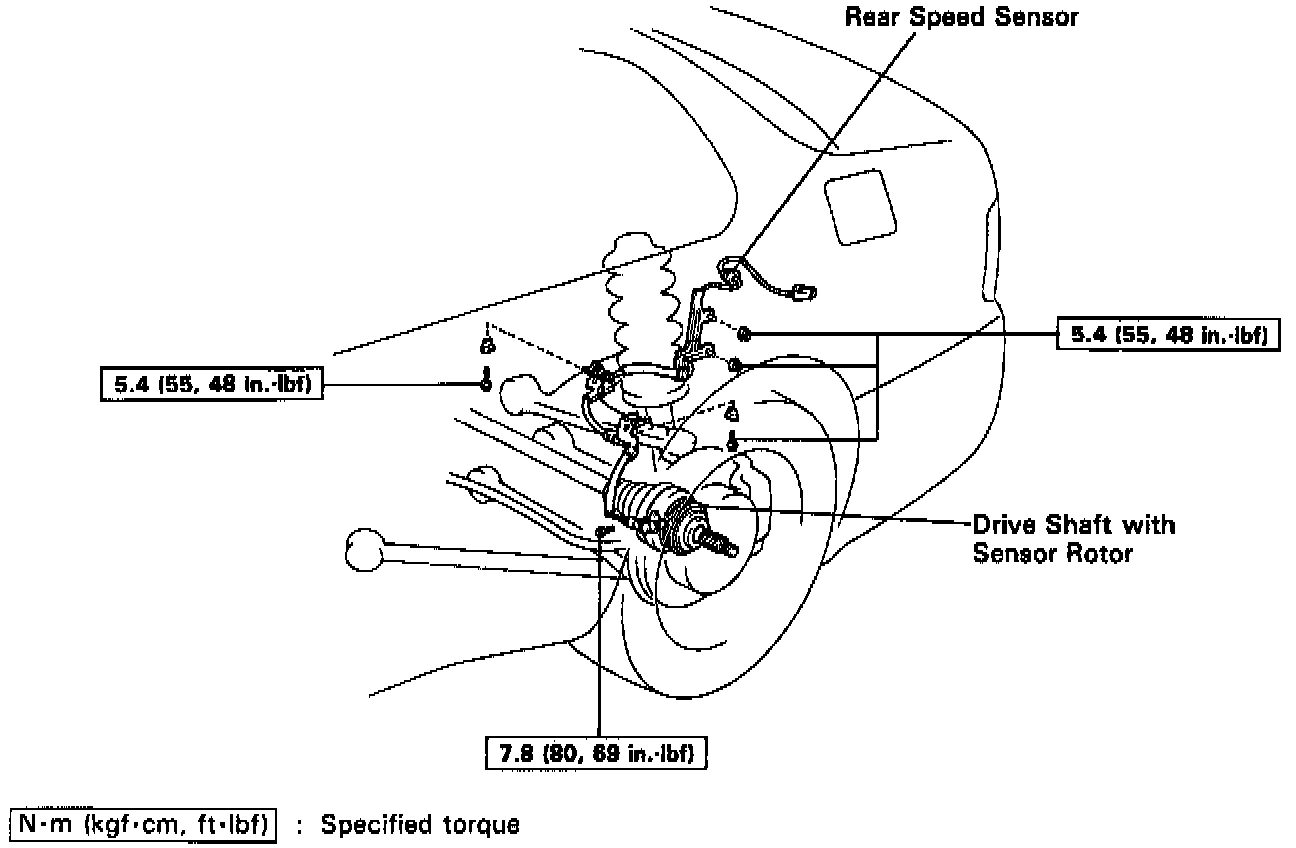

Rear Speed Sensor Components:

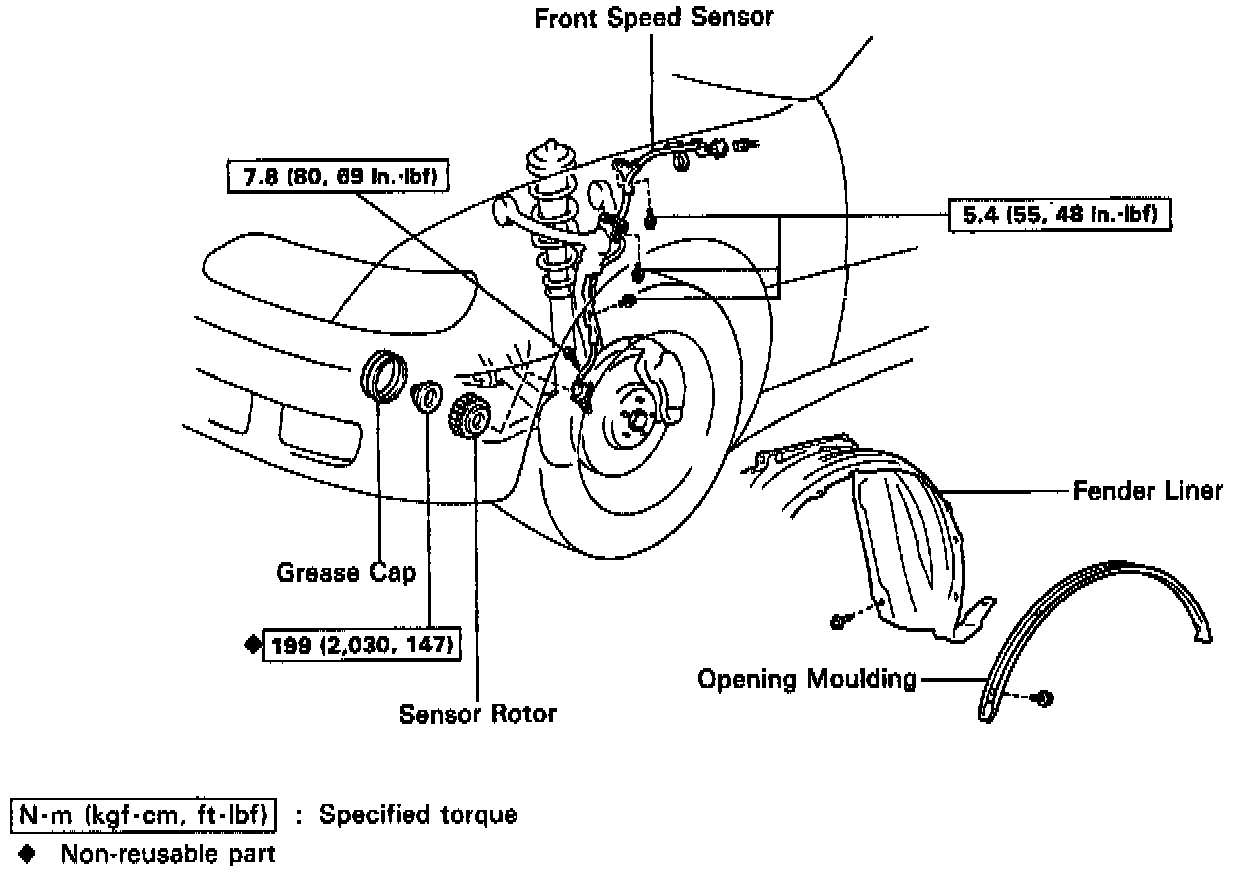

Refer to the above figures when replacing wheel speed sensors.
