Restraints and Safety Systems
>>
Locations
>>
Connector Locations
Connector Locations

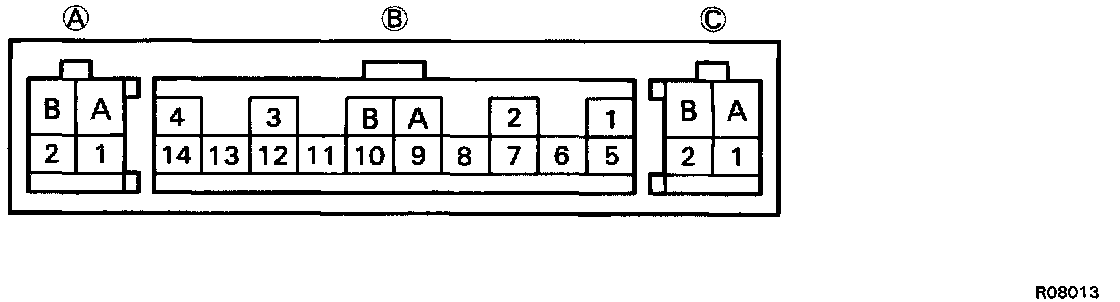

CENTER AIRBAG SENSOR ASSEMBLY CONNECTORS-ECU PINOUT VALUES Terminal View:

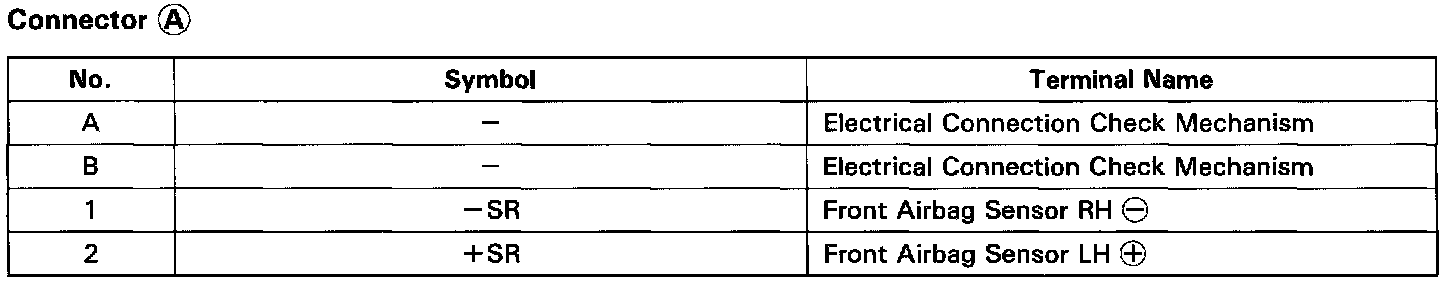

CONNECTOR A AREA:

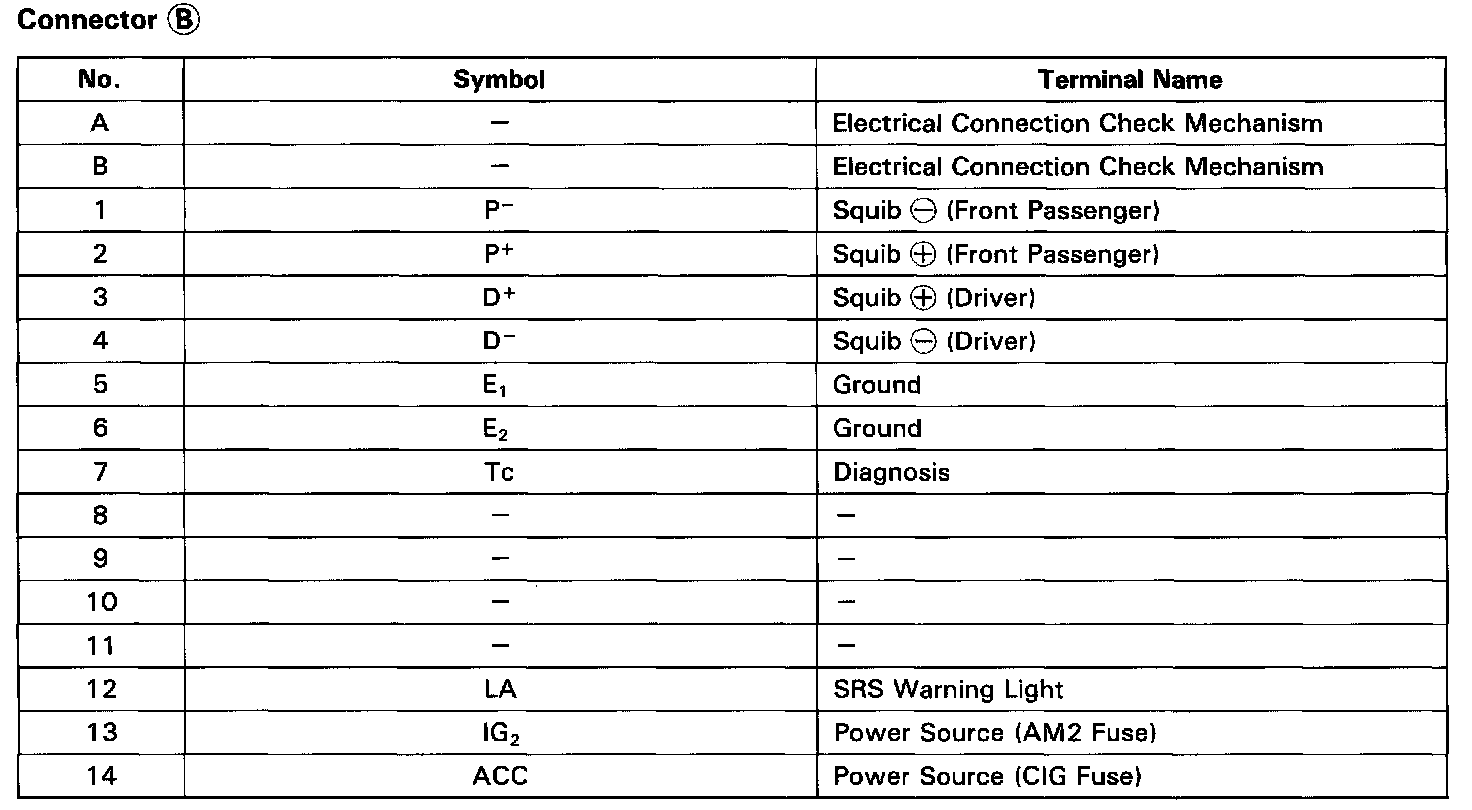

CONNECTOR B AREA:

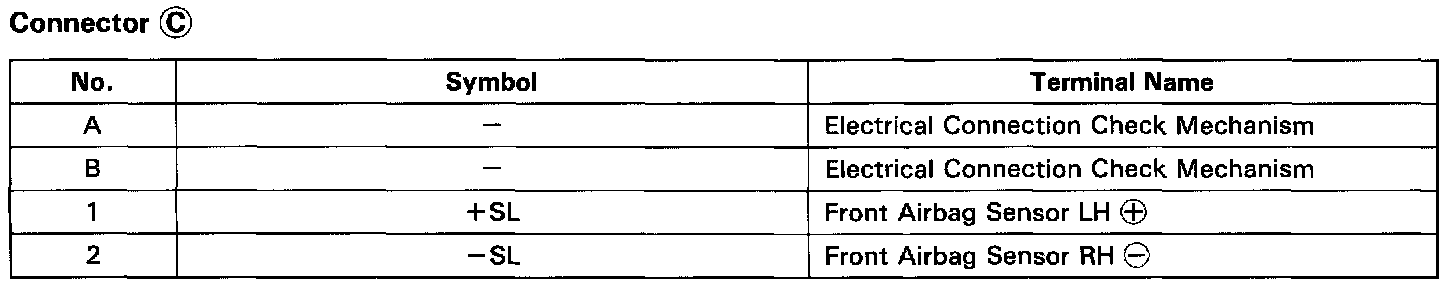

CONNECTOR C AREA:
