Symptom Diagnostic Procedures

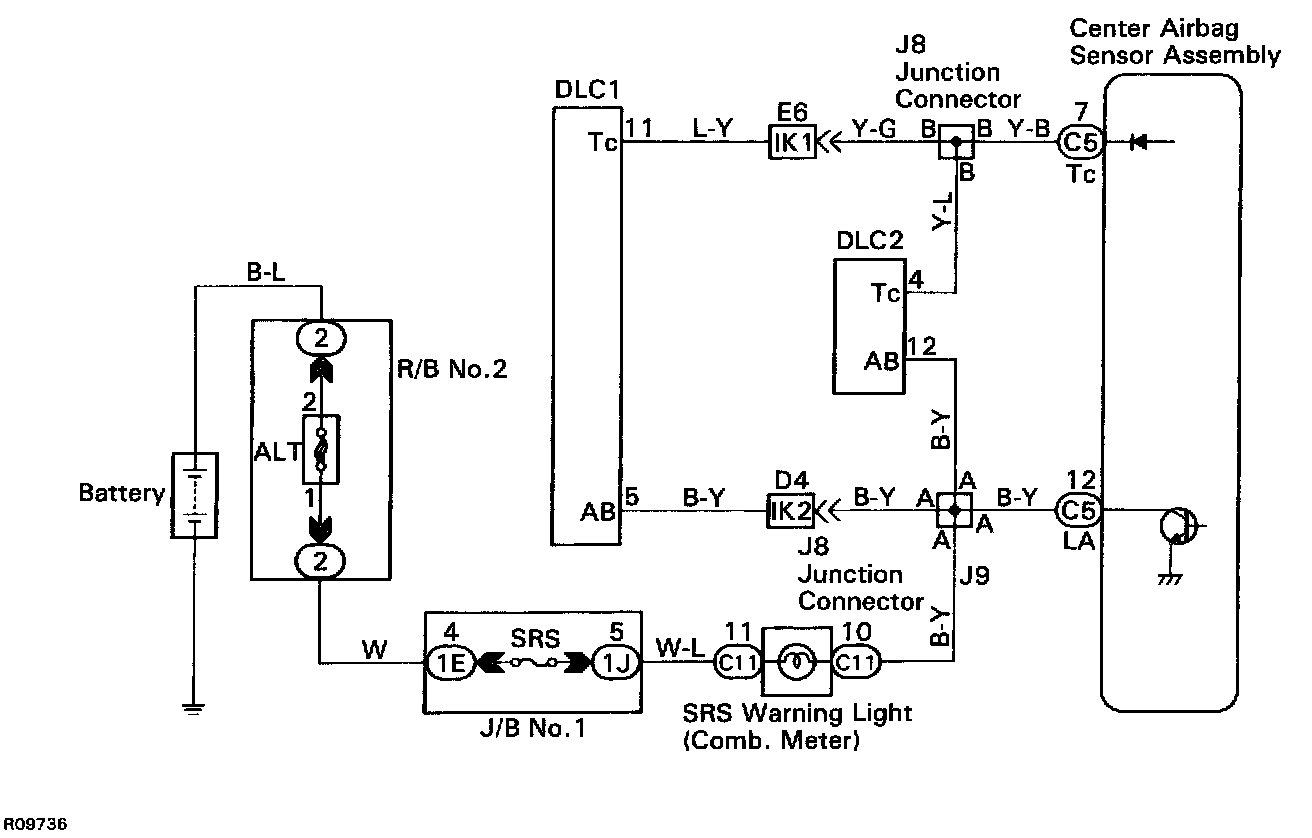

WIRING DIAGRAM:

CIRCUIT DESCRIPTION
The SRS warning light is located on the combination meter.
When the SRS is normal, the SRS warning light lights up for approx. 6 seconds after the ignition switch is turned from LOCK position to ACC or ON position, and then turns off automatically. If there is a malfunction in the SRS, the SRS warning light lights up to inform the driver of the abnormality.
When terminals Tc and E1 of the check connector are connected, the DTC is displayed by the blinking of the SRS warning light.


INSPECTION PROCEDURE

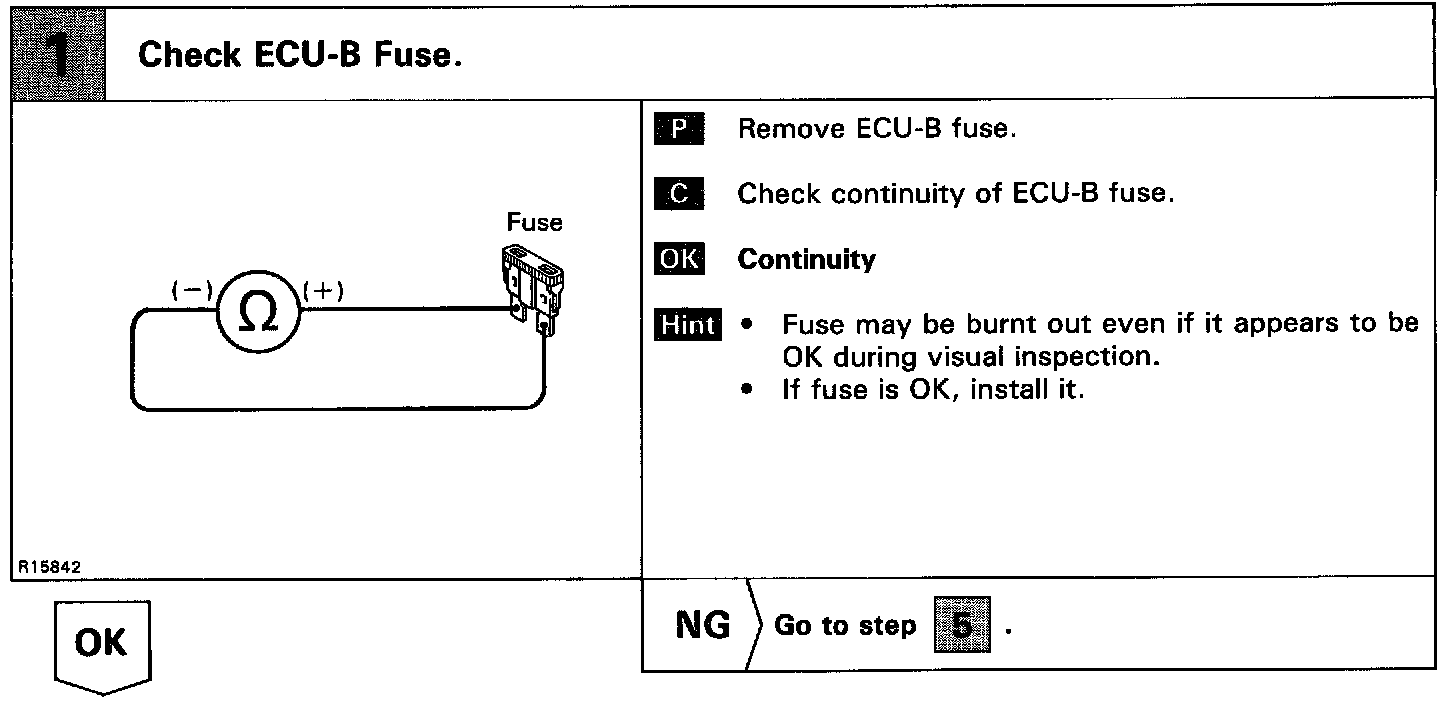

STEP 1:

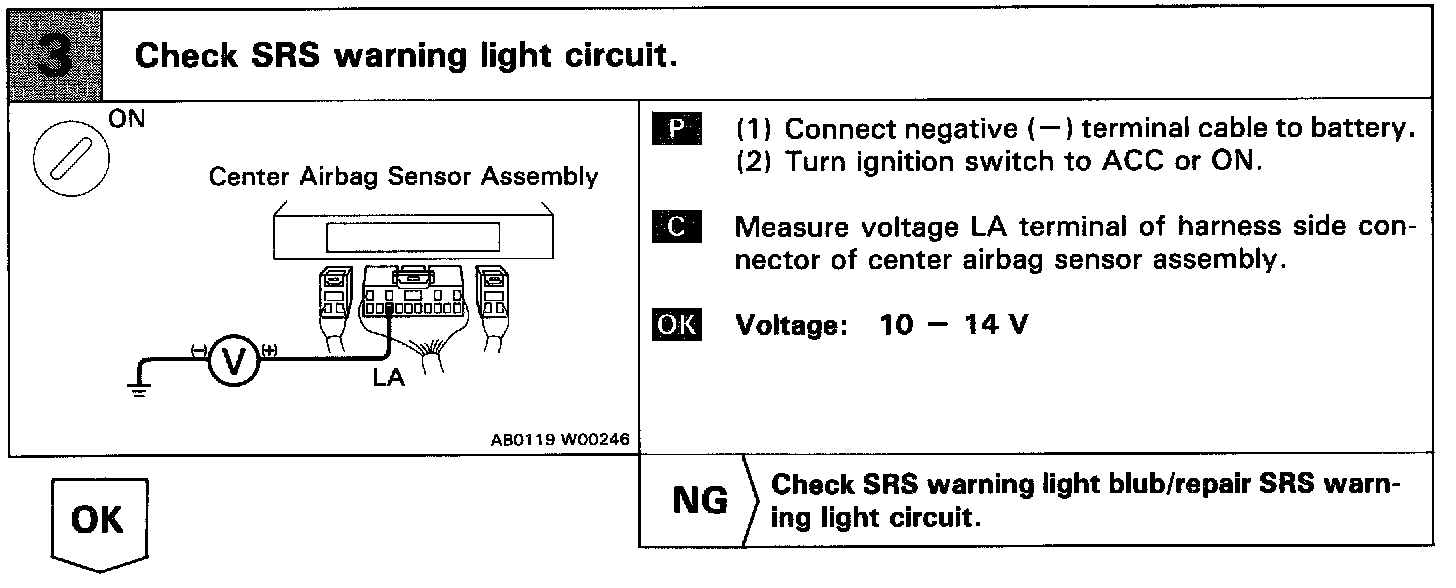

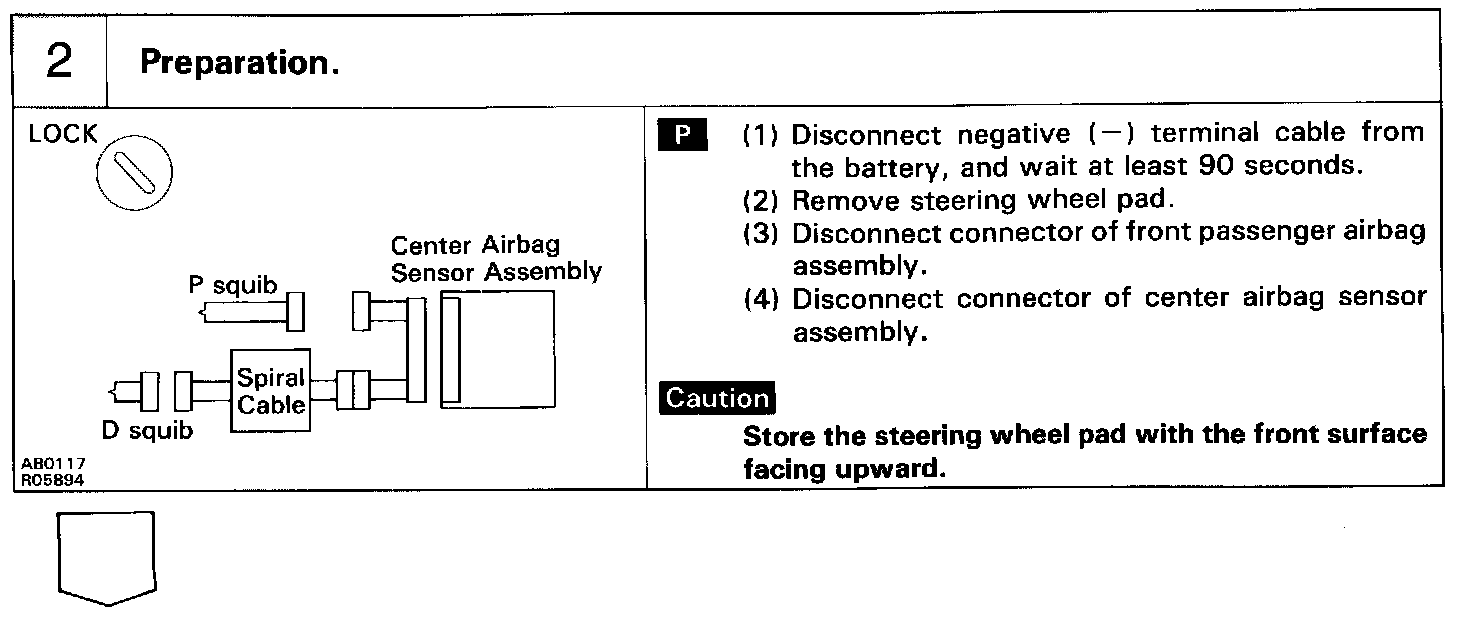

STEP 2:

STEP 4:

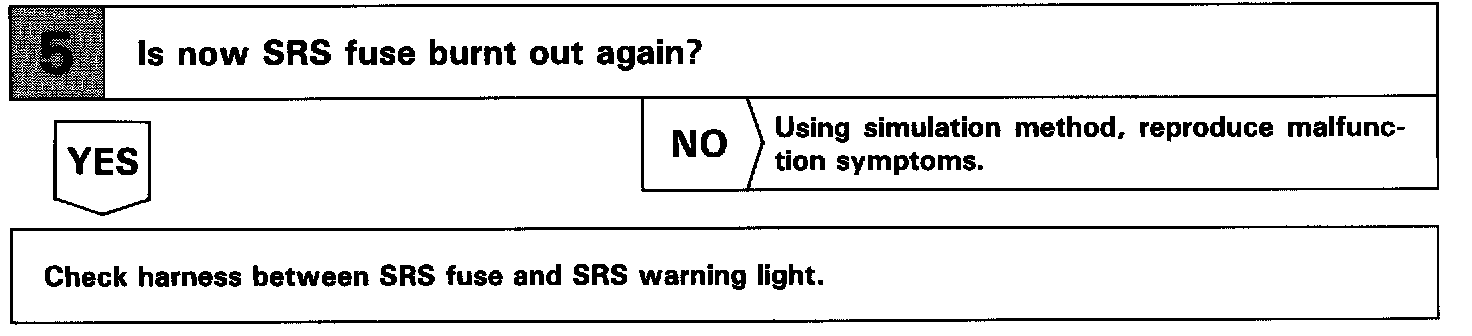

STEP 5:
