TC Terminal Circuit

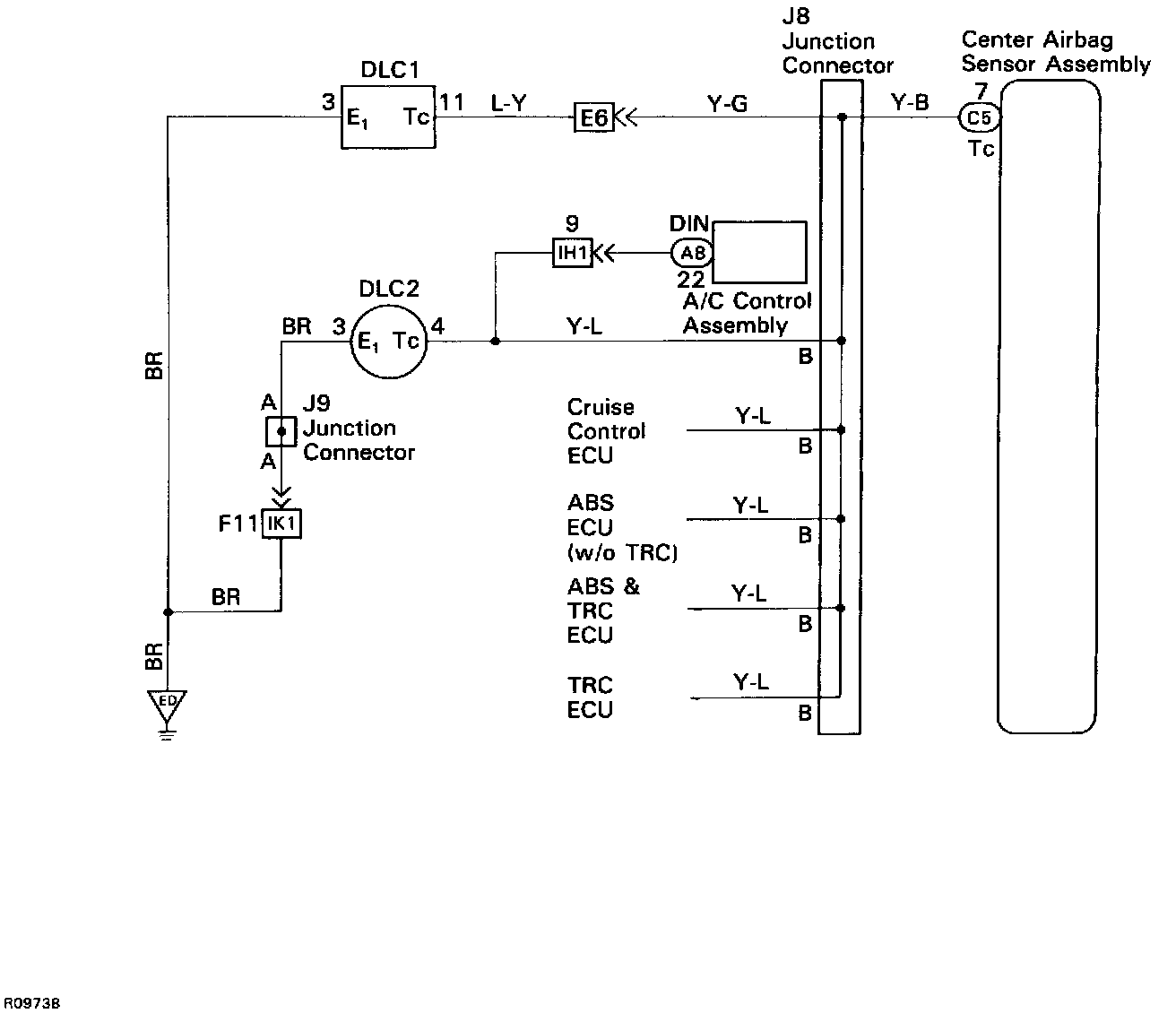

WIRING DIAGRAM:

CIRCUIT DESCRIPTION
By connecting terminals Tc and E1 of the DLC1, the center airbag sensor assembly is set in the DTC output mode. The DTCs are displayed by the blinking of the SRS warning light.

INSPECTION PROCEDURE

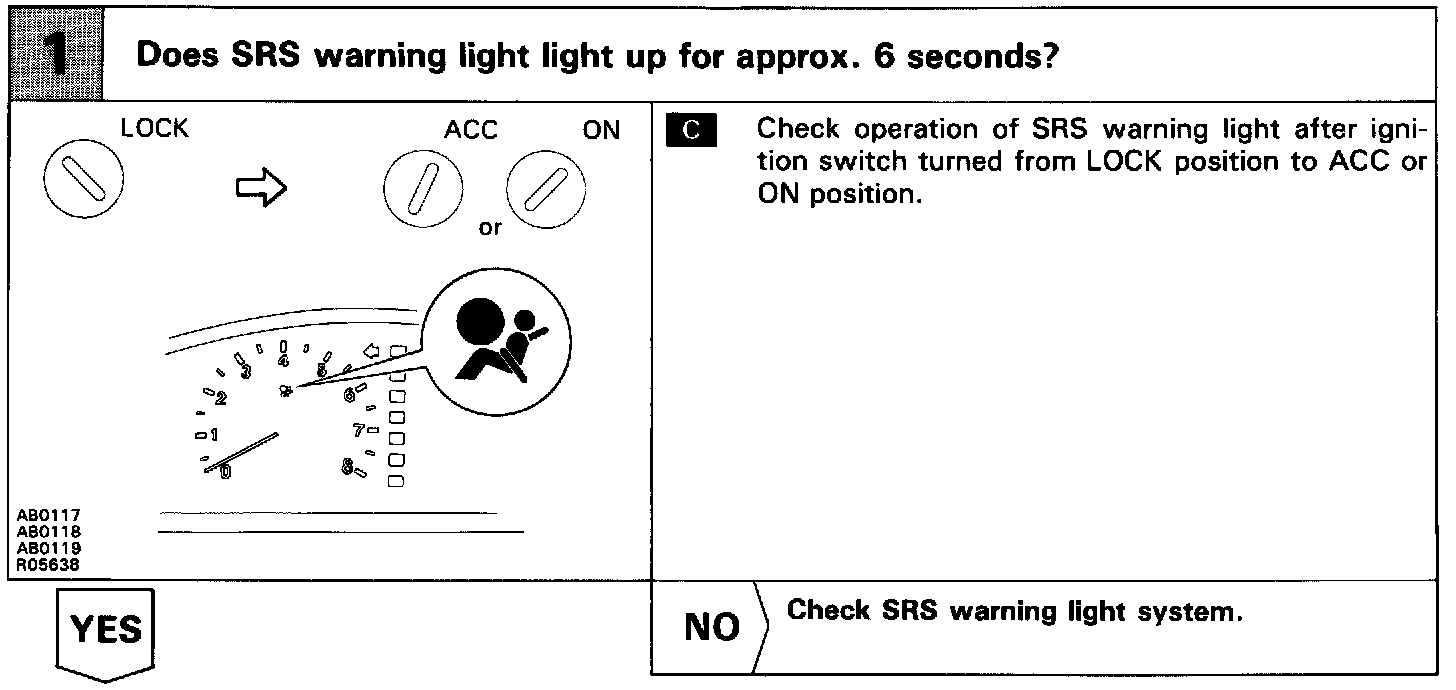

STEP 1:

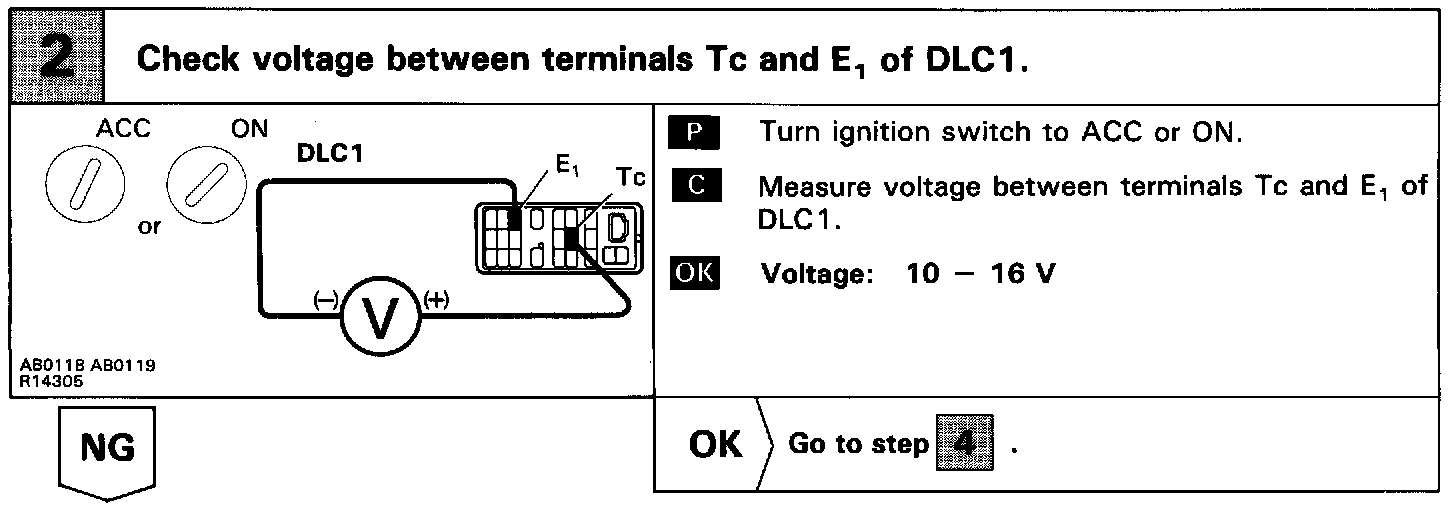

STEP 2:

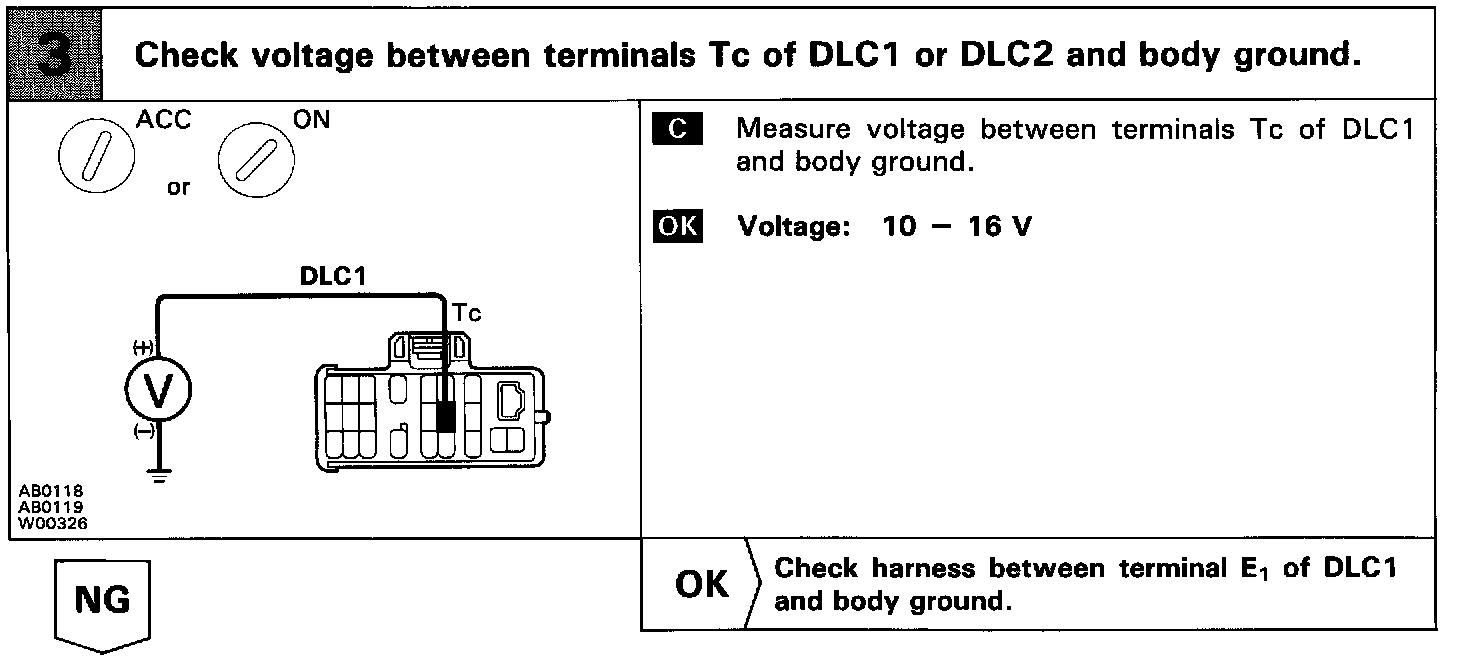

STEP 3:

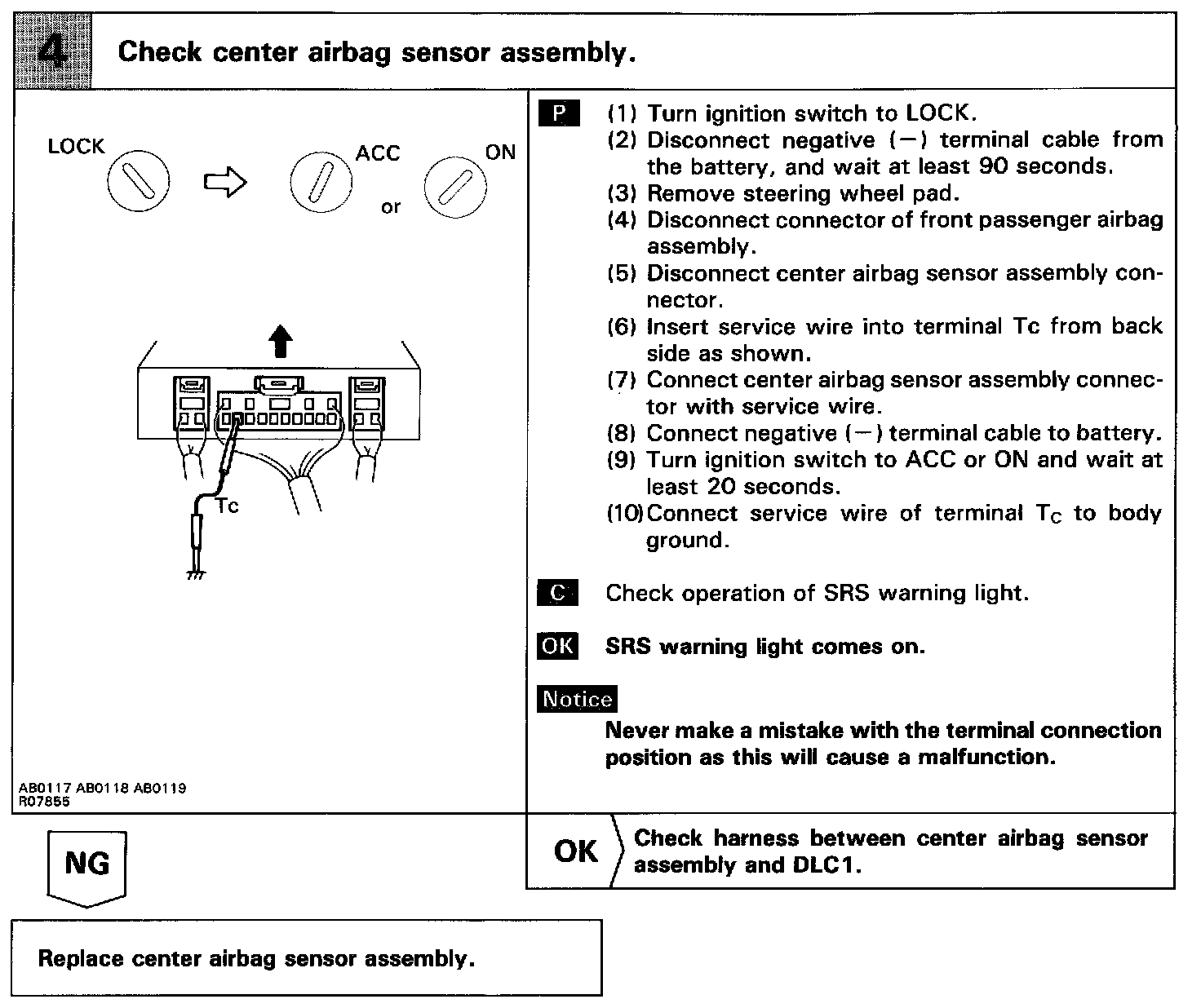

STEP 4:

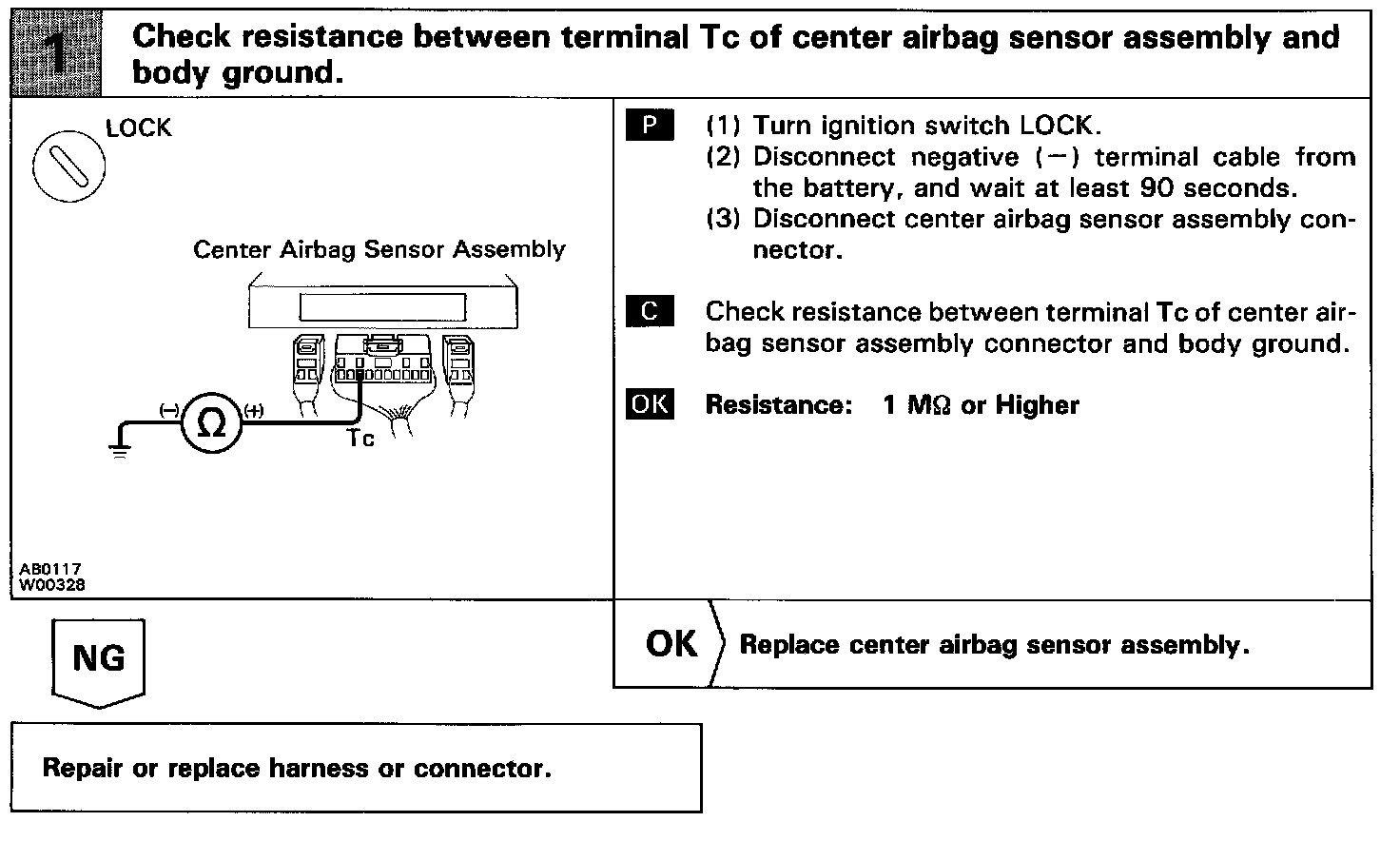

HINT:
If the diagnostic trouble code is not displayed, perform the following troubleshooting:
